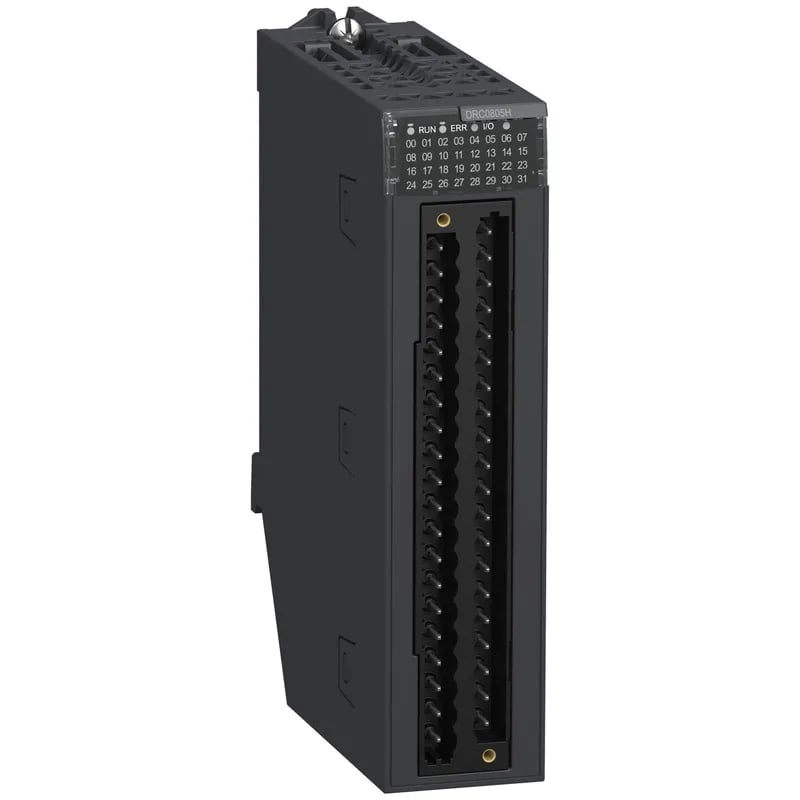

Schneider Electric BMXDRC0805H

Schneider BMXDRC0805H Modicon X80 Relay Output, Severe Env

MPNBMXDRC0805H
Active

Schneider Electric Modicon X80 BMXDRC0805H relay output module, 8 outputs, 5...150 V DC / 19...264 V AC, conformally coated for severe environments.

$627.38 – $1,424.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXDRC0805H key specifications
ParameterValue
Protection typeExternal short-circuit protection External overload protection External overvoltage protection, inductive AC network External overvoltage protection, inductive DC network
Range of productModicon X80
Product or component typeRelay discrete output module
Discrete output voltage5...125 V 5...150 V DC 24...240 V 19...264 V AC
Minimum switching current10 mA 5 V DC
Typical current consumption40 mA at 3.3 V DC 101 mA at 24 V DC
Output short-circuit protectionUse 1 fast blow fuse per channel or group of channel
[Ith] conventional free air thermal current4 A 40 °C 3 A 50 °C 2 A 60 °C 1.2 A 70 °C
Sensor power supply5...150 V 19...264 V
Power dissipation in3.6 W
Network frequency50/60 Hz
Network frequency limits47...63 Hz

All specifications

BMXDRC0805H additional specifications
ParameterValue
IP degree of protectionIP20
Electrical connection40 ways terminal block
Response time on output<= 13 ms deactivation
Shock resistance30 gn
Relative humidity0...95 % at -25...70 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn
MTBF reliability2650000 H
Electrical durabilityAC-12: 200000 cycles at 48 VA 24 V at -25...60 °C AC-12: 200000 cycles at 28.8 VA 24 V at 60...70 °C AC-12: 300000 cycles at 48 VA 48 V at -25...60 °C AC-12: 300000 cycles at 28.8 VA 48 V at 60...70 °C AC-12: 150000 cycles at 96 VA 48 V at -25...60 °C AC-12: 150000 cycles at 57.6 VA 48 V at 60...70 °C AC-12: 300000 cycles at 110 VA 100...120 V at -25...60 °C AC-12: 300000 cycles at 66 VA 100...120 V at 60...70 °C AC-12: 150000 cycles at 220 VA 100...120 V at -25...60 °C AC-12: 150000 cycles at 132 VA 100...120 V at 60...70 °C AC-12: 300000 cycles at 220 VA 200...250 V at -25...60 °C AC-12: 300000 cycles at 132 VA 200...250 V at 60...70 °C AC-12: 150000 cycles at 500 VA 200...250 V at -25...60 °C AC-12: 150000 cycles at 300 VA 200...250 V at 60...70 °C AC-15: 700000 cycles at 10 VA 24 V at -25...60 °C (load factor 0.4) AC-15: 700000 cycles at 6 VA 24 V at 60...70 °C (load factor 0.4) AC-15: 500000 cycles at 24 VA 24 V at -25...60 °C (load factor 0.4) AC-15: 500000 cycles at 14.4 VA 24 V at 60...70 °C (load factor 0.4) AC-15: 200000 cycles at 48 VA 24 V at -25...60 °C (load factor 0.4) AC-15: 200000 cycles at 28.8 VA 24 V at 60...70 °C (load factor 0.4) AC-15: 700000 cycles at 10 VA 48 V at -25...60 °C (load factor 0.4) AC-15: 700000 cycles at 6 VA 48 V at 60...70 °C (load factor 0.4) AC-15: 500000 cycles at 24 VA 48 V at -25...60 °C (load factor 0.4) AC-15: 500000 cycles at 14.4 VA 48 V at 60...70 °C (load factor 0.4) AC-15: 300000 cycles at 48 VA 48 V at -25...60 °C (load factor 0.4) AC-15: 300000 cycles at 28.8 VA 48 V at 60...70 °C (load factor 0.4) AC-15: 100000 cycles at 96 VA 48 V at -25...60 °C (load factor 0.4) AC-15: 100000 cycles at 57.6 VA 48 V at 60...70 °C (load factor 0.4) AC-15: 1000000 cycles at 10 VA 100...120 V at -25...60 °C (load factor 0.4) AC-15: 1000000 cycles at 6 VA 100...120 V at 60...70 °C (load factor 0.4) AC-15: 300000 cycles at 50 VA 100...120 V at -25...60 °C (load factor 0.4) AC-15: 300000 cycles at 30 VA 100...120 V at 60...70 °C (load factor 0.4) AC-15: 200000 cycles at 110 VA 100...120 V at -25...60 °C (load factor 0.4) AC-15: 200000 cycles at 66 VA 100...120 V at 60...70 °C (load factor 0.4) AC-15: 70000 cycles at 220 VA 100...120 V at -25...60 °C (load factor 0.4) AC-15: 70000 cycles at 132 VA 100...120 V at 60...70 °C (load factor 0.4) AC-15: 1000000 cycles at 10 VA 200...250 V at -25...60 °C (load factor 0.4) AC-15: 1000000 cycles at 6 VA 200...250 V at 60...70 °C (load factor 0.4) AC-15: 500000 cycles at 50 VA 200...250 V at -25...60 °C (load factor 0.4) AC-15: 500000 cycles at 30 VA 200...250 V at 60...70 °C (load factor 0.4) AC-15: 200000 cycles at 110 VA 200...250 V at -25...60 °C (load factor 0.4) AC-15: 200000 cycles at 66 VA 200...250 V at 60...70 °C (load factor 0.4) AC-15: 150000 cycles at 220 VA 200...250 V at -25...60 °C (load factor 0.4) AC-15: 150000 cycles at 132 VA 200...250 V at 60...70 °C (load factor 0.4) DC-12: 200000 cycles at 24 W 24 V at -25...60 °C DC-12: 200000 cycles at 14.4 W 24 V at 60...70 °C DC-12: 150000 cycles at 48 W 24 V at -25...60 °C DC-12: 150000 cycles at 28.8 W 24 V at 60...70 °C DC-12: 150000 cycles at 40 W 48...60 V at -25...60 °C DC-12: 150000 cycles at 24 W 48...60 V at 60...70 °C DC-12: 100000 cycles at 45 W 100...125 V at -25...60 °C DC-12: 60000 cycles at 45 W 100...125 V at 60...70 °C DC-13: 100000 cycles at 10 W 24 V at -25...60 °C DC-13: 100000 cycles at 6 W 24 V at 60...70 °C DC-13: 60000 cycles at 24 W 24 V at -25...60 °C DC-13: 60000 cycles at 14.4 W 24 V at 60...70 °C DC-13: 40000 cycles at 48 W 24 V at -25...60 °C DC-13: 40000 cycles at 28.8 W 24 V at 60...70 °C DC-13: 40000 cycles at 40 W 48...60 V at -25...60 °C DC-13: 40000 cycles at 24 W 48...60 V at 60...70 °C DC-13: 100000 cycles at 15 W 100...125 V at -25...60 °C DC-13: 40000 cycles at 15 W 100...125 V at 60...70 °C
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Dielectric strength1780 V AC at 50/60 Hz 1 min
Protective treatmentConformal coating
Discrete output logicPositive or negative
Insulation resistance> 10 MOhm 500 V DC
Discrete output number8 conforming to IEC 61131-2
Output overload protectionUse 1 fast blow fuse per channel or group of channel
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
Product specific applicationFor severe environments
Output overvoltage protectionUse discharge diode on each output DC Use RC circuit on each output AC Use ZNO surge limiter on each output AC
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

The BMXDRC0805H is a Modicon X80 relay output module with 8 outputs rated for 5...150 V DC and 19...264 V AC. It carries external short-circuit, overload, and overvoltage protection for both AC and DC networks — meaning fewer external fuses or snubbers per channel. Conformal coating and a -25...70 °C operating range qualify it for severe environments where humidity, corrosive gas, or dust would kill a standard module.

Protection and diagnostics at the channel level

Each of the 8 relay outputs includes channel diagnostic LEDs (green per channel, red ERR, red I/O) alongside a green RUN LED. The protection scheme — short-circuit per fuse recommendation, overload, and overvoltage — is the same footprint whether you switch AC or DC loads. For AC outputs use a RC snubber or ZNO surge limiter; for DC outputs use a flyback diode per the application note. The module's conventional free-air thermal current derates from 4 A at 40 °C to 1.2 A at 70 °C, so you size the load based on the highest panel ambient.

Frequently asked questions

What status LEDs are on the BMXDRC0805H?

One green RUN LED for module status, one green LED per channel for output state, and two red LEDs — one for ERR (module error) and one for I/O (channel diagnostic).

What protection does the BMXDRC0805H include?

External short-circuit protection (via fast-blow fuse per channel), external overload protection, and external overvoltage protection for both inductive AC and inductive DC networks. The module itself does not contain internal protection — it expects you to add fuses, RC snubbers, or flyback diodes per the manual.
