Overview

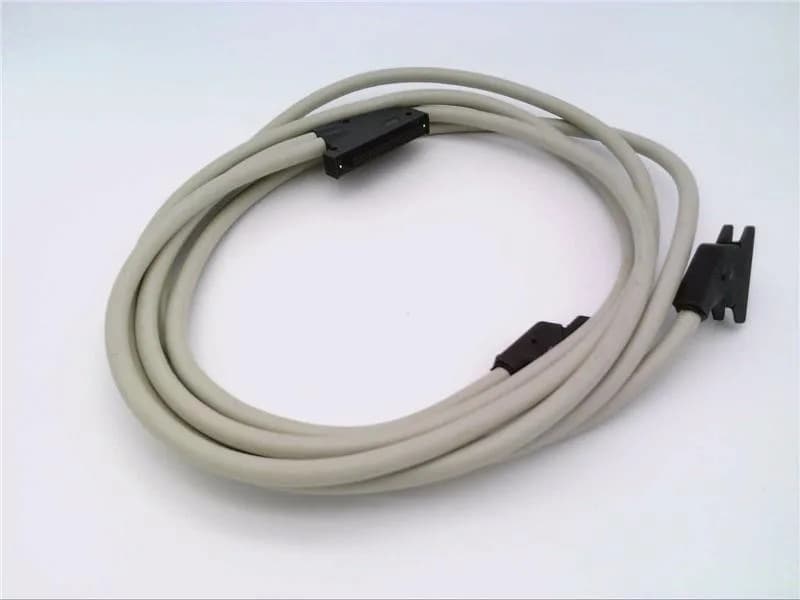

The BMXFCC203 is a preformed cordset in the Modicon X80 range, terminated with one 40-way connector on the module side and two HE10 connectors on the field side, running 2.0 m of 0.324 mm² wire. It is designed to connect a 40-way I/O module to a Telefast Advantys ABE7 sub-base, splitting the 40 signals across two HE10 headers.
Selection and comparison
Compared to the BMXFCC103 (1.0 m), the BMXFCC203 doubles the reach to 2.0 m, suiting panels where the sub-base sits further from the module rack. Where the BOM calls for a single HE10 output (20 signals), the BMXFCC101 with one HE10 connector is the correct choice; the BMXFCC203 carries two HE10 connectors for the full 40-signal path.
The BMXFCC203 is an active catalogue item, available through standard distribution channels with no end-of-life notice. It carries California Proposition 65 compliance marking and is listed as a Green Premium product, indicating Schneider's material disclosure and RoHS/REACH data are available.
