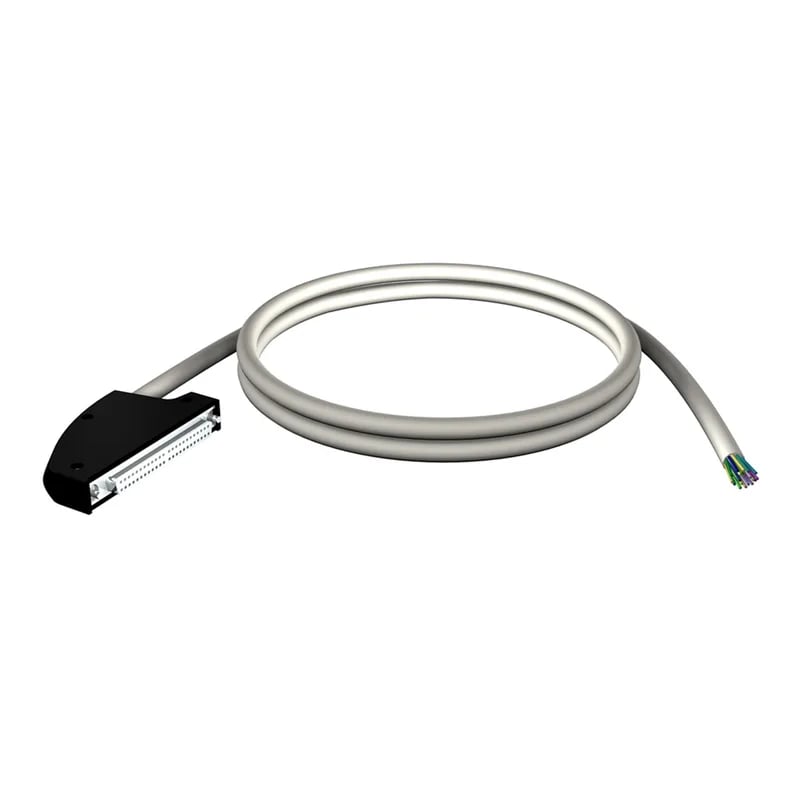

The BMXFCW1001 is a preformed cordset for Modicon X80 I/O modules with a 40-way connector. It carries 20 color-coded flying leads on one end, conforming to DIN 47100, with a wire section of 0.324 mm² (AWG 22). Cable length is 10 m — a standard reach for cabinet-to-field wiring in Modicon X80 racks.
Schneider BMXFCW1001 Modicon X80 Preformed Cordset, 10m AWG
MPNBMXFCW1001
Active
Schneider Electric Modicon X80 preformed cordset BMXFCW1001, 10 m, AWG 22, 20 wires, 40-way connector with flying leads.
$148.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon X80 |
| Accessory (separate part type) | Preformed cordset |
| Cable length | 10 m |
| Wire section | 0.324 mm² |
| Number of cables | 1 |
| Electrical connection | 1 connector 40 ways 1 end with color-coded flying leads conforming to DIN 47100 |
| Total number of wires | 20 |
| AWG gauge | AWG 22 |
| Accessory (separate part designation) | Preformed cordset with one end with flying leads |
| Accessory (separate part destination) | For I/O module with 40-way connectors |
Product details
Frequently asked questions
What is BMXFCW1001's listed awg gauge?
The wires are AWG 22, which corresponds to 0.324 mm² conductor cross-section.
What is BMXFCW1001's listed cable length?
The cable length is 10 m.
