Schneider Electric BMXFCW503

Schneider BMXFCW503 Modicon X80 cordset, 5 m, 40 wires, AWG 22

MPNBMXFCW503
Active

Schneider BMXFCW503 Quick Disconnect Cables & Cord Sets.

$68.58 – $144.00Ref. price · indicative, final on quote
Schneider Electric BMXFCW503 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXFCW503 specifications
ParameterValue
Range of productModicon X80
Accessory (separate part type)Preformed cordset
Cable length5 m
Wire section0.324 mm²
Number of cables2
Electrical connection1 connector 40 ways 2 ends with color-coded flying leads conforming to DIN 47100
Total number of wires40
StandardsCSA C22.2 No 142 EN/IEC 61131-2 UL 508
AWG gaugeAWG 22
Relative impedance10 MOhm for 100 MOhm for 50...250 V
Accessory (separate part designation)Preformed cordset with one end with flying leads
Accessory (separate part destination)For I/O module with 40-way connectors

Product details

Overview

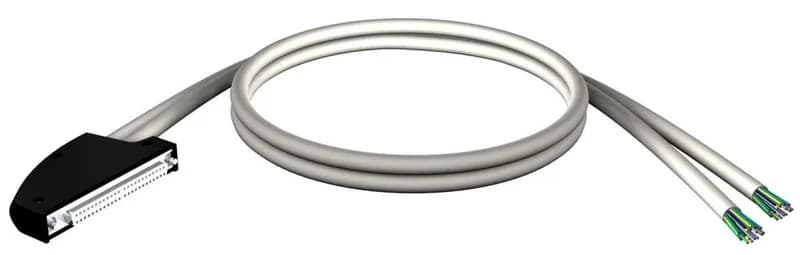

The BMXFCW503 is a Schneider Modicon X80 preformed cordset that breaks out a 40-way connector into two sets of 20 color-coded flying leads per DIN 47100, running 5.0 m of AWG 22 wire. It connects a 32-channel I/O module to field wiring without a terminal block.

Comparison with BMXFCW301

The BMXFCW503 carries 40 wires across two flying-lead ends, while the BMXFCW301 carries 20 wires on a single flying-lead end. Both use AWG 22 and a 40-way connector.

The BMXFCW503 is an active catalogue item. It carries CSA C22.2 No 142, EN/IEC 61131-2, and UL 508 certifications, and is listed under California Proposition 65.
