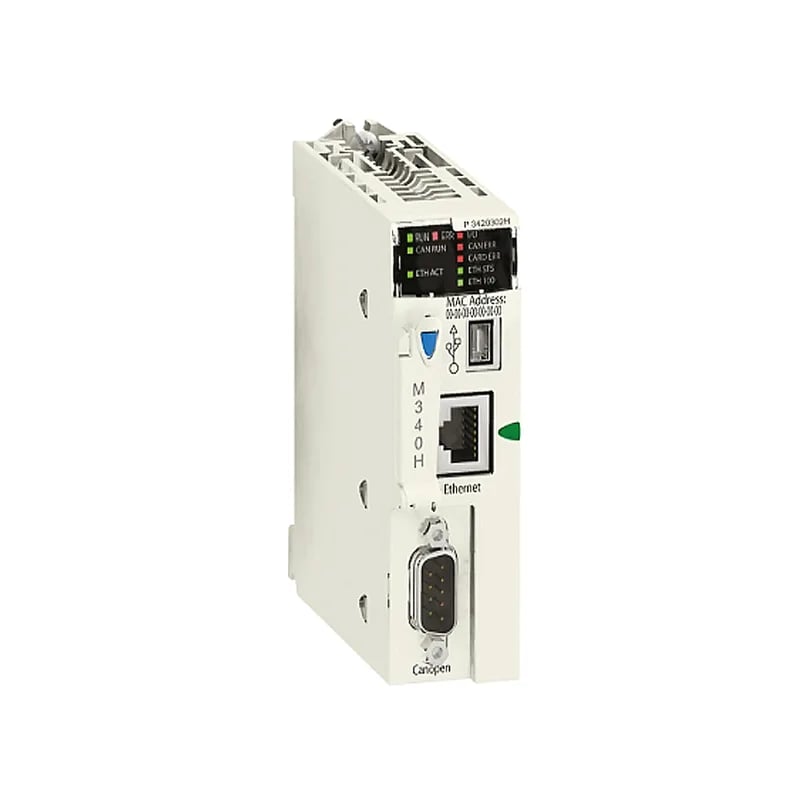

Schneider BMXP3420302H M340 PLC Processor
MPNBMXP3420302H
Active
Processor Module M340
$1,127.76 – $2,520.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protocol | CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA |
| Range of product | Modicon M340 automation platform |
| Product or component type | Processor module |
| Integrated connection type | USB port 12 Mbit/s CANopen master bus SUB-D 9 2 twisted shielded pairs 20 kbit/s...1 Mbit/s Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s |
| Current consumption | 135 mA 24 V DC |
| IP degree of protection | IP20 |
| Embedded communication service | Network management (NMT) CANopen Process Data Object (PDO) CANopen Service Data Object (SDO) CANopen Special functions (SYNC, EMCY, TIME) CANopen Bandwidth management, Ethernet TCP/IP Data Editor, Ethernet TCP/IP Modbus TCP messaging, Ethernet TCP/IP Rack Viewer, Ethernet TCP/IP SNMP network administrator, Ethernet TCP/IP |
| Communication module processor capacity | 2 Ethernet communication module 4 AS-Interface module |
| Relative humidity | 5...95 % without condensation |
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G IEC 60079-0 |
| Supply | Internal power supply via rack |
| Concept | CANopen Transparent Ready |
All specifications
| Parameter | Value |
|---|---|
| Marking | CE UL CSA RCM EAC China RoHS WEEE IEC ATEX |
| Category | US1PC3418160 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive 2014/34/EU - ATEX directive |
| Status LED | 1 LED (Green) activity on Ethernet network (ETH ACT) 1 LED (Green) integrated machine/installation bus operational (CAN RUN) 1 LED (Green) processor running (RUN) 1 LED (Green) status of Ethernet network (ETH STS) 1 LED (Green) data rate (ETH 100) 1 LED (Red) I/O module fault (I/O) 1 LED (Red) integrated machine/installation bus fault (CAN ERR) 1 LED (Red) memory card fault (CARD ERR) 1 LED (Red) processor or system fault (ERR) |
| Port ethernet | 10BASE-T/100BASE-TX |
| Motion control | Independent axis CANopen |
| Number of racks | 4 |
| System overhead | 0.13 ms fast task 0.7 ms master task |
| Control channels | Programmable loops |
| Transmission rate | 1 Mbit/s 0...65.6 ft (0...20 m) 0...2.0 ft (0...0.6 m) 125 kbit/s 0...1640.4 ft (0...500 m) 0...32.8 ft (0...10 m) 20 kbit/s 0...8202.10 ft (0...2500 m) 0...984.3 ft (0...300 m) 250 kbit/s 0...820.2 ft (0...250 m) 0...32.8 ft (0...10 m) 50 kbit/s 0...3280.8 ft (0...1000 m) 0...393.7 ft (0...120 m) 500 kbit/s 0...328.08 ft (0...100 m) 0...32.8 ft (0...10 m) 800 kbit/s 0...131.2 ft (0...40 m) 0...19.7 ft (0...6 m) |
| Memory description | Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data Internal RAM 4096 kB Internal RAM 256 kB data Internal RAM 3584 kB program constants and symbols Supplied memory card (BMXRMS008MP) activation of standard web server, class B10 |
| Protective treatment | Conformal coating |
| Application structure | 1 periodic fast task No auxiliary task 1 cyclic/periodic master task 64 event tasks |
| Number of server device | 63 CANopen |
| Default size of object areas | 1024 %MWi internal words located internal data 256 %KWi constant words located internal data 512 %Mi located internal bits |
| Environmental characteristic | Gas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant Kb/2 IEC 60068-2-52 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 |
| Maximum size of object areas | 32634 %Mi located internal bits 32464 %MWi internal words 32760 %KWi constant words |
| Product specific application | For severe environments |
| Number of devices per segment | 0...16 672.6 ft (205 m) CANopen) 0...32 607.0 ft (185 m) CANopen) 0...64 524.9 ft (160 m) CANopen) |
| Number of instructions per | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 8.1 Kinst/ms 100 % Boolean |
| Execution time per instruction | 0.12 µs Boolean 0.17 µs double-length words 0.25 µs single-length words 1.16 µs floating points |
| Analogue i (O processor capacity) | 256 I/O |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
| Number of application specific channel | 36 |
| Local i (O processor capacity (discrete)) | 1024 I/O |
