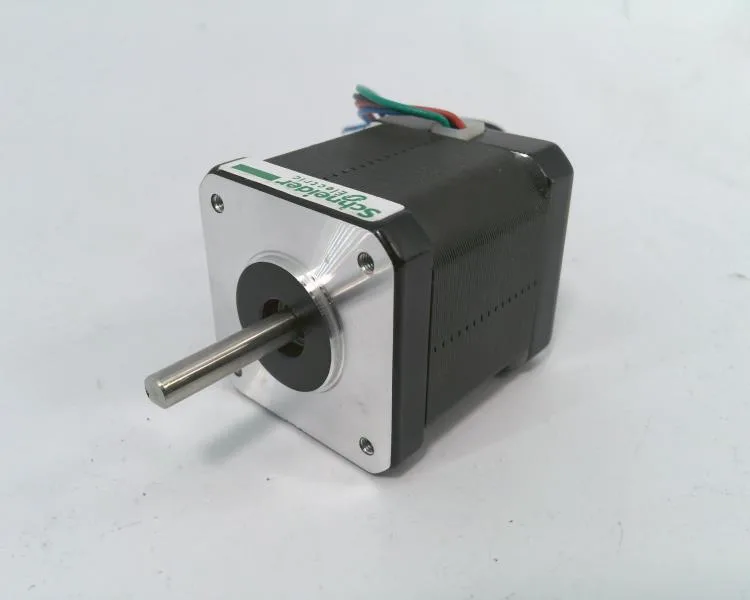

Schneider Electric BRS2423A150
MPNBRS2423A150
Active
BRS2423A150 - 1800RPM by SQUARE D
$59.26Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Motor type | 2-phase stepper motor |
| Product or component type | Motion control motor |
| Supply voltage limits | 12...48 V DC |
| Current | 1.5 A |
| IP degree of protection | IP20 conforming to IEC/EN 60034-1 |
| Mounting support | Flange |
| Mounting holes diameter | 0.1 in (3 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 1.73 in (43.84 mm) |
| Electrical connection | Flying lead |
| Relative humidity | 15...85 % without condensation |
| Operating altitude | <= 1000 m without power derating |
All specifications
| Parameter | Value |
|---|---|
| Centring collar depth | 0.08 in (2.03 mm) |
| Length | 1.9 in (48 mm) |
| Shaft end | Smooth shaft |
| Resistance | 2 Ohm winding) |
| Resolution | 200 steps number of full steps per revolution 1.8 ° step angle |
| Second shaft | Without second shaft end |
| Shaft length | 0.86 in (21.85 mm) |
| Holding brake | Without |
| Rotor inertia | 0.082 kg.cm² |
| Holding torque | 4.69 lbf.in (0.53 N.m) |
| Shaft diameter | 0.2 in (5 mm) |
| Device short name | BRS2 |
| Motor flange size | 1.7 in (42.3 mm) |
| Temperature class | B winding IEC/EN 60034-1 |
| Number of motor stacks | 3 |
| Centring collar diameter | 0.9 in (22 mm) |
| Maximum mechanical speed | 1800 rpm |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | -13...104 °F (-25...40 °C) |
MPN
BRS2423A150
