Schneider Electric BRS366H030AAB — Servo Motors

Schneider Electric BRS366H030AAB

MPNBRS366H030AAB
Obsolete

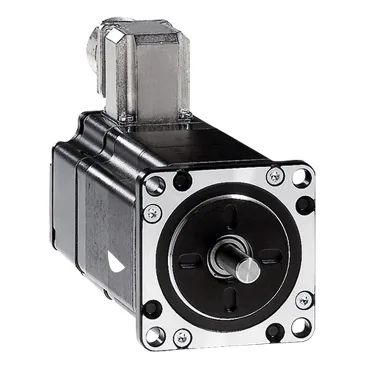

3-phase stepper motor - 1.02 Nm - shaft Ø 6.35 mm - L=56 mm - w/o brake - wire

Schneider Electric BRS366H030AAB datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

BRS366H030AAB — Identification
ParameterValue
Product typeMotion control motor
BRS366H030AAB — Performance
ParameterValue
Nominal (rated) torque8.0 lbf.in (0.9 N.m)
Maximum mechanical speed3000 rpm
Rotor inertia0.22 kg.cm²
BRS366H030AAB — Electrical
ParameterValue
Electrical connection typeFlying leads
BRS366H030AAB — Mechanical
ParameterValue
Holding brakeWithout
Shaft end typeSmooth shaft
Mounting supportFlange
Maximum radial force (Fr)40 N second shaft end) 24 N first shaft end)
Maximum axial force (Fa)100 N tensile force) 8.4 N force pressure)
Length2.2 in (56 mm)
BRS366H030AAB — Environmental
ParameterValue
IP protection ratingIP56 total except shaft bushing: conforming to IEC 60034-5 IP41 shaft bushing without shaft seal ring: conforming to IEC 60034-5
MPN
BRS366H030AAB
