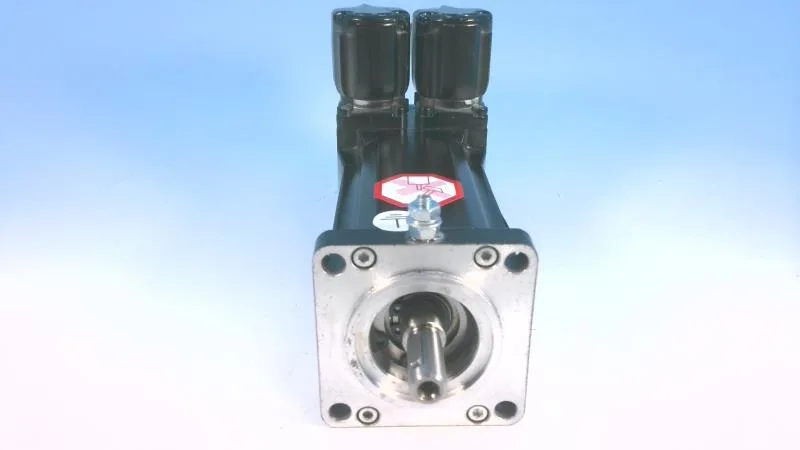

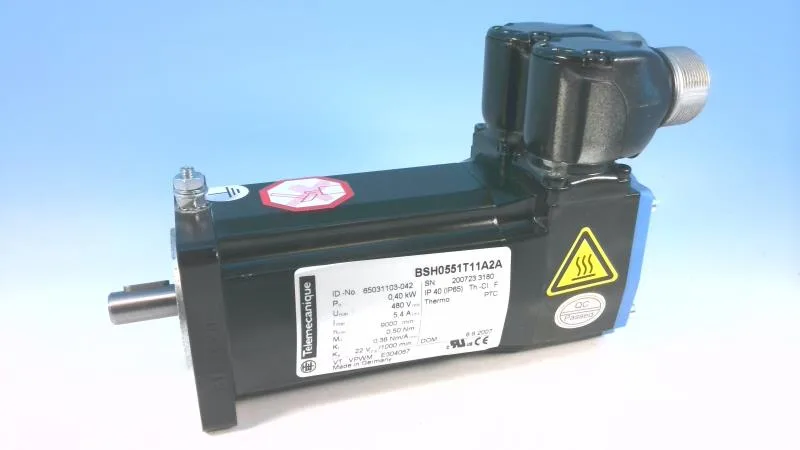

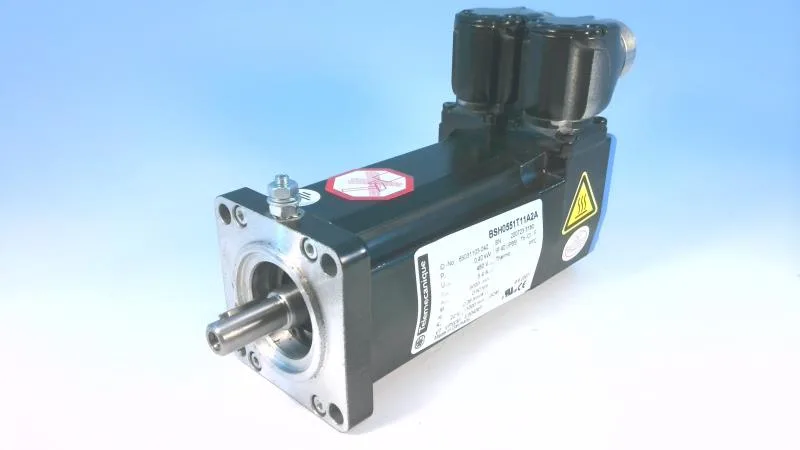

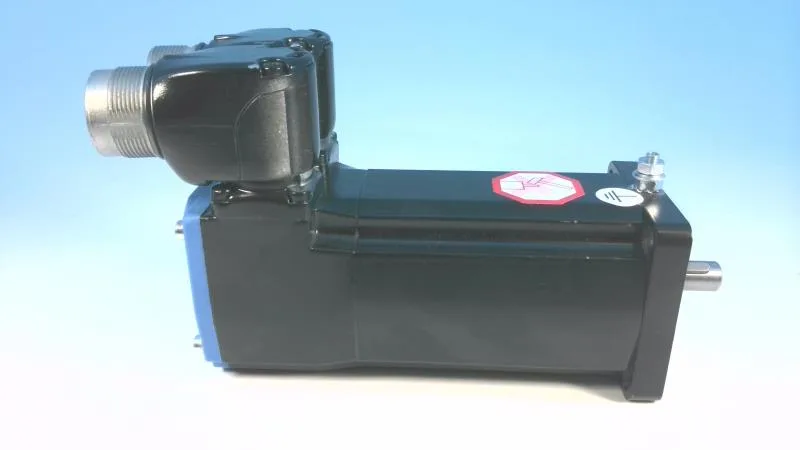

Schneider Electric BSH0551T11A2A
MPNBSH0551T11A2A
Active
SQUARE D BSH0551T11A2A: MOTOR 55 IP40 KEYED INC NOBRK ANGLED
$433.07 – $1,185.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | Single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage max | 480 V |
| Maximum current irms | 6.2 A LXM15LD13M3 5.4 A LXM05AD10F1 5.4 A LXM05CU70M2 5.4 A LXM05AD10M2 5.4 A LXM05AD10M3X 5.4 A LXM05BD10F1 5.4 A LXM05BD10M2 5.4 A LXM05BD10M3X 5.4 A LXM05CD10F1 5.4 A LXM05CD10M2 5.4 A LXM05CD10M3X 5.4 A LXM32.U90M2 4.5 A LXM32.U45M2 |
| Output current 3s peak | 5.4 A |
| Continuous stall current | 1.4 A |
| Maximum permanent current | 5.4 A |
| Nominal output power | 150 W LXM32.U90M2 3 A, 115 V, single phase 300 W LXM32.U45M2 1.5 A, 230 V, single phase 150 W LXM05AD10F1, 110...120 V, single phase 150 W LXM05BD10F1, 110...120 V, single phase 150 W LXM05CD10F1, 110...120 V, single phase 150 W LXM05CU70M2 1.5 A, 200...240 V, single phase 270 W LXM05AD10M2, 200...240 V, single phase 270 W LXM05BD10M2, 200...240 V, single phase 270 W LXM05CD10M2, 200...240 V, single phase 270 W LXM05AD10M3X, 200...240 V, three phase 270 W LXM05BD10M3X, 200...240 V, three phase 270 W LXM05CD10M3X, 200...240 V, three phase 340 W LXM15LD13M3, 230 V, three phase |
| Maximum continuous power | 0.45 W |
| Switching frequency | 8 kHz |
| Number of motor poles | 3.0 |
All specifications
| Parameter | Value |
|---|---|
| Phases | Three phase |
| Network number of phases | 3 |
| IP degree of protection | IP50 standard |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 2.5 in (63 mm) |
| Electrical connection | Rotatable right-angled connectors |
| Key width | 0.5 in (12 mm) |
| Centring collar depth | 0.08 in (2 mm) |
| Length | 5.2 in (132.5 mm) |
| Inertia | 0.0 kg.cm² of brake 0.059 kg.cm² of motor |
| Category | US1PC5318282 |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft length | 0.8 in (20 mm) |
| Holding brake | Without |
| Nominal speed | 3000 rpm LXM32.U90M2 3 A, 115 V, single phase 6000 rpm LXM32.U45M2 1.5 A, 230 V, single phase 3000 rpm LXM05AD10F1, 110...120 V, single phase 3000 rpm LXM05BD10F1, 110...120 V, single phase 3000 rpm LXM05CD10F1, 110...120 V, single phase 3000 rpm LXM05CU70M2 1.5 A, 200...240 V, single phase 6000 rpm LXM05AD10M2, 200...240 V, single phase 6000 rpm LXM05BD10M2, 200...240 V, single phase 6000 rpm LXM05CD10M2, 200...240 V, single phase 6000 rpm LXM05AD10M3X, 200...240 V, three phase 6000 rpm LXM05BD10M3X, 200...240 V, three phase 6000 rpm LXM05CD10M3X, 200...240 V, three phase 8000 rpm LXM15LD13M3, 230 V, three phase |
| Rotor inertia | 0.059 kg.cm² |
| Nominal torque | 4.34 lbf.in (0.49 N.m) LXM32.U90M2 3 A, 115 V, single phase 3.98 lbf.in (0.45 N.m) LXM32.U45M2 1.5 A, 230 V, single phase 3.81 lbf.in (0.43 N.m) LXM05AD10M2, 200...240 V, single phase 3.81 lbf.in (0.43 N.m) LXM05BD10M2, 200...240 V, single phase 3.81 lbf.in (0.43 N.m) LXM05CD10M2, 200...240 V, single phase 4.07 lbf.in (0.46 N.m) LXM05AD10F1 1.5 A, 110...120 V, single phase 4.07 lbf.in (0.46 N.m) LXM05BD10F1, 110...120 V, single phase 4.07 lbf.in (0.46 N.m) LXM05CD10F1, 110...120 V, single phase 4.07 lbf.in (0.46 N.m) LXM05CU70M2, 200...240 V, single phase 3.63 lbf.in (0.41 N.m) LXM15LD13M3, 230 V, three phase 3.81 lbf.in (0.43 N.m) LXM05AD10M3X, 200...240 V, three phase 3.81 lbf.in (0.43 N.m) LXM05BD10M3X, 200...240 V, three phase 3.81 lbf.in (0.43 N.m) LXM05CD10M3X, 200...240 V, three phase |
| Shaft diameter | 0.4 in (9 mm) |
| Torque constant | 0.36 N.m/A 248 °F (120 °C) |
| Sizing reference | BSH0551T |
| Back emf constant | 22 V/krpm 248 °F (120 °C) |
| Device short name | BSH |
| Motor flange size | 2.2 in (55 mm) |
| Peak stall torque | 13.3 lbf.in (1.5 N.m) LXM32.U90M2 3 A, 115 V, single phase 12.4 lbf.in (1.4 N.m) LXM32.U45M2 1.5 A, 230 V, single phase 9.56 lbf.in (1.08 N.m) LXM05CU70M2, 200...240 V, single phase 12.4 lbf.in (1.4 N.m) LXM05AD10F1, 110...120 V, single phase 12.4 lbf.in (1.4 N.m) LXM05AD10M2, 200...240 V, single phase 12.4 lbf.in (1.4 N.m) LXM05BD10F1 1.5 A, 110...120 V, single phase 12.4 lbf.in (1.4 N.m) LXM05BD10M2, 200...240 V, single phase 12.4 lbf.in (1.4 N.m) LXM05CD10F1, 110...120 V, single phase 12.4 lbf.in (1.4 N.m) LXM05CD10M2, 200...240 V, single phase 10.97 lbf.in (1.24 N.m) LXM15LD13M3, 230 V, three phase 12.4 lbf.in (1.4 N.m) LXM05AD10M3X, 200...240 V, three phase 12.4 lbf.in (1.4 N.m) LXM05BD10M3X, 200...240 V, three phase 12.4 lbf.in (1.4 N.m) LXM05CD10M3X, 200...240 V, three phase |
| Stator inductance | 10.85 mH 68 °F (20 °C) |
| Stator resistance | 12.2 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 1 |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 4.4 lbf.in (0.5 N.m) LXM32.U90M2 3 A, 115 V, single phase 4.4 lbf.in (0.5 N.m) LXM32.U45M2 1.5 A, 230 V, single phase 4.4 lbf.in (0.5 N.m) LXM05CU70M2, 200...240 V, single phase 4.4 lbf.in (0.5 N.m) LXM05AD10F1, 110...120 V, single phase 4.4 lbf.in (0.5 N.m) LXM05AD10M2, 200...240 V, single phase 4.4 lbf.in (0.5 N.m) LXM05BD10F1 1.5 A, 110...120 V, single phase 4.4 lbf.in (0.5 N.m) LXM05BD10M2, 200...240 V, single phase 4.4 lbf.in (0.5 N.m) LXM05CD10F1, 110...120 V, single phase 4.4 lbf.in (0.5 N.m) LXM05CD10M2, 200...240 V, single phase 4.4 lbf.in (0.5 N.m) LXM15LD13M3, 230 V, three phase 4.4 lbf.in (0.5 N.m) LXM05AD10M3X, 200...240 V, three phase 4.4 lbf.in (0.5 N.m) LXM05BD10M3X, 200...240 V, three phase 4.4 lbf.in (0.5 N.m) LXM05CD10M3X, 200...240 V, three phase |
| Maximum radial force fr | 170 N 8000 rpm 180 N 7000 rpm 190 N 6000 rpm 200 N 5000 rpm 220 N 4000 rpm 240 N 3000 rpm 270 N 2000 rpm 340 N 1000 rpm |
| Accuracy error [angular] | 1.4 ° |
| Centring collar diameter | 1.6 in (40 mm) |
| Maximum mechanical speed | 9000 rpm |
| Speed feedback resolution | 131072 points/turn |
| Stator electrical time constant | 1.7 ms 68 °F (20 °C) |
MPN
BSH0551T11A2A
