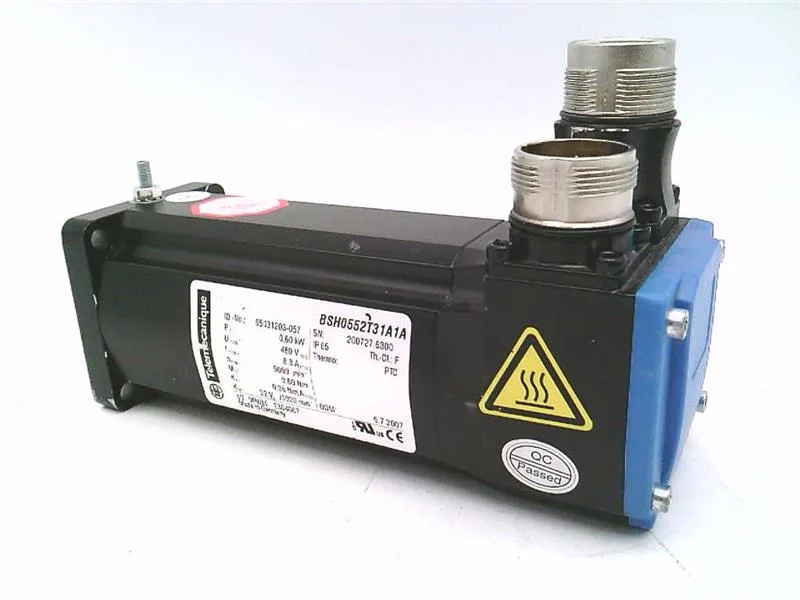

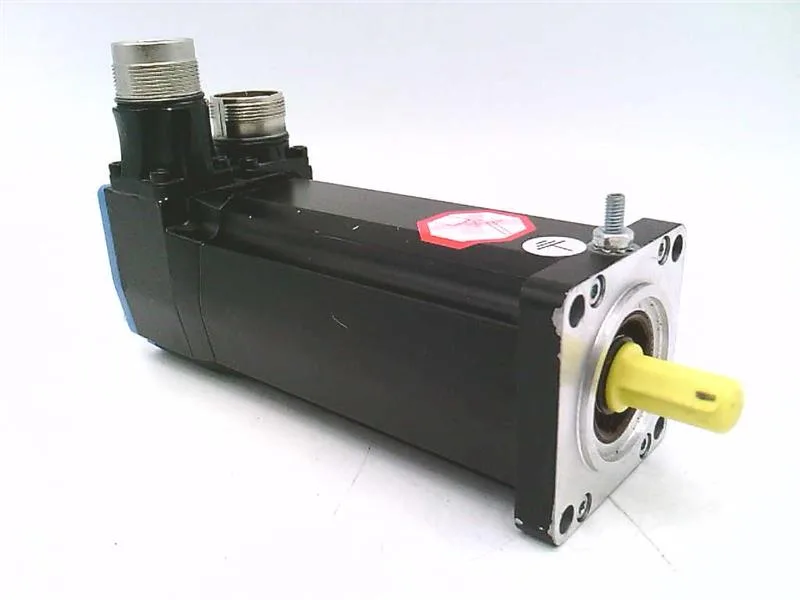

Schneider Electric BSH0552T31A1A
MPNBSH0552T31A1A
Active
BSH0552T31A1A - 6000RPM by SCHNEIDER ELECTRIC
$976.63Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | Single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage max | 480 V |
| Maximum current irms | 6 A LXM32.U90M2 115 V 8.8 A LXM32.U90M2 230 V 10.3 A LXM15LD13M3 8.8 A LXM05AD10F1 8.8 A LXM05AD17F1 8.8 A LXM05CU70M2 8.8 A LXM05AD10M2 8.8 A LXM05AD10M3X 8.8 A LXM05BD10F1 230 V 8.8 A LXM05BD17F1 8.8 A LXM05BD10M2 8.8 A LXM05BD10M3X 8.8 A LXM05CD10F1 8.8 A LXM05CD17F1 8.8 A LXM05CD10M2 8.8 A LXM05CD10M3X |
| Output current 3s peak | 8.8 A |
| Continuous stall current | 2.2 A |
| Maximum permanent current | 8.8 A |
| Nominal output power | 250 W LXM32.U90M2 3 A, 115 V, single phase 450 W LXM32.U90M2 3 A, 230 V, single phase 240 W LXM05CU70M2, 200...240 V, single phase 250 W LXM05AD10F1, 110...120 V, single phase 250 W LXM05AD17F1, 110...120 V, single phase 250 W LXM05BD10F1, 110...120 V, single phase 250 W LXM05BD17F1, 110...120 V, single phase 250 W LXM05CD10F1, 110...120 V, single phase 250 W LXM05CD17F1, 110...120 V, single phase 450 W LXM05AD10M2 3 A, 200...240 V, single phase 450 W LXM05BD10M2, 200...240 V, single phase 450 W LXM05CD10M2, 200...240 V, single phase 450 W LXM15LD13M3, 230 V, single phase 450 W LXM05AD10M3X, 200...240 V, three phase 450 W LXM05BD10M3X, 200...240 V, three phase 450 W LXM05CD10M3X, 200...240 V, three phase 570 W LXM15LD13M3, 230 V, three phase |
| Maximum continuous power | 0.67 W |
| Switching frequency | 8 kHz |
| Number of motor poles | 3.0 |
All specifications
| Parameter | Value |
|---|---|
| Phases | Three phase |
| Network number of phases | 3 |
| IP degree of protection | IP65 standard IP67 with IP67 kit |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 2.5 in (63 mm) |
| Electrical connection | Straight connectors |
| Key width | 0.5 in (12 mm) |
| Centring collar depth | 0.08 in (2 mm) |
| Length | 6.08 in (154.4 mm) |
| Inertia | 0.0 kg.cm² of brake 0.096 kg.cm² of motor |
| Category | US1PC5318282 |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft length | 0.8 in (20 mm) |
| Holding brake | Without |
| Nominal speed | 3000 rpm LXM32.U90M2 3 A, 115 V, single phase 6000 rpm LXM32.U90M2 3 A, 230 V, single phase 3000 rpm LXM05AD10F1, 110...120 V, single phase 3000 rpm LXM05BD10F1, 110...120 V, single phase 3000 rpm LXM05CD10F1, 110...120 V, single phase 3000 rpm LXM05CU70M2, 200...240 V, single phase 6000 rpm LXM05AD10M2, 200...240 V, single phase 6000 rpm LXM05BD10M2, 200...240 V, single phase 6000 rpm LXM05CD10M2, 200...240 V, single phase 6000 rpm LXM05AD10M3X 3 A, 200...240 V, three phase 6000 rpm LXM05BD10M3X, 200...240 V, three phase 6000 rpm LXM05CD10M3X, 200...240 V, three phase 8000 rpm LXM15LD13M3, 230 V, three phase 3000 rpm LXM05AD17F1, 110...120 V, single phase 3000 rpm LXM05BD17F1, 110...120 V, single phase 3000 rpm LXM05CD17F1, 110...120 V, single phase 6000 rpm LXM15LD13M3, 230 V, single phase |
| Rotor inertia | 0.096 kg.cm² |
| Nominal torque | 6.82 lbf.in (0.77 N.m) LXM32.U90M2 3 A, 115 V, single phase 6.55 lbf.in (0.74 N.m) LXM32.U90M2 3 A, 230 V, single phase 6.37 lbf.in (0.72 N.m) LXM15LD13M3, 230 V, single phase 6.82 lbf.in (0.77 N.m) LXM05CU70M2, 200...240 V, single phase 8.0 lbf.in (0.9 N.m) LXM05AD10F1, 110...120 V, single phase 8.0 lbf.in (0.9 N.m) LXM05AD10M2, 200...240 V, single phase 8.0 lbf.in (0.9 N.m) LXM05AD17F1, 110...120 V, single phase 8.0 lbf.in (0.9 N.m) LXM05BD10F1, 110...120 V, single phase 8.0 lbf.in (0.9 N.m) LXM05BD10M2, 200...240 V, single phase 8.0 lbf.in (0.9 N.m) LXM05BD17F1 3 A, 110...120 V, single phase 8.0 lbf.in (0.9 N.m) LXM05CD10F1, 110...120 V, single phase 8.0 lbf.in (0.9 N.m) LXM05CD10M2, 200...240 V, single phase 8.0 lbf.in (0.9 N.m) LXM05CD17F1, 110...120 V, single phase 6.02 lbf.in (0.68 N.m) LXM15LD13M3, 230 V, three phase 8.0 lbf.in (0.9 N.m) LXM05AD10M3X, 200...240 V, three phase 8.0 lbf.in (0.9 N.m) LXM05BD10M3X, 200...240 V, three phase 8.0 lbf.in (0.9 N.m) LXM05CD10M3X, 200...240 V, three phase |
| Shaft diameter | 0.4 in (9 mm) |
| Torque constant | 0.36 N.m/A 248 °F (120 °C) |
| Sizing reference | BSH0552T |
| Back emf constant | 22 V/krpm 248 °F (120 °C) |
| Device short name | BSH |
| Motor flange size | 2.2 in (55 mm) |
| Peak stall torque | 16.8 lbf.in (1.9 N.m) LXM32.U90M2 3 A, 115 V, single phase 22.1 lbf.in (2.5 N.m) LXM32.U90M2 3 A, 230 V, single phase 13.3 lbf.in (1.5 N.m) LXM15LD13M3, 230 V, single phase 11.59 lbf.in (1.31 N.m) LXM05CU70M2, 200...240 V, single phase 15.67 lbf.in (1.77 N.m) LXM05AD10F1, 110...120 V, single phase 15.67 lbf.in (1.77 N.m) LXM05AD10M2, 200...240 V, single phase 23.9 lbf.in (2.7 N.m) LXM05AD17F1, 110...120 V, single phase 15.67 lbf.in (1.77 N.m) LXM05BD10F1, 110...120 V, single phase 15.67 lbf.in (1.77 N.m) LXM05BD10M2, 200...240 V, single phase 23.9 lbf.in (2.7 N.m) LXM05BD17F1 3 A, 110...120 V, single phase 15.67 lbf.in (1.77 N.m) LXM05CD10F1, 110...120 V, single phase 15.67 lbf.in (1.77 N.m) LXM05CD10M2, 200...240 V, single phase 23.9 lbf.in (2.7 N.m) LXM05CD17F1, 110...120 V, single phase 13.3 lbf.in (1.5 N.m) LXM15LD13M3, 230 V, three phase 15.67 lbf.in (1.77 N.m) LXM05AD10M3X, 200...240 V, three phase 15.67 lbf.in (1.77 N.m) LXM05BD10M3X, 200...240 V, three phase 15.67 lbf.in (1.77 N.m) LXM05CD10M3X, 200...240 V, three phase |
| Stator inductance | 5.45 mH 68 °F (20 °C) |
| Stator resistance | 5.2 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 2 |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 7.08 lbf.in (0.8 N.m) LXM32.U90M2 3 A, 115 V, single phase 7.08 lbf.in (0.8 N.m) LXM32.U90M2 3 A, 230 V, single phase 8.0 lbf.in (0.9 N.m) LXM05AD10M2, 200...240 V, single phase 8.0 lbf.in (0.9 N.m) LXM05BD10M2, 200...240 V, single phase 8.0 lbf.in (0.9 N.m) LXM05CD10M2, 200...240 V, single phase 8.0 lbf.in (0.9 N.m) LXM05AD10M3X, 200...240 V, three phase 8.0 lbf.in (0.9 N.m) LXM05BD10M3X, 200...240 V, three phase 8.0 lbf.in (0.9 N.m) LXM05CD10M3X, 200...240 V, three phase 8.0 lbf.in (0.9 N.m) LXM15LD13M3, 230 V, single phase 8.0 lbf.in (0.9 N.m) LXM15LD13M3 3 A, 230 V, three phase 6.82 lbf.in (0.77 N.m) LXM05CU70M2, 200...240 V, single phase 8.0 lbf.in (0.9 N.m) LXM05AD10F1, 110...120 V, single phase 8.0 lbf.in (0.9 N.m) LXM05AD17F1, 110...120 V, single phase 8.0 lbf.in (0.9 N.m) LXM05BD10F1, 110...120 V, single phase 8.0 lbf.in (0.9 N.m) LXM05BD17F1, 110...120 V, single phase 8.0 lbf.in (0.9 N.m) LXM05CD10F1, 110...120 V, single phase 8.0 lbf.in (0.9 N.m) LXM05CD17F1, 110...120 V, single phase |
| Maximum radial force fr | 190 N 7000 rpm 190 N 8000 rpm 200 N 6000 rpm 220 N 5000 rpm 230 N 4000 rpm 260 N 3000 rpm 290 N 2000 rpm 370 N 1000 rpm |
| Accuracy error [angular] | 1.4 ° |
| Centring collar diameter | 1.6 in (40 mm) |
| Maximum mechanical speed | 9000 rpm |
| Speed feedback resolution | 131072 points/turn |
| Stator electrical time constant | 2.04 ms 68 °F (20 °C) |
