Schneider Electric BSH0702T21F2A
MPNBSH0702T21F2A
Active

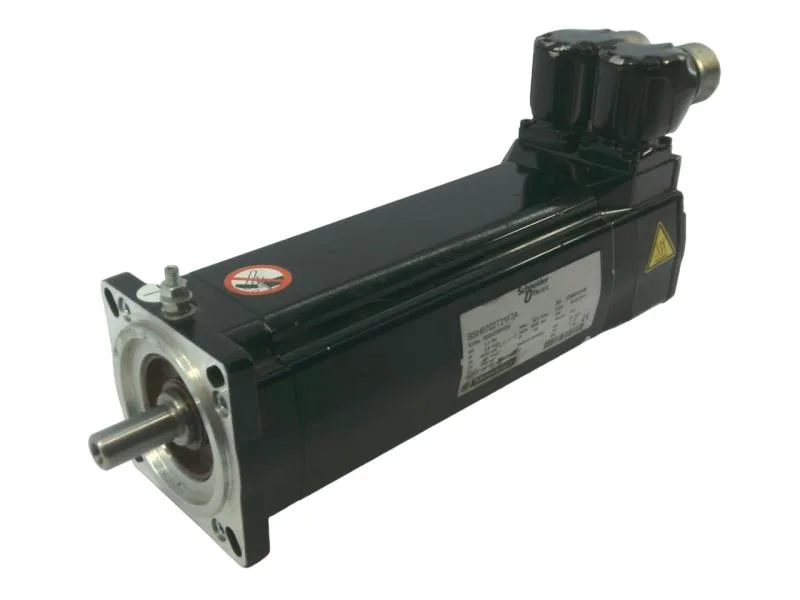

Square D BSH0702T21F2A Servo Motor|Square D BSH0702T21F2A Servo Motor
$1,196.38 – $1,690.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Feedback type | Single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage max | 480 V |
| Maximum current irms | 20.6 A LXM15LD21M3 20.6 A LXM15LD17N4 19.9 A LXM05AD17F1 19.9 A LXM05AD17M2 19.9 A LXM05AD28M2 19.9 A LXM05AD42M3X 19.9 A LXM05BD17F1 19.9 A LXM05BD17M2 19.9 A LXM05BD28M2 19.9 A LXM05BD42M3X 19.9 A LXM05CD17F1 19.9 A LXM05CD17M2 19.9 A LXM05CD28M2 19.9 A LXM05CD42M3X 15 A LXM32.D30M2 18 A LXM32.D18M2 |
| Output current 3s peak | 19.9 A |
| Continuous stall current | 4.9 A |
| Maximum permanent current | 19.9 A |
| Brake pull-in power | 10 W |
| Nominal output power | 550 W LXM32.D30M2 10 A, 115 V, single phase 600 W LXM05AD17M2, 200...240 V, single phase 600 W LXM05BD17M2 6 A, 200...240 V, single phase 600 W LXM05CD17M2, 200...240 V, single phase 570 W LXM05AD17F1, 110...120 V, single phase 570 W LXM05BD17F1, 110...120 V, single phase 570 W LXM05CD17F1, 110...120 V, single phase 600 W LXM05AD28M2, 200...240 V, single phase 600 W LXM05BD28M2, 200...240 V, single phase 600 W LXM05CD28M2, 200...240 V, single phase 950 W LXM32.D18M2 6 A, 230 V, single phase 1000 W LXM15LD17N4, 230 V, three phase 1000 W LXM15LD21M3, 230 V, three phase 600 W LXM05AD42M3X, 200...240 V, three phase 600 W LXM05BD42M3X, 200...240 V, three phase 600 W LXM05CD42M3X, 200...240 V, three phase |
| Maximum continuous power | 1.51 W |
| Switching frequency | 8 kHz |
All specifications
| Parameter | Value |
|---|---|
| Number of motor poles | 3.0 |
| Phases | Three phase |
| Network number of phases | 3 |
| IP degree of protection | IP65 standard IP67 with IP67 kit |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 3.2 in (82 mm) |
| Electrical connection | Rotatable right-angled connectors |
| Centring collar depth | 0.10 in (2.5 mm) |
| Length | 8.4 in (212.5 mm) |
| Inertia | 0.11 kg.cm² of brake 0.41 kg.cm² of motor |
| Category | US1PC5318282 |
| Shaft end | Untapped |
| Second shaft | Without second shaft end |
| Shaft length | 0.9 in (23 mm) |
| Holding brake | With |
| Nominal speed | 2500 rpm LXM32.D30M2 10 A, 115 V, single phase 3000 rpm LXM05AD17F1, 110...120 V, single phase 3000 rpm LXM05BD17F1 6 A, 110...120 V, single phase 3000 rpm LXM05CD17F1, 110...120 V, single phase 3000 rpm LXM05AD17M2, 200...240 V, single phase 3000 rpm LXM05BD17M2, 200...240 V, single phase 3000 rpm LXM05CD17M2, 200...240 V, single phase 3000 rpm LXM05AD28M2, 200...240 V, single phase 3000 rpm LXM05BD28M2, 200...240 V, single phase 3000 rpm LXM05CD28M2, 200...240 V, single phase 5000 rpm LXM32.D18M2 6 A, 230 V, single phase 3000 rpm LXM05AD42M3X, 200...240 V, three phase 3000 rpm LXM05BD42M3X, 200...240 V, three phase 3000 rpm LXM05CD42M3X, 200...240 V, three phase 6000 rpm LXM15LD17N4, 230 V, three phase 6000 rpm LXM15LD21M3, 230 V, three phase |
| Rotor inertia | 0.482 kg.cm² |
| Holding torque | 17.7 lbf.in (2 N.m) holding brake |
| Nominal torque | 18.32 lbf.in (2.07 N.m) LXM32.D30M2 10 A, 115 V, single phase 16.8 lbf.in (1.9 N.m) LXM05AD17M2, 200...240 V, single phase 16.8 lbf.in (1.9 N.m) LXM05BD17M2 6 A, 200...240 V, single phase 16.8 lbf.in (1.9 N.m) LXM05CD17M2, 200...240 V, single phase 16.20 lbf.in (1.83 N.m) LXM05AD17F1, 110...120 V, single phase 16.20 lbf.in (1.83 N.m) LXM05BD17F1, 110...120 V, single phase 16.20 lbf.in (1.83 N.m) LXM05CD17F1, 110...120 V, single phase 16.8 lbf.in (1.9 N.m) LXM05AD28M2, 200...240 V, single phase 16.8 lbf.in (1.9 N.m) LXM05BD28M2, 200...240 V, single phase 16.8 lbf.in (1.9 N.m) LXM05CD28M2, 200...240 V, single phase 15.9 lbf.in (1.8 N.m) LXM32.D18M2 6 A, 230 V, single phase 14.69 lbf.in (1.66 N.m) LXM15LD17N4, 230 V, three phase 14.69 lbf.in (1.66 N.m) LXM15LD21M3, 230 V, three phase 16.8 lbf.in (1.9 N.m) LXM05AD42M3X, 200...240 V, three phase 16.8 lbf.in (1.9 N.m) LXM05BD42M3X, 200...240 V, three phase 16.8 lbf.in (1.9 N.m) LXM05CD42M3X, 200...240 V, three phase |
| Shaft diameter | 0.4 in (11 mm) |
| Torque constant | 0.45 N.m/A 248 °F (120 °C) |
| Sizing reference | BSH0702T |
| Back emf constant | 28 V/krpm 248 °F (120 °C) |
| Device short name | BSH |
| Motor flange size | 2.8 in (70 mm) |
| Peak stall torque | 54.0 lbf.in (6.1 N.m) LXM32.D30M2 10 A, 115 V, single phase 63.7 lbf.in (7.2 N.m) LXM32.D18M2 6 A, 230 V, single phase 36.64 lbf.in (4.14 N.m) LXM05AD17F1, 110...120 V, single phase 36.64 lbf.in (4.14 N.m) LXM05AD17M2, 200...240 V, single phase 36.64 lbf.in (4.14 N.m) LXM05BD17F1, 110...120 V, single phase 36.64 lbf.in (4.14 N.m) LXM05BD17M2, 200...240 V, single phase 36.64 lbf.in (4.14 N.m) LXM05CD17F1, 110...120 V, single phase 36.64 lbf.in (4.14 N.m) LXM05CD17M2, 200...240 V, single phase 60.2 lbf.in (6.8 N.m) LXM05AD28M2 6 A, 200...240 V, single phase 60.2 lbf.in (6.8 N.m) LXM05BD28M2, 200...240 V, single phase 60.2 lbf.in (6.8 N.m) LXM05CD28M2, 200...240 V, single phase 39.56 lbf.in (4.47 N.m) LXM15LD17N4, 230 V, three phase 48.24 lbf.in (5.45 N.m) LXM15LD21M3, 230 V, three phase 60.2 lbf.in (6.8 N.m) LXM05AD42M3X, 200...240 V, three phase 60.2 lbf.in (6.8 N.m) LXM05BD42M3X, 200...240 V, three phase 60.2 lbf.in (6.8 N.m) LXM05CD42M3X, 200...240 V, three phase |
| Stator inductance | 3.75 mH 68 °F (20 °C) |
| Stator resistance | 1.5 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 2 |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 19.5 lbf.in (2.2 N.m) LXM32.D30M2 10 A, 115 V, single phase 18.76 lbf.in (2.12 N.m) LXM05AD17M2, 200...240 V, single phase 18.76 lbf.in (2.12 N.m) LXM05BD17M2, 200...240 V, single phase 18.76 lbf.in (2.12 N.m) LXM05CD17M2, 200...240 V, single phase 19.5 lbf.in (2.2 N.m) LXM32.D18M2 6 A, 230 V, single phase 18.76 lbf.in (2.12 N.m) LXM05AD17F1, 110...120 V, single phase 18.76 lbf.in (2.12 N.m) LXM05AD28M2, 200...240 V, single phase 18.76 lbf.in (2.12 N.m) LXM05BD17F1, 110...120 V, single phase 18.76 lbf.in (2.12 N.m) LXM05BD28M2, 200...240 V, single phase 18.76 lbf.in (2.12 N.m) LXM05CD17F1, 110...120 V, single phase 18.76 lbf.in (2.12 N.m) LXM05CD28M2, 200...240 V, single phase 18.76 lbf.in (2.12 N.m) LXM15LD17N4 6 A, 230 V, three phase 18.76 lbf.in (2.12 N.m) LXM15LD21M3, 230 V, three phase 18.76 lbf.in (2.12 N.m) LXM05AD42M3X, 200...240 V, three phase 18.76 lbf.in (2.12 N.m) LXM05BD42M3X, 200...240 V, three phase 18.76 lbf.in (2.12 N.m) LXM05CD42M3X, 200...240 V, three phase |
| Maximum radial force fr | 390 N 6000 rpm 410 N 5000 rpm 450 N 4000 rpm 490 N 3000 rpm 560 N 2000 rpm 710 N 1000 rpm |
| Accuracy error [angular] | 1.4 ° |
| Centring collar diameter | 2.4 in (60 mm) |
| Maximum mechanical speed | 8000 rpm |
| Speed feedback resolution | 131072 points/turn |
| Stator electrical time constant | 4.47 ms 68 °F (20 °C) |
