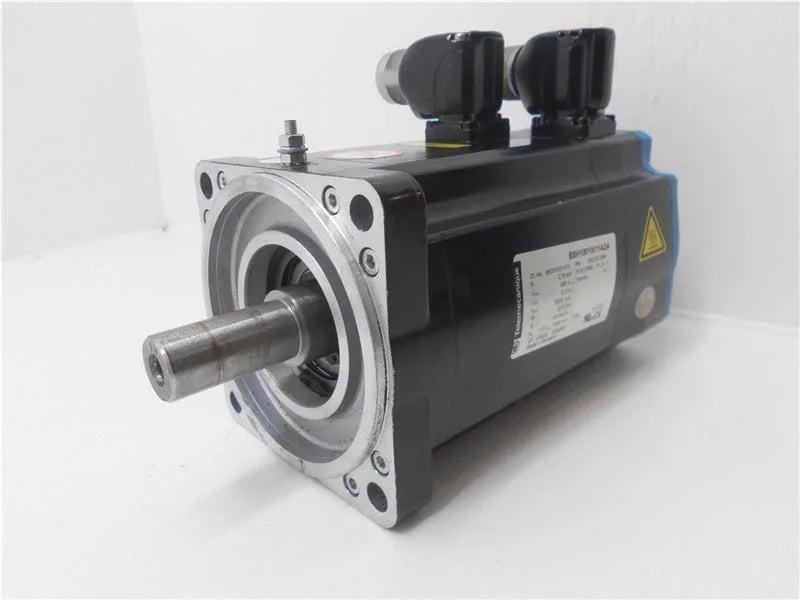

Schneider Electric BSH1001M11A2A
MPNBSH1001M11A2A
Obsolete
BSH1001M11A2A by TELEMECANIQUE
$1,574.24Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Feedback type | Single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage max | 480 V |
| Maximum current irms | 6.3 A for LXM05AD14N4 6.3 A for LXM05BD14N4 6.3 A for LXM05CD14N4 |
| Continuous stall current | 1.8 A |
| Maximum permanent current | 6.3 A |
| Nominal output power | 500 W for LXM05AD14N4, 380...480 V, three phase 500 W for LXM05BD14N4, 380...480 V, three phase 500 W for LXM05CD14N4, 380...480 V, three phase |
| Maximum continuous power | 1.6 W |
| Switching frequency | 4 kHz |
| Number of motor poles | 8 |
| Network number of phases | 3 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP50 standard |
| Mounting support | International standard flange |
| Mounting holes diameter | 9 mm |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 115 mm |
| Electrical connection | Rotatable right-angled connectors |
| Key width | 30 mm |
| Centring collar depth | 3.5 mm |
| Length | 168.5 mm |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft length | 40 mm |
| Holding brake | Without |
| Nominal speed | 1500 rpm for LXM05AD14N4, 380...480 V, three phase 1500 rpm for LXM05BD14N4, 380...480 V, three phase 1500 rpm for LXM05CD14N4, 380...480 V, three phase |
| Rotor inertia | 1.4 kg.cm² |
| Nominal torque | 3.16 N.m for LXM05AD14N4, 380...480 V, three phase 3.16 N.m for LXM05BD14N4, 380...480 V, three phase 3.16 N.m for LXM05CD14N4, 380...480 V, three phase |
| Shaft diameter | 19 mm |
| Torque constant | 1.83 N.m/A at 120 °C |
| Sizing reference | BSH1001M |
| Back emf constant | 115 V/krpm at 120 °C |
| Device short name | BSH |
| Motor flange size | 100 mm |
| Peak stall torque | 7.1 N.m for LXM05AD14N4, 380...480 V, three phase 7.1 N.m for LXM05BD14N4, 380...480 V, three phase 7.1 N.m for LXM05CD14N4, 380...480 V, three phase |
| Stator inductance | 64.3 mH at 20 °C |
| Stator resistance | 13.9 Ohm at 20 °C |
| Temperature magnet rt | 20 °C |
| Maximum axial force fa | 0.2 x Fr |
| Temperature copper hot | 120 °C |
| Temperature magnet hot | 100 °C |
| Continuous stall torque | 3.4 N.m for LXM05AD14N4, 380...480 V, three phase 3.4 N.m for LXM05BD14N4, 380...480 V, three phase 3.4 N.m for LXM05CD14N4, 380...480 V, three phase |
| Maximum radial force fr | 530 N at 5000 rpm 570 N at 4000 rpm 630 N at 3000 rpm 720 N at 2000 rpm 900 N at 1000 rpm |
| Accuracy error [angular] | 1.4 ° |
| Centring collar diameter | 95 mm |
| Maximum mechanical speed | 6000 rpm |
| Speed feedback resolution | 131072 points/turn |
| Stator electrical time constant | 4.63 ms at 20 °C |
