Schneider Electric BSH1001T02F1A

Schneider Electric BSH1001T02F1A

MPNBSH1001T02F1A
Obsolete

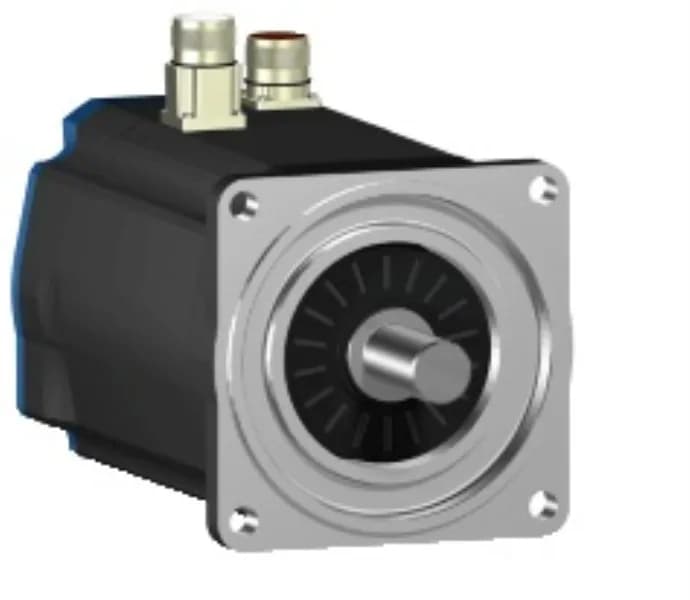

Square D BSH1001T02F1A Servo Motor|Square D BSH1001T02F1A Servo Motor

$2,251.71 – $3,370.00Ref. price · indicative, final on quote
Schneider Electric BSH1001T02F1A datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BSH1001T02F1A key specifications
ParameterValue
Feedback typeMultiturn SinCos Hiperface
Type of coolingNatural convection
Product or component typeServo motor
Supply voltage max480 V
Maximum current irms18 A LXM32.D18M2 230 V 15 A LXM32.D30M2 115 V 23 A LXM15LD28M3 25.1 A LXM05AD28F1 25.1 A LXM05AD28M2 115 V 25.1 A LXM05AD42M3X 25.1 A LXM05BD28F1 25.1 A LXM05BD28M2 25.1 A LXM05BD42M3X 25.1 A LXM05CD28F1 25.1 A LXM05CD28M2 25.1 A LXM05CD42M3X
Continuous stall current7.3 A
Maximum permanent current25.1 A
Brake pull-in power18 W
Nominal output power700 W LXM32.D30M2 10 A, 115 V, single phase 900 W LXM32.D18M2 6 A, 230 V, single phase 500 W LXM05AD28F1, 110...120 V, single phase 500 W LXM05BD28F1, 110...120 V, single phase 500 W LXM05CD28F1 6 A, 110...120 V, single phase 900 W LXM05AD28M2, 200...240 V, single phase 900 W LXM05BD28M2, 200...240 V, single phase 900 W LXM05CD28M2, 200...240 V, single phase 1150 W LXM15LD28M3, 230 V, three phase 900 W LXM05AD42M3X, 200...240 V, three phase 900 W LXM05BD42M3X, 200...240 V, three phase 900 W LXM05CD42M3X, 200...240 V, three phase
Maximum continuous power1.6 W
Switching frequency8 kHz
Number of motor poles8

All specifications

BSH1001T02F1A additional specifications
ParameterValue
PhasesThree phase
Network number of phases3
IP degree of protectionIP50 standard
Mounting supportInternational standard flange
Mounting holes diameter0.4 in (9 mm)
Number of mounting holes4
Circle diameter of the mounting holes4.5 in (115 mm)
Electrical connectionStraight connectors
Centring collar depth0.1 in (3.5 mm)
Length7.9 in (199.5 mm)
CategoryUS1PC5318282
Shaft endUntapped
Second shaftWithout second shaft end
Shaft length1.6 in (40 mm)
Holding brakeWith
Nominal speed2500 rpm LXM32.D30M2 10 A, 115 V, single phase 3000 rpm LXM05AD28M2, 200...240 V, single phase 3000 rpm LXM05BD28M2, 200...240 V, single phase 3000 rpm LXM05CD28M2, 200...240 V, single phase 3000 rpm LXM05AD42M3X, 200...240 V, three phase 3000 rpm LXM05BD42M3X, 200...240 V, three phase 3000 rpm LXM05CD42M3X, 200...240 V, three phase 4000 rpm LXM32.D18M2 6 A, 230 V, single phase 1500 rpm LXM05AD28F1, 110...120 V, single phase 1500 rpm LXM05BD28F1, 110...120 V, single phase 1500 rpm LXM05CD28F1 6 A, 110...120 V, single phase 4000 rpm LXM15LD28M3, 230 V, three phase
Rotor inertia2.018 kg.cm²
Holding torque79.7 lbf.in (9 N.m) holding brake
Nominal torque24.34 lbf.in (2.75 N.m) LXM32.D30M2 10 A, 115 V, single phase 25.7 lbf.in (2.9 N.m) LXM05AD28M2, 200...240 V, single phase 25.7 lbf.in (2.9 N.m) LXM05BD28M2, 200...240 V, single phase 25.7 lbf.in (2.9 N.m) LXM05CD28M2, 200...240 V, single phase 27.97 lbf.in (3.16 N.m) LXM05AD28F1, 110...120 V, single phase 27.97 lbf.in (3.16 N.m) LXM05BD28F1, 110...120 V, single phase 27.97 lbf.in (3.16 N.m) LXM05CD28F1, 110...120 V, single phase 19.5 lbf.in (2.2 N.m) LXM32.D18M2 6 A, 230 V, single phase 24.34 lbf.in (2.75 N.m) LXM15LD28M3, 230 V, three phase 25.7 lbf.in (2.9 N.m) LXM05AD42M3X, 200...240 V, three phase 25.7 lbf.in (2.9 N.m) LXM05BD42M3X 6 A, 200...240 V, three phase 25.7 lbf.in (2.9 N.m) LXM05CD42M3X, 200...240 V, three phase
Shaft diameter0.7 in (19 mm)
Torque constant0.45 N.m/A 248 °F (120 °C)
Sizing referenceBSH1001T
Back emf constant29 V/krpm 248 °F (120 °C)
Device short nameBSH
Motor flange size3.9 in (100 mm)
Peak stall torque55.8 lbf.in (6.3 N.m) LXM32.D30M2 10 A, 115 V, single phase 75.2 lbf.in (8.5 N.m) LXM05AD28F1, 110...120 V, single phase 75.2 lbf.in (8.5 N.m) LXM05AD28M2, 200...240 V, single phase 75.2 lbf.in (8.5 N.m) LXM05BD28F1, 110...120 V, single phase 75.2 lbf.in (8.5 N.m) LXM05BD28M2, 200...240 V, single phase 75.2 lbf.in (8.5 N.m) LXM05CD28F1, 110...120 V, single phase 75.2 lbf.in (8.5 N.m) LXM05CD28M2, 200...240 V, single phase 66.4 lbf.in (7.5 N.m) LXM32.D18M2 6 A, 230 V, single phase 75.2 lbf.in (8.5 N.m) LXM15LD28M3, 230 V, three phase 75.2 lbf.in (8.5 N.m) LXM05AD42M3X, 200...240 V, three phase 75.2 lbf.in (8.5 N.m) LXM05BD42M3X 6 A, 200...240 V, three phase 75.2 lbf.in (8.5 N.m) LXM05CD42M3X, 200...240 V, three phase
Stator inductance4 mH 68 °F (20 °C)
Stator resistance0.87 Ohm 68 °F (20 °C)
Temperature magnet rt68 °F (20 °C)
Maximum axial force fa0.2 x Fr
Number of motor stacks1
Temperature copper hot248 °F (120 °C)
Temperature magnet hot212 °F (100 °C)
Continuous stall torque29.2 lbf.in (3.3 N.m) LXM32.D30M2 10 A, 115 V, single phase 30.004 lbf.in (3.39 N.m) LXM15LD28M3, 230 V, three phase 30.09 lbf.in (3.4 N.m) LXM05AD28F1, 110...120 V, single phase 30.09 lbf.in (3.4 N.m) LXM05AD28M2 6 A, 200...240 V, single phase 30.09 lbf.in (3.4 N.m) LXM05AD42M3X, 200...240 V, three phase 30.09 lbf.in (3.4 N.m) LXM05BD28F1, 110...120 V, single phase 30.09 lbf.in (3.4 N.m) LXM05BD28M2, 200...240 V, single phase 30.09 lbf.in (3.4 N.m) LXM05BD42M3X, 200...240 V, three phase 30.09 lbf.in (3.4 N.m) LXM05CD28F1, 110...120 V, single phase 30.09 lbf.in (3.4 N.m) LXM05CD28M2, 200...240 V, single phase 30.09 lbf.in (3.4 N.m) LXM05CD42M3X, 200...240 V, three phase 23.9 lbf.in (2.7 N.m) LXM32.D18M2 6 A, 230 V, single phase
Maximum radial force fr530 N 5000 rpm 570 N 4000 rpm 630 N 3000 rpm 720 N 2000 rpm 900 N 1000 rpm
Accuracy error [angular]1.4 °
Centring collar diameter3.7 in (95 mm)
Maximum mechanical speed6000 rpm
Speed feedback resolution131072 points/turn x 4096 turns
Stator electrical time constant4.6 ms 68 °F (20 °C)
MPN
BSH1001T02F1A
