Schneider Electric BV4T003D
MPNBV4T003D
Obsolete

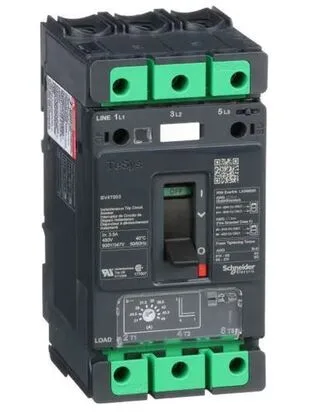

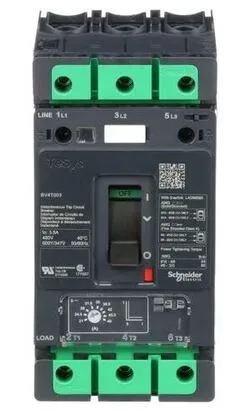

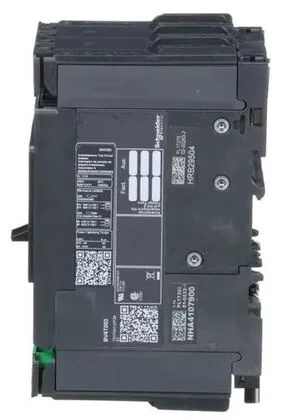

MOTOR CIRCUIT PROTECTOR TESYS BV4 STANDARD FAULT 3.5A 600Y/347 VA|MOTOR CIRCUIT PROTECTOR TESYS BV4 STANDARD FAULT 3.5A 600Y/347 VAC 21 TO 49 INSTANTANEOUS TRIP UP TO 100KA SCCR
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Protection type | Short-circuit |
| Product or component type | Motor Circuit Protector |
| [Ue] rated operational voltage | 600Y/347 V AC 50/60 Hz |
| Line rated current | 3.5 A 104 °F (40 °C) |
| Poles description | 3P |
| Utilisation category | Category A |
| IK degree of protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 front face IEC 60529 |
| Mounting mode | By clips By screws |
| Mounting support | 75 mm symmetrical DIN rail 35 mm symmetrical DIN rail Plate |
| Connection pitch | 1.06 in (27 mm) |
All specifications
| Parameter | Value |
|---|---|
| Electrical connection | 2 EverLink BTR screw connectors 0.002...0.1 in² (1.5...70 mm²) AWG 14...AWG 2/0), solid copper 2 EverLink BTR screw connectors 0.002...0.08 in² (1.5...50 mm²) AWG 6...AWG 1/0), flexible copper |
| Wire stripping length | 0.8 in (20 mm) |
| Operating altitude | 6561.68 ft (2000 m) without derating > 2000...5000 m with derating |
| Color | Gray RAL 7016) |
| Depth | 4.6 in (116 mm) |
| Width | 3.2 in (81 mm) |
| Height | 6.4 in (162 mm) |
| Electrical durability | 40000 cycles AC-3 440 V In/2 40000 cycles AC-3 440 V In |
| Mechanical durability | 40000 cycles |
| Standards | UL 489 CSA C22.2 No 5 |
| Range | TeSys |
| Category | US10I1101124 |
| Number of slots | 1 alarm switch fault signalling contact, plug-in 1 voltage release electrical remote tripping, plug-in 1 auxiliary switch open/close contact, plug-in |
| Local signalling | Flag (green) for presence of auxiliary contacts |
| Quantity per set | 1 |
| Device short name | BV4 |
| Safety category | Standard |
| Tightening torque | 44.3 lbf.in (5 N.m) 0.02 in² (10 mm²) (AWG 8) 79.7 lbf.in (9 N.m) 0.02 in² (16 mm²) (AWG 6) |
| Device application | Motor |
| Trip unit technology | Magnetic |
| Mechanical robustness | Vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 Vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 Shocks 15 gn 11 ms IEC 60068-2-27 |
| Magnetic setting range | 21...49 A 104 °F (40 °C) |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
