Schneider Electric C063H35AFM

Schneider Electric C063H35AFM

MPNC063H35AFM
Active

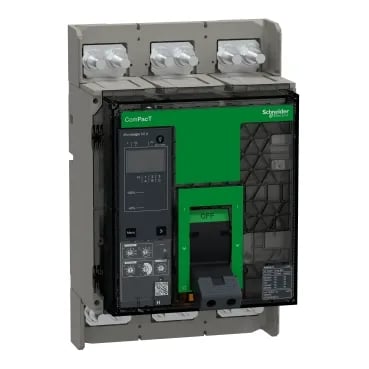

Circuit breaker, ComPacT NS630bH, 70kA at 415VAC, 3P, fixed, manually operated, MicroLogic 5.0A control unit, 630A

$3,543.72Ref. price · indicative, final on quote
Schneider Electric C063H35AFM datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

C063H35AFM key specifications
ParameterValue
Control typeManually operated
Display typeLCD display
Network typeAC
Protection typeL : for overload protection (long time) S : for short time short-circuit protection I : for instantaneous short-circuit protection
Range of productComPacT NS630b...1600 new generation
Type of measurementAmmeter
Product or component typeCircuit breaker
Long-time protection delay adjustment type trAdjustable 9 settings
Short-time protection delay adjustment type tsdAdjustable
Short-time protection pick-up adjustment type isdAdjustable 9 settings
Instantaneous protection pick-up adjustment type iiAdjustable
Long-time pick-up adjustment type ir (thermal protection)Adjustable 9 settings

All specifications

C063H35AFM additional specifications
ParameterValue
Voltage800 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947-2
[Icw] rated short-time withstand current19.2 kA 1 s conforming to IEC 60947-2
Breaking capacity85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Current630 A at 50 °C
Breaking capacity codeH 70 kA 415 V AC
[Ics] rated service breaking capacity50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Power losses10 W
Network frequency50/60 Hz
Poles3P
Protected poles description3D
Utilisation categoryCategory B
IK degree of protectionIK07 conforming to EN 50102
IP degree of protectionIP40 conforming to IEC 60529
Mounting modeFixed
Mounting supportBackplate
Connection pitch70 mm
Upside connectionFront
Downside connectionFront
Pollution degree3 conforming to IEC 60947
Relative humidity0...95 %
Operating altitude0...2000 m without derating 2000 m...5000 m with derating
Electrical shock protection classClass II on front face
Depth147 mm
Width210 mm
Height327 mm
Electrical durability2000 cycles at 690 V In 4000 cycles at 690 V In/2 5000 cycles at 440 V In 6000 cycles at 440 V In/2
Mechanical durability10000 cycles
StandardsEN/IEC 60947-2
RangeComPacT
Thermal memory20 mn
Trip unit nameMicroLogic 5.0 A
Local signalling4 LEDs (red) for fault indication 1 LED (yellow) for overload
Trip unit rating630 A at 50 °C
Device applicationDistribution
Overvoltage categoryIII
Trip unit technologyElectronic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to EN/IEC 60947-2
Auxiliary contact composition1 NO/NC
Trip unit protection functionsLSI
Zone selective interlocking ZSIWith
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C
[Tr] Long-Time delay adjustment range12.5...600 s at 1.5 x Ir 0.5...24 s at 6 x Ir 0.7...16.6 s at 7.2 x Ir
[Tsd] Short-Time delay adjustment range0.1...0.4 s I²t=on 0...0.4 s I²t=off
[Ir] long-time protection pick-up adjustment range0.4...1 x In
[Isd] short-time protection pick-up adjustment range1.5...10 x Ir
[Ii] instantaneous protection pick-up adjustment rangeOff 2...15 x In
MPN
C063H35AFM
