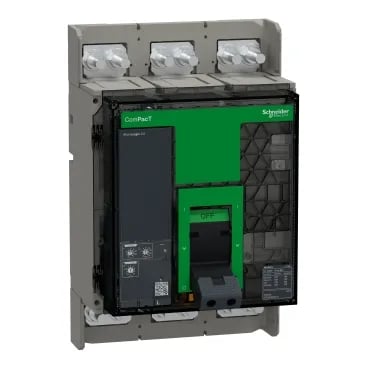

Schneider Electric C100L320FM

Schneider C100L320FM ComPacT NS MCCB, 1000 A, 150 kA

MPNC100L320FM
Active

Schneider C100L320FM Compact Ns New Generation — now discontinued, supplied from remaining surplus and broker stock.

$2,687.72Ref. price · indicative, final on quote
Schneider Electric C100L320FM datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

C100L320FM key specifications
ParameterValue
Control typeManually operated
Network typeAC
Protection typeL : for overload protection (long time) I : for instantaneous short-circuit protection
Range of productComPacT NS630b...1600 new generation
Product or component typeCircuit breaker
Long-time protection delay adjustment type trAdjustable 9 settings
Instantaneous protection pick-up adjustment type iiAdjustable
Long-time pick-up adjustment type ir (thermal protection)Adjustable 9 settings
Voltage800 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947-2
[Icw] rated short-time withstand current19.2 kA 1 s conforming to IEC 60947-2

All specifications

C100L320FM additional specifications
ParameterValue
Breaking capacity150 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 150 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 130 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
Current1000 A at 50 °C
Breaking capacity codeL 150 kA 415 V AC
[Ics] rated service breaking capacity150 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 150 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 130 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
Power losses34 W
Network frequency50/60 Hz
Poles3P
Protected poles description3D
Utilisation categoryCategory A
IK degree of protectionIK07 conforming to EN 50102
IP degree of protectionIP40 conforming to IEC 60529
Mounting modeFixed
Mounting supportBackplate
Connection pitch70 mm
Upside connectionFront
Downside connectionFront
Pollution degree3 conforming to IEC 60947
Relative humidity0...95 %
Operating altitude0...2000 m without derating 2000 m...5000 m with derating
Electrical shock protection classClass II on front face
Depth147 mm
Width210 mm
Height327 mm
Electrical durability2000 cycles at 690 V In 3000 cycles at 690 V In/2 3000 cycles at 440 V In 4000 cycles at 440 V In/2
Mechanical durability10000 cycles
StandardsEN/IEC 60947-2
RangeComPacT
Thermal memory20 mn
Trip unit nameMicroLogic 2.0
Local signalling4 LEDs (red) for fault indication 1 LED (yellow) for overload
Trip unit rating1000 A at 50 °C
Device applicationDistribution
Overvoltage categoryIII
Trip unit technologyElectronic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to EN/IEC 60947-2
Auxiliary contact composition1 NO/NC
Trip unit protection functionsLI
Zone selective interlocking ZSIWithout
Ambient air temperature for storage-50...85 °C
Ambient air temperature for operation-25...70 °C
[Tr] Long-Time delay adjustment range12.5...600 s at 1.5 x Ir 0.5...24 s at 6 x Ir 0.7...16.6 s at 7.2 x Ir
[Ir] long-time protection pick-up adjustment range0.4...1 x In
[Ii] instantaneous protection pick-up adjustment range1.5...10 x Ir

Product details

Overview

The C100L320FM is a Schneider ComPacT NS new generation 3-pole molded case circuit breaker rated 1000 A at 50 °C with a 150 kA breaking capacity at 690 V AC, carrying a MicroLogic 2.0 electronic trip unit for L and I protection. It is fixed-mounted, manually operated, and complies with EN/IEC 60947-2; the front face is Class II insulated, and the unit includes one NO/NC auxiliary contact.

Compared to the C160H320FM, the C100L320FM delivers a higher breaking capacity (150 kA vs 85 kA) but a lower switching current (1000 A vs 1600 A). Pick the C160H320FM when the load exceeds 1000 A and the available fault current stays under 85 kA; stay with the C100L320FM for high-fault panels up to 1000 A.
