Schneider Electric C1032M100
MPNC1032M100
Active

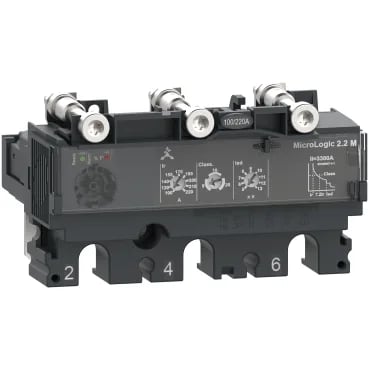

Trip unit MicroLogic 2.2M, ComPacT NSX100/160/250, 3 poles, electronic basic protections, motor protection, 100A rating
$126.49 – $345.47Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Protection type | L : for overload protection (long time) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection |
| Range of product | ComPacT NSX100...250 |
| Product or component type | Trip unit |
| Long-time protection delay adjustment type tr | Fixed |
| Short-time protection delay adjustment type tsd | Fixed |
| Short-time protection pick-up adjustment type isd | Adjustable 9 settings |
| Instantaneous protection pick-up adjustment type ii | Fixed |
| Long-time pick-up adjustment type ir (thermal protection) | Adjustable 9 settings |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
All specifications
| Parameter | Value |
|---|---|
| Protected poles description | 3D |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Circuit breaker mounting mode | Fixed |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Electrical shock protection class | Class II |
| Standards | EN/IEC 60947-2 |
| Range | ComPacT |
| Thermal memory | 20 minutes before and after tripping |
| Trip unit name | MicroLogic 2.2 M |
| Local signalling | Flashing LED (green) for ready to operate LED 95 % Ith (red) for temperature over set point |
| Trip unit rating | 100 A at 65 °C |
| Device application | Motor |
| Motor tripping class | 20 10 5 |
| Trip unit technology | Electronic |
| Earth-leakage protection | Without |
| Complementary motor protection | Phase unbalance |
| Trip unit protection functions | LSoI |
| Zone selective interlocking ZSI | Without |
| Ambient air temperature for storage | -50...85 °C |
| Ambient air temperature for operation | -25...70 °C |
| [Tr] Long-Time protection delay adjustment range | 120 s at 1.5 x Ir for trip class 5 6.5 s at 6 x Ir for trip class 5 5 s at 7.2 x Ir for trip class 5 240 s at 1.5 x Ir for trip class 10 13.5 s at 6 x Ir for trip class 10 10 s at 7.2 x Ir for trip class 10 480 s at 1.5 x Ir for trip class 20 26 s at 6 x Ir for trip class 20 20 s at 7.2 x Ir for trip class 20 |
| [Ir] long-time protection pick-up adjustment range | 50...100 A |
| [Isd] short-time protection pick-up adjustment range | 5...13 x Ir |
| [Ii] instantaneous protection pick-up adjustment range | 1500 A |
MPN
C1032M100
