Schneider Electric C10F4TM080 — Miniature Circuit Breakers (MCB)

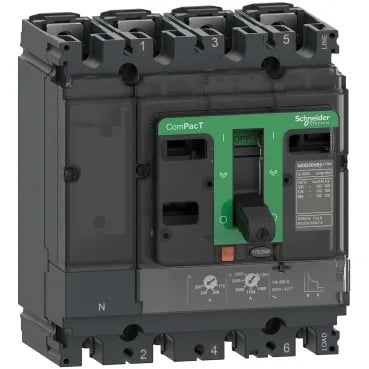

C10F4TM080 ComPacT NSX 80A 4P Thermal-Magnetic Circuit Break

MPNC10F4TM080
Active

Schneider Electric ComPacT NSX, NSX100F, 4P 80 A thermal-magnetic TM-D trip unit, 85 kA Icu at 240 V AC, toggle control, IP40.

$216.70 – $585.20Ref. price · indicative, final on quote
Schneider Electric C10F4TM080 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

C10F4TM080 — Identification
ParameterValue
Product nameComPacT NSX
Product rangeComPacT
Product/component typeCircuit breaker
Device applicationDistribution

Ratings

C10F4TM080 — Ratings
ParameterValue
Rated current (In)80 A at 40 °C
Poles configuration4P
Breaking capacity85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1 25 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1 10 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1
Rated service breaking capacity (Ics)85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 12 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 4 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Rated operational voltage (Ue)690 V AC 50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Network type (AC/DC)AC
Network frequency50/60 Hz
Utilisation categoryCategory A
Overvoltage categoryIII

Protection

C10F4TM080 — Protection
ParameterValue
Trip unit technologyThermal-magnetic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to EN/IEC 60947-2
Electrical durability (cycles)50000 cycles at 440 V In/2 30000 cycles at 440 V In 20000 cycles at 690 V In/2 10000 cycles at 690 V In
Mechanical durability (cycles)50000 cycles

Mechanical

C10F4TM080 — Mechanical
ParameterValue
Mounting supportBackplate
Control typeToggle

Environmental

C10F4TM080 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %

Approvals

C10F4TM080 — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Specifications

C10F4TM080 — Specifications
ParameterValue
[Ir] long-time protection pick-up adjustment range0.7...1 x In
Trip unit protection functionsLI

Product details

The C10F4TM080 is a Schneider Electric ComPacT NSX 4-pole 80 A thermal-magnetic MCCB from the NSX100F frame. It's built to EN/IEC 60947-2 with a TM-D trip unit providing L (overload) and I (short-circuit) protection. The 85 kA Icu at 240 V AC gives you headroom for high-fault distribution panels; at 415 V it still holds 36 kA Icu, which covers most industrial service-entrance and sub-feed applications.

Mounts flat on a backplate — no DIN rail. The 161 mm height, 140 mm width, and 86 mm depth fit standard panel layouts; connection pitch is 35 mm. Front-connect both sides, so you can bus it in a line-up without rear access. IP40 front face keeps tools and fingers out; IK07 impact resistance handles panel-door knocks.

Frequently asked questions

How do I get current pricing and availability for C10F4TM080?

Submit an RFQ — the C10F4TM080 is sourced to order through independent distribution, and pricing and stock levels are confirmed at quote time.

What is C10F4TM080's listed range (ComPacT) on this component line?

The C10F4TM080 belongs to the Schneider Electric ComPacT range, specifically the ComPacT NSX series.

What is C10F4TM080's listed depth (d) (86 mm) on this component line?

The C10F4TM080 has a depth of 86 mm.

What compliance documentation does this brand provide for C10F4TM080 (RoHS, REACH, UL, IEC)?

The C10F4TM080 is certified to EN/IEC 60947-2 and UL 60947-4-1. It carries an IP40 rating per IEC 60529 and IK07 per IEC 62262. Standard RoHS and REACH declarations are available from the manufacturer.

MPN
C10F4TM080
