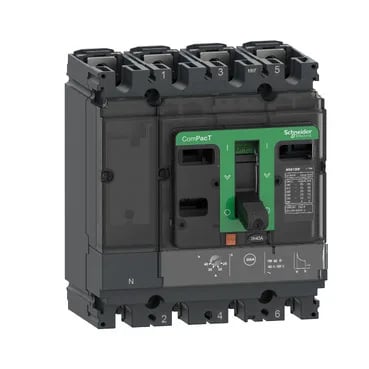

Schneider Electric C10F6TM080C — Miniature Circuit Breakers (MCB)

Schneider Electric C10F6TM080C ComPacT NSX100F, 80 A, 36 kA

MPNC10F6TM080C
Active

Schneider Electric ComPacT NSX100F, 4P, 80 A thermal-magnetic TM-D, 36 kA Icu at 415 V AC, toggle control.

Schneider Electric C10F6TM080C datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

C10F6TM080C — Identification
ParameterValue
Product nameComPacT NSX
Product rangeComPacT
Product/component typeCircuit breaker
Device applicationDistribution

Ratings

C10F6TM080C — Ratings
ParameterValue
Rated current (In)80 A at 50 °C
Poles configuration4P
Breaking capacity85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Rated service breaking capacity (Ics)85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 12 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 4 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Rated operational voltage (Ue)690 V AC 50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Network type (AC/DC)AC
Network frequency50/60 Hz
Utilisation categoryCategory A
Overvoltage categoryIII

Protection

C10F6TM080C — Protection
ParameterValue
Trip unit technologyThermal-magnetic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to EN/IEC 60947-2
Electrical durability (cycles)50000 cycles at 440 V In/2 30000 cycles at 440 V In 20000 cycles at 690 V In/2 10000 cycles at 690 V In
Mechanical durability (cycles)50000 cycles

Mechanical

C10F6TM080C — Mechanical
ParameterValue
Mounting supportBackplate
Control typeToggle

Environmental

C10F6TM080C — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %

Approvals

C10F6TM080C — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Specifications

C10F6TM080C — Specifications
ParameterValue
[Ir] long-time protection pick-up adjustment range0.7...1 x In
Trip unit protection functionsLI

Product details

It breaks 36 kA Icu at 380/415 V AC per IEC 60947-2, which is the typical line-to-line voltage in European 400 V distribution panels — so it handles fault currents up to that level without upstream fuses needing to open first. The 4-pole construction (3 phases + neutral) with neutral protection set to 3D (no protection) suits it for 3-phase, 4-wire systems where the neutral is a distributed conductor but not separately protected.

Breaking capacity — what the F code means for your panel

At 220/240 V AC it rises to 85 kA Icu; at 690 V AC it drops to 8 kA Icu. For a 400 V distribution board with a transformer of 1.5–2 MVA, 36 kA is typical for main or sub-main breakers. The C10F6TM080C is utilisation category A, meaning it is not intended for motor starting duty (no frequent on-off switching under load).

Panel integration — dimensions and mounting

Mounts on a backplate in any orientation — horizontal, vertical, or flat on the back. Dimensions: 161 mm H × 140 mm W × 86 mm D. Front connections top and bottom. Connection pitch 35 mm. IP40 front face; IK07 impact resistance. Operating altitude 0–2000 m without derating; derate above 2000 m.

Frequently asked questions

Where can I buy C10F6TM080C and how do I get a price?

The C10F6TM080C is sourced to order against an RFQ through independent distribution. Submit a request for quote; availability and current pricing are confirmed at quote time. No stock count or price figure is published here.

What is the closest alternative to C10F6TM080C in the ComPacT NSX family?

The closest alternative within the same frame size is the NSX100N (50 kA Icu at 415 V) or NSX100H (70 kA Icu at 415 V) with the same 80 A TM-D trip unit. The only difference is the interrupting rating — the mounting footprint and connection pitch are identical.

What compliance documentation does this brand provide for C10F6TM080C?

The C10F6TM080C is certified to EN/IEC 60947-2 and carries suitability for isolation per that standard. Pollution degree 3 per IEC 60664-1. IK07 and IP40 per IEC 62262 and IEC 60529. RoHS and REACH compliance documentation is available from the manufacturer upon request.
