Schneider Electric C10R35E100 — Molded Case Circuit Breakers (MCCB)

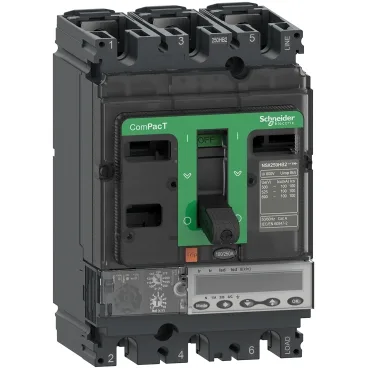

Schneider C10R35E100 ComPacT NSX circuit breaker, 100 A, 200 kA

MPNC10R35E100
Obsolete

Schneider Electric ComPacT NSX, new generation C10R35E100 molded case circuit breaker, 3-pole, 100 A, 200 kA ICu at 690 V AC, MicroLogic 5.2 E electronic trip unit, LSI protection, energy meter, fixed mount, toggle control, LCD display.

$2,094.11Ref. price · indicative, final on quote
Schneider Electric C10R35E100 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

C10R35E100 — Identification
ParameterValue
Product / component typeCircuit breaker
Device applicationDistribution
C10R35E100 — Electrical
ParameterValue
[In] rated current100 A at 40 °C
Breaking capacity200 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 200 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 200 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 80 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 45 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity200 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 200 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 200 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 80 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 45 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz
[Ui] rated insulation voltage800 V AC 50/60 Hz
C10R35E100 — Specifications
ParameterValue
Poles description3P
Trip unit nameMicroLogic 5.2 E
Trip unit technologyElectronic
Device short nameNSX100R
StandardsEN/IEC 60947-2

Product details

Overview

The C10R35E100 is a Schneider ComPacT NSX molded case circuit breaker rated 100 A at 40 °C with a 200 kA ICu breaking capacity at 690 V AC, built for distribution duty on a 3-pole fixed mount. It carries a MicroLogic 5.2 E electronic trip unit offering LSI protection (long-time, short-time, instantaneous) plus integrated energy metering with an LCD display — a step up from thermal-magnetic or basic frame units.

Compared to the C10F3TM025, a basic thermal-magnetic frame with fixed long-time delay and 85 kA ICu, the C10R35E100 delivers 200 kA ICu — over double the fault-clearing capacity — and adds adjustable LSI curves plus metering, making it the right choice for high-fault panels that also need power monitoring.

MPN
C10R35E100
