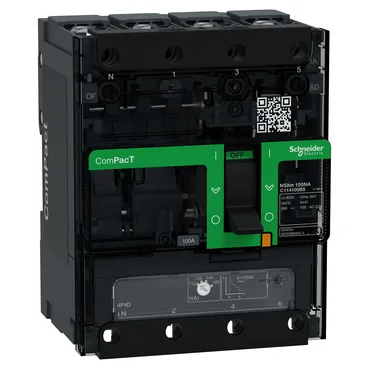

Schneider Electric C114100BS
MPNC114100BS
Active
C114100BS by SQUARE D
$182.88Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Switch disconnector |
| Voltage | 800 V |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 1500 A during 1 s 1500 A during 3 s 335 A during 20 s |
| [Ie] rated operational current | AC-23: 100 A AC 50/60 Hz AC-22: 100 A AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 2.13 kA switch-disconnector alone 150 kA with upstream protection circuit breaker |
| [Ith] conventional free air thermal current | 100 A at 40 °C |
| Poles description | 4P |
| Utilisation category | AC-22A AC-23A |
All specifications
| Parameter | Value |
|---|---|
| IK degree of protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail Backplate |
| Connection pitch | 27 mm |
| Connections - terminals | 1 crimp lug wire size 2.5...120 mm², rigid or stranded aluminium/copper 1 crimp lug wire size 2.5...95 mm², flexible aluminium/copper bars |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Electrical shock protection class | Class II |
| Depth | 80 mm |
| Width | 108 mm |
| Height | 137 mm |
| Electrical durability | AC-22A: 20000 cycles 440 V AC 50/60 Hz Ie/2 AC-23A: 20000 cycles 440 V AC 50/60 Hz Ie/2 AC-22A: 10000 cycles 440 V AC 50/60 Hz Ie AC-23A: 10000 cycles 440 V AC 50/60 Hz Ie AC-22A: 10000 cycles 690 V AC 50/60 Hz Ie/2 AC-23A: 6000 cycles 690 V AC 50/60 Hz Ie/2 AC-22A: 5000 cycles 690 V AC 50/60 Hz Ie AC-23A: 3000 cycles 690 V AC 50/60 Hz Ie |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 60947-1 EN/IEC 60947-3 |
| Range | ComPacT |
| Visible break | No |
| Device short name | NSXm 100NA |
| Device application | Distribution |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| Contact position indicator | Yes |
| Ambient air temperature for storage | -50...85 °C |
| Ambient air temperature for operation | -25...70 °C |
MPN
C114100BS
