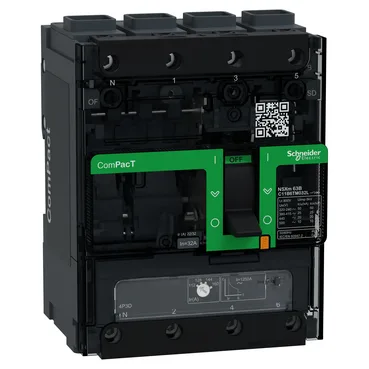

The C11B6TM032L is a Schneider Electric ComPacT NSXm 4-pole thermal-magnetic circuit breaker rated 32 A at 40 °C, with a breaking capacity of 25 kA at 415 V AC (performance level B). No earth-leakage protection is integrated, so if that is needed, an external residual-current device must be added downstream.
The 9 mm pitch occupies 12 modules of DIN-rail space. Connection is front-facing on both the line and load sides via a single Everlink lug per pole — accepts 2.5 to 95 mm² rigid or stranded aluminium/copper, or 2.5 to 70 mm² flexible copper. For panel builders: the connection pitch is 35 mm with spreaders, 27 mm without.
The 25 kA breaking capacity at 415 V AC (performance level B per IEC 60947-2) means this breaker can safely interrupt a fault current up to 25,000 A without welding its contacts or failing catastrophically — important for coordination studies where the upstream transformer can deliver high prospective fault current. The electrical durability is 20,000 cycles at rated current (In) at 440 V, and 10,000 cycles at In at 690 V — sufficient for most distribution switching duties but not for frequent motor starting (that would need a contactor).
