Schneider Electric C11B6TM050L — Miniature Circuit Breakers (MCB)

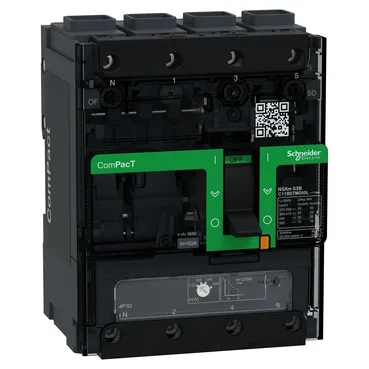

Schneider Electric C11B6TM050L ComPacT NSXm 50A 4P MCCB, 25

MPNC11B6TM050L
Active

Schneider Electric ComPacT NSXm, C11B6TM050L, 4P MCCB, 50 A at 40 °C, TM-D trip unit, 25 kA at 415 V AC, EN/IEC 60947-2.

$162.27 – $436.16Ref. price · indicative, final on quote
Schneider Electric C11B6TM050L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11B6TM050L — Identification
ParameterValue
Product nameComPacT NSXm
Product rangeComPacT
Product/component typeCircuit breaker
Device applicationDistribution
C11B6TM050L — Ratings
ParameterValue
Rated current (In)50 A at 40 °C
Poles configuration4P
Rated operational voltage (Ue)690 V AC 50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Network type (AC/DC)AC
Network frequency50/60 Hz
Utilisation categoryCategory A
Overvoltage categoryIII
C11B6TM050L — Protection
ParameterValue
Trip unit technologyThermal-magnetic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to IEC 60947-2
Electrical durability (cycles)20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In
Mechanical durability (cycles)20000 cycles
C11B6TM050L — Mechanical
ParameterValue
Mounting supportBackplate
Control typeToggle
Local signalling/indicationFlag (green) for presence of auxiliary contacts
Number of 9 mm pitches12 module
C11B6TM050L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
C11B6TM050L — Approvals
ParameterValue
StandardsEN/IEC 60947-2
C11B6TM050L — Electrical
ParameterValue
[Icu] rated ultimate short-circuit breaking capacity50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity50 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
C11B6TM050L — Specifications
ParameterValue
[Ir] long-time protection pick-up adjustment range0.7...1 x In
Trip unit protection functionsLI

Product details

Above that temperature, derate per the IEC 60947-2 thermal curve. Category A utilisation means it is not intended for current-limiting duty — the let-through energy is higher than a current-limiting breaker, so verify the downstream equipment's I²t withstand.

Mounts on a backplate in horizontal or vertical orientation. The 108 mm width, 137 mm height, and 80 mm depth fit standard enclosure cutouts. Front connection top and bottom simplifies busbar or cable routing. Everlink terminals accept 2.5…95 mm² rigid or stranded aluminium/copper, or 2.5…70 mm² flexible copper — no lug adaptors needed for the common wire sizes. IK07 impact resistance handles incidental tool contact during panel work.

Frequently asked questions

How do I get current pricing and availability for C11B6TM050L?

Submit an RFQ through the storefront; the part is sourced to order and pricing is confirmed at quote time.

What is C11B6TM050L's breaking capacity?

25 kA at 415 V AC, performance level B per EN/IEC 60947-2.

What terminals does the C11B6TM050L use?

Everlink lugs: one per pole, accepting 2.5…95 mm² rigid or stranded aluminium/copper, or 2.5…70 mm² flexible copper.
