What this MCCB delivers in the panel

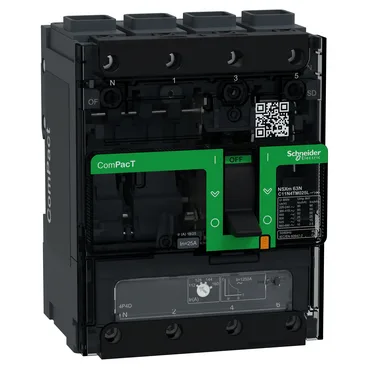

The Schneider Electric C11N4TM025L is a ComPacT NSXm 4-pole thermal-magnetic circuit breaker rated 25 A at 40 °C, with a 50 kA breaking capacity at 415 V AC (performance level N) per IEC 60947-2. The TM-D trip unit provides overload and short-circuit protection in one package — the thermal element tracks RMS current for overloads, the magnetic element reacts instantaneously to fault currents. Suitability for isolation is confirmed to IEC 60947-2, so it can serve as a visible disconnect in the distribution panel.
Integration and wiring
Mounts on a backplate in any orientation — horizontal, vertical, or flat — with front-facing terminals on both line and load sides. The Everlink lug terminals accept 2.5 to 95 mm² rigid or stranded aluminium/copper, or 2.5 to 70 mm² flexible copper, with a 35 mm connection pitch (27 mm without spreaders). 12-module width (108 mm) and 80 mm depth fit standard distribution enclosures. The grey RAL 7016 housing carries IP40 protection and IK07 impact resistance.
Lifecycle and sourcing
Listed as current production — no end-of-life notice on record. Sourced to order against an RFQ through independent distribution.
