Schneider Electric C16F3TM160
MPNC16F3TM160
Active

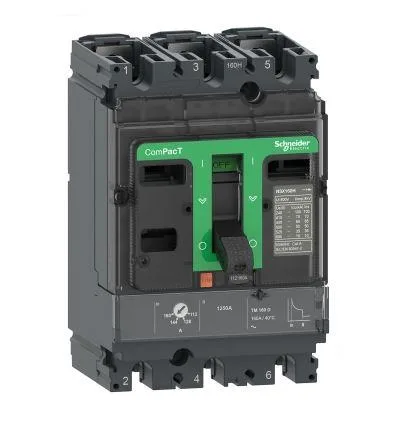

C16F3TM160 - COMPACT NSX160F by SCHNEIDER ELECTRIC
$421.64Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Product or component type | Circuit breaker |
| Long-time protection delay adjustment type tr | Fixed |
| Instantaneous protection pick-up adjustment type ii | Fixed |
| Long-time pick-up adjustment type ir (thermal protection) | Adjustable |
| Voltage | 800 V AC 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Breaking capacity | 85 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 36 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 35 kA Icu 440 V AC 50/60 Hz IEC 60947-2 30 kA Icu 500 V AC 50/60 Hz IEC 60947-2 22 kA Icu 525 V AC 50/60 Hz IEC 60947-2 8 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2 85 kA Icu 240 V AC 50/60 Hz UL 60947-4-1 35 kA Icu 480 V AC 50/60 Hz UL 60947-4-1 10 kA Icu 600 V AC 50/60 Hz UL 60947-4-1 |
| Line rated current | 160 A 104 °F (40 °C) |
All specifications
| Parameter | Value |
|---|---|
| Breaking capacity code | F 36 kA 415 V AC |
| [Ics] rated service breaking capacity | 85 kA 220/240 V AC 50/60 Hz IEC 60947-2 36 kA 380/415 V AC 50/60 Hz IEC 60947-2 35 kA 440 V AC 50/60 Hz IEC 60947-2 30 kA 500 V AC 50/60 Hz IEC 60947-2 22 kA 525 V AC 50/60 Hz IEC 60947-2 8 kA 660/690 V AC 50/60 Hz IEC 60947-2 |
| Power dissipation per pole | 13.95 W |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| Protected poles description | 3D |
| Utilisation category | Category A |
| IK degree of protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting support | Backplate |
| Mounting position | Horizontal and vertical Flat on the back |
| Circuit breaker mounting mode | Fixed |
| Connection pitch | 1.4 in (35 mm) |
| Upside connection | Front |
| Downside connection | Front |
| Pollution degree | 3 IEC 60664-1 |
| Relative humidity | 0...95 % |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating 2000 m...5000 m with derating |
| Electrical shock protection class | Class II front face |
| Depth | 3.4 in (86 mm) |
| Width | 4.1 in (105 mm) |
| Height | 6.3 in (161 mm) |
| Electrical durability | 40000 cycles 440 V In/2 20000 cycles 440 V In 15000 cycles 690 V In/2 7500 cycles 690 V In |
| Mechanical durability | 40000 cycles |
| Standards | EN/IEC 60947-2 |
| Range | ComPacT |
| Category | US10DE201101 |
| Trip unit name | TM-D |
| Number of slots | 5 |
| Trip unit rating | 160 A 104 °F (40 °C) |
| Device short name | NSX160F |
| Device application | Distribution |
| Overvoltage category | III |
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Without |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Trip unit protection functions | LI |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
| [Tr] Long-Time delay adjustment range | 120...400 s 1.5 x In 15 s 6 x Ir |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| [Ii] instantaneous protection pick-up adjustment range | 1250 A |
