Schneider Electric C2542D250
MPNC2542D250
Active

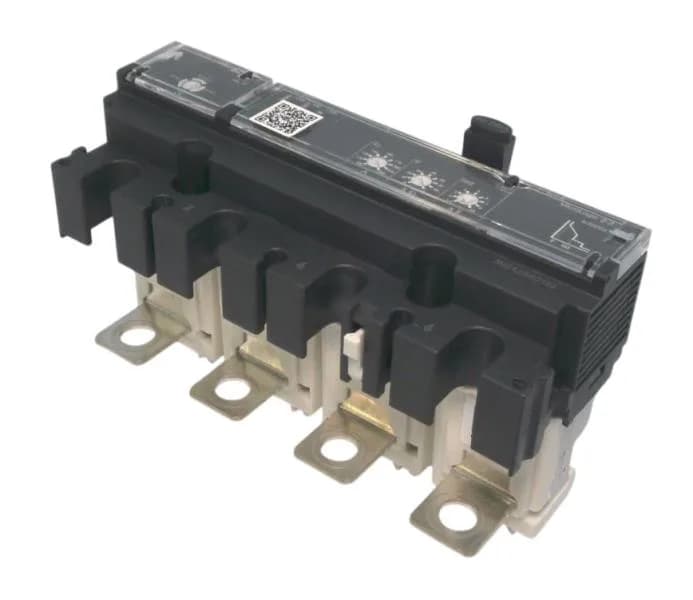

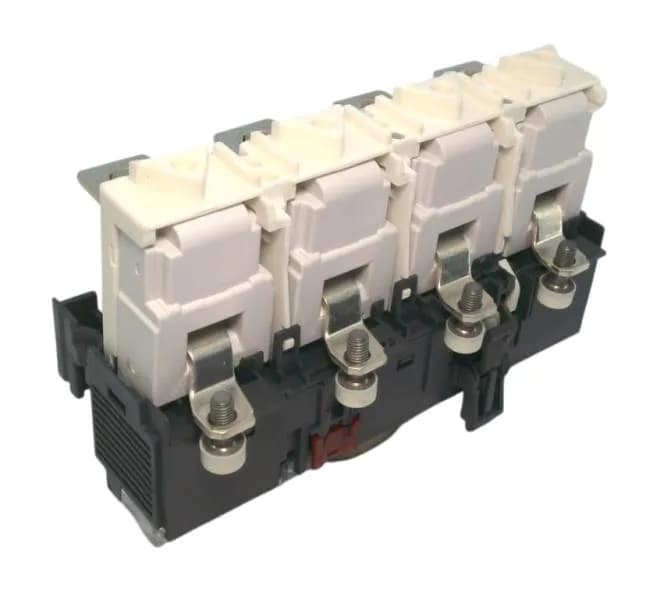

C2542D250 - FOR USE WITH NSX250 CIRCUIT BREAKERS by SQUARE D
$380.62Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Protection type | L : for overload protection (long time) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection |
| Range of product | ComPacT NSX100...250 |
| Product or component type | Trip unit |
| Long-time protection delay adjustment type tr | Fixed |
| Short-time protection delay adjustment type tsd | Fixed |
| Short-time protection pick-up adjustment type isd | Adjustable 9 settings |
| Instantaneous protection pick-up adjustment type ii | Fixed |
| Long-time pick-up adjustment type ir (thermal protection) | Adjustable 9 settings |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network frequency | 50/60 Hz |
| Poles description | 4P |
All specifications
| Parameter | Value |
|---|---|
| Protected poles description | 3D + N/2 4D 3D |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Circuit breaker mounting mode | Fixed |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Electrical shock protection class | Class II |
| Standards | EN/IEC 60947-2 |
| Range | ComPacT |
| Thermal memory | 20 minutes before and after tripping |
| Trip unit name | MicroLogic 2.2 |
| Local signalling | Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload |
| Neutral position | Left |
| Trip unit rating | 250 A at 40 °C |
| Device application | Distribution |
| Trip unit technology | Electronic |
| Earth-leakage protection | Without |
| Neutral protection settings | 0.5 x Ir (3D + N/2) 1 x Ir (4D) No protection (3D) |
| Trip unit protection functions | LSoI |
| Zone selective interlocking ZSI | Without |
| Ambient air temperature for storage | -50...85 °C |
| Ambient air temperature for operation | -25...70 °C |
| [Tr] Long-Time protection delay adjustment range | 11 s at 7.2 x Ir 16 s at 6 x Ir 400 s at 1.5 x Ir |
| [Ir] long-time protection pick-up adjustment range | 100...250 A |
| [Isd] short-time protection pick-up adjustment range | 1.5...10 x Ir |
| [Ii] instantaneous protection pick-up adjustment range | 3000 A |
MPN
C2542D250
