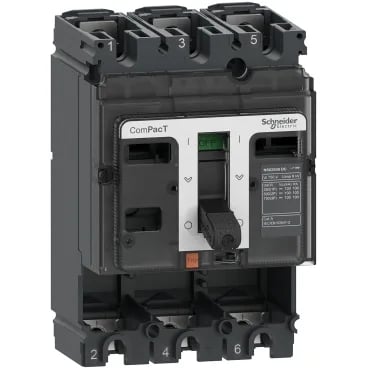

Schneider Electric C25F3D
MPNC25F3D
Active
Circuit breaker basic frame, ComPacT NSX250F DC, 36kA/750VDC, 3 poles, 250A frame rating, without trip unit
$373.50 – $388.26Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | DC |
| Protection type | Without protection |
| Product or component type | Basic frame |
| Voltage | 750 V DC conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 750 V DC conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Breaking capacity | 36 kA Icu at 250 V DC 1P conforming to IEC 60947-2 36 kA Icu at 24...125 V DC 1P conforming to IEC 60947-2 36 kA Icu at 500 V DC 2P conforming to IEC 60947-2 36 kA Icu at 750 V DC 3P conforming to IEC 60947-2 |
| Current | 250 A at 40 °C |
| Breaking capacity code | F 36 kA 750 V DC |
| [Ics] rated service breaking capacity | 36 kA at 250 V DC conforming to IEC 60947-2 (1P) 36 kA at 24...125 V DC conforming to IEC 60947-2 (1P) 36 kA at 500 V DC conforming to IEC 60947-2 (2P) 36 kA at 750 V DC conforming to IEC 60947-2 (3P) |
| Poles description | 3P |
All specifications
| Parameter | Value |
|---|---|
| Utilisation category | Category A |
| IK degree of protection | IK07 conforming to EN 50102 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting mode | Fixed |
| Mounting support | Backplate |
| Connection pitch | 35 mm |
| Upside connection | Front |
| Downside connection | Front |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Electrical shock protection class | Class II on front face |
| Depth | 86 mm |
| Width | 105 mm |
| Height | 161 mm |
| Electrical durability | 10000 cycles 250 V DC In/2 conforming to IEC 60947-2 10000 cycles 500 V DC In/2 conforming to IEC 60947-2 10000 cycles 750 V DC In/2 conforming to IEC 60947-2 5000 cycles 250 V DC In conforming to IEC 60947-2 5000 cycles 500 V DC In conforming to IEC 60947-2 5000 cycles 750 V DC In conforming to IEC 60947-2 |
| Mechanical durability | 10000 cycles conforming to IEC 60947-2 |
| Standards | EN/IEC 60947-2 |
| Range | ComPacT |
| Device short name | NSX250F DC |
| Device application | Distribution |
| Overvoltage category | III |
| Maximum breaking time | 10 ms |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Ambient air temperature for storage | -50...85 °C |
| Ambient air temperature for operation | -25...70 °C |
MPN
C25F3D
