Schneider Electric C25F4D — Miniature Circuit Breakers (MCB)

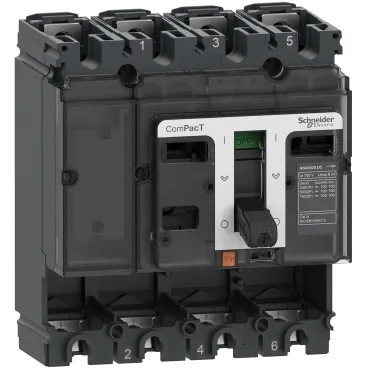

Schneider C25F4D ComPacT NSX250F DC basic frame, 250 A, 36 kA, 4-pole

MPNC25F4D
Active

Schneider Electric ComPacT NSX DC C25F4D basic frame, NSX250F DC, 250 A, 36 kA at 750 VDC, 4 poles, fixed mount, toggle control, without trip unit, EN/IEC 60947-2.

$261.83 – $517.25Ref. price · indicative, final on quote
Schneider Electric C25F4D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

C25F4D — Identification
ParameterValue
Product nameComPacT NSX DC
Product rangeComPacT
Product/component typeBasic frame
Device applicationDistribution
C25F4D — Ratings
ParameterValue
Rated current (In)250 A at 40 °C
Poles configuration4P
Breaking capacity36 kA Icu at 250 V DC 1P conforming to IEC 60947-2 36 kA Icu at 24...125 V DC 1P conforming to IEC 60947-2 36 kA Icu at 500 V DC 2P conforming to IEC 60947-2 36 kA Icu at 750 V DC 3P conforming to IEC 60947-2
Rated service breaking capacity (Ics)36 kA at 250 V DC conforming to IEC 60947-2 (1P) 36 kA at 24...125 V DC conforming to IEC 60947-2 (1P) 36 kA at 500 V DC conforming to IEC 60947-2 (2P) 36 kA at 750 V DC conforming to IEC 60947-2 (3P)
Rated operational voltage (Ue)750 V DC conforming to IEC 60947-2
Rated insulation voltage (Ui)750 V DC conforming to IEC 60947-2
Rated impulse withstand voltage (Uimp)8 kV conforming to IEC 60947-2
Network type (AC/DC)DC
Utilisation categoryCategory A
Overvoltage categoryIII
C25F4D — Protection
ParameterValue
Suitability for isolationYes conforming to EN/IEC 60947-2
Electrical durability (cycles)10000 cycles 250 V DC In/2 conforming to IEC 60947-2 10000 cycles 500 V DC In/2 conforming to IEC 60947-2 10000 cycles 750 V DC In/2 conforming to IEC 60947-2 5000 cycles 250 V DC In conforming to IEC 60947-2 5000 cycles 500 V DC In conforming to IEC 60947-2 5000 cycles 750 V DC In conforming to IEC 60947-2
Mechanical durability (cycles)10000 cycles conforming to IEC 60947-2
C25F4D — Mechanical
ParameterValue
Mounting supportBackplate
Mounting modeFixed
Control typeToggle
C25F4D — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
C25F4D — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

Overview

The C25F4D is a Schneider ComPacT NSX250F DC basic frame rated 250 A with a 36 kA breaking capacity at 750 VDC, built for 4-pole DC distribution in a fixed-mount toggle-operated package. It is a bare frame without a trip unit, designed for DC networks and compliant with EN/IEC 60947-2, with a 750 VDC insulation rating and suitability for isolation.

For a line-down or last-time-buy situation, an RFQ confirms available quantity and lead time from our multi-source network.

Against the 3-pole C25F3D (NSX250F DC, 250 A, 36 kA), the C25F4D adds a fourth pole for DC circuits requiring a switched neutral or full 4-pole isolation — the C25F3D fits when the BOM specifies 3 poles.
