Name: C25F4TM250
Brand: Schneider Electric
SKU: C25F4TM250
Availability: LimitedAvailability

Specifications

Identification

C25F4TM250 — Identification
Parameter	Value
Product / component type	Circuit breaker
Device application	Distribution

Electrical

C25F4TM250 — Electrical
Parameter	Value
[In] rated current	250 A at 40 °C
Breaking capacity	85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1 35 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1 15 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1
[Ics] rated service breaking capacity	85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 22 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 8 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Ui] rated insulation voltage	800 V AC 50/60 Hz

Specifications

C25F4TM250 — Specifications
Parameter	Value
Poles description	4P
Trip unit name	TM-D
Trip unit technology	Thermal-magnetic
Device short name	NSX250F
Standards	EN/IEC 60947-2

Product details

Overview

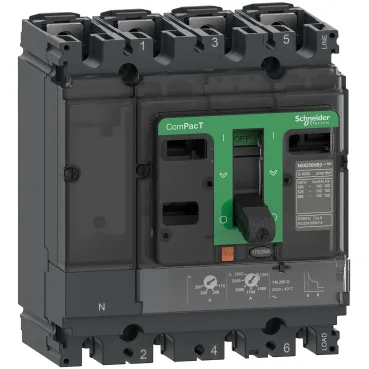

The C25F4TM250 is a Schneider ComPacT NSX molded case circuit breaker rated 250 A at 40 °C with a 4-pole configuration and a thermal-magnetic TM-D trip unit providing L (overload) and I (short-circuit) protection. Its breaking capacity reaches 85 kA ICu at 690 V AC, meeting IEC 60947-2, and the fixed-mount design with front connection surfaces suits distribution panelboards and switchboards.

How it compares

Compared to the 3-pole C10F3TM025 rated 25 A, the C25F4TM250 carries a 250 A continuous rating and 4 poles, making it the correct choice for three-phase plus neutral distribution feeders rather than branch circuits.

Specifications

Identification

C25F4TM250 — Identification
Parameter	Value
Product / component type	Circuit breaker
Device application	Distribution

Electrical

C25F4TM250 — Electrical
Parameter	Value
[In] rated current	250 A at 40 °C
Breaking capacity	85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1 35 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1 15 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1
[Ics] rated service breaking capacity	85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 22 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 8 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Ui] rated insulation voltage	800 V AC 50/60 Hz

Specifications

C25F4TM250 — Specifications
Parameter	Value
Poles description	4P
Trip unit name	TM-D
Trip unit technology	Thermal-magnetic
Device short name	NSX250F
Standards	EN/IEC 60947-2

Product details

Schneider C25F4TM250 ComPacT NSX MCCB, 250 A, 4-pole, 85 kA
