Schneider Electric C60HC10R30
MPNC60HC10R30
Obsolete

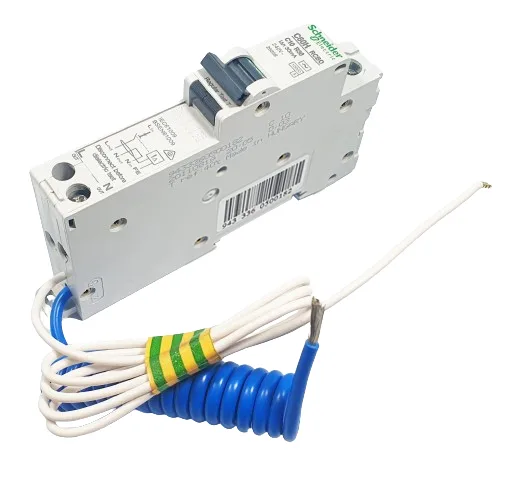

C60HC10R30 - MINIATURE CIRCUIT BREAKER by MERLIN GERIN
$76.20Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Range of product | C60 |
| [Ue] rated operational voltage | 50...250 V AC 50/60 Hz |
| Breaking capacity | 10 kA Icu at 50...250 V AC 50/60 Hz conforming to IEC 1009 |
| Current | 10 A at 30 °C |
| Network frequency | 50/60 Hz |
| Poles description | 1P + N |
| Mounting support | 35 mm symmetrical DIN rail |
| Connections - terminals | Tunnel type terminals (downstream) 10 mm² flexible Tunnel type terminals (downstream) 16 mm² rigid Tunnel type terminals (upstream) 16 mm² flexible Tunnel type terminals (upstream) 25 mm² rigid |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
All specifications
| Parameter | Value |
|---|---|
| Electrical durability | 20000 cycles |
| Standards | IEC 1009-2-2 |
| Curve code | C |
| 9 mm pitches | 2 |
| Tropicalisation | 2 |
| Limitation class | 3 conforming to EN 60898 |
| Local signalling | Positive break indication |
| Neutral position | Right |
| Device short name | C60H RCBO |
| Tightening torque | 2 N.m |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 5...10 x In |
| Earth-leakage protection | With |
| Device location in system | Outgoer |
| Earth-leakage sensitivity | 30 mA |
| Circuit breaker application | Distribution |
| Earth-leakage protection class | Class AC |
| Earth-leakage protection time delay | Instantaneous |
MPN
C60HC10R30
