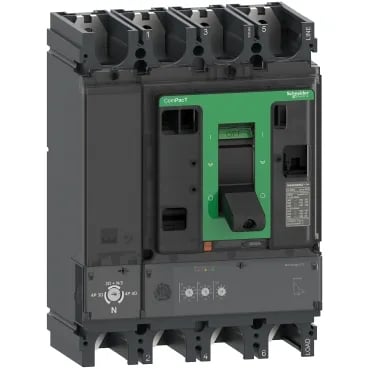

Schneider C63H42D630 Compact Breaker 70kA
MPNC63H42D630
Active
C63H42D630 - NSX630H 70KA AC 4P4D 630A 2.3 by SCHNEIDER ELECTRIC
$1,940.56Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Protection type | L : for overload protection (long time) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection |
| Product or component type | Circuit breaker |
| Long-time protection delay adjustment type tr | Fixed |
| Short-time protection delay adjustment type tsd | Fixed |
| Short-time protection pick-up adjustment type isd | Adjustable 9 settings |
| Instantaneous protection pick-up adjustment type ii | Fixed |
| Long-time pick-up adjustment type ir (thermal protection) | Adjustable 9 settings |
| Voltage | 800 V AC 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
All specifications
| Parameter | Value |
|---|---|
| Breaking capacity | 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1 65 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1 20 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1 |
| Current | 630 A at 40 °C |
| Breaking capacity code | H 70 kA 415 V AC |
| [Ics] rated service breaking capacity | 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Power dissipation per pole | 39.7 W |
| Network frequency | 50/60 Hz |
| Poles description | 4P |
| Protected poles description | 4D 3D + N/2 3D |
| Utilisation category | Category A |
| IK degree of protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting support | Backplate |
| Mounting position | Horizontal and vertical Flat on the back |
| Circuit breaker mounting mode | Fixed |
| Connection pitch | 45 mm |
| Upside connection | Front |
| Downside connection | Front |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Relative humidity | 0...95 % |
| Operating altitude | 0...2000 m without derating 2000 m...5000 m with derating |
| Electrical shock protection class | Class II on front face |
| Depth | 110 mm |
| Width | 185 mm |
| Height | 255 mm |
| Electrical durability | 8000 cycles at 440 V In/2 4000 cycles at 440 V In 6000 cycles at 690 V In/2 2000 cycles at 690 V In |
| Mechanical durability | 15000 cycles |
| Standards | EN/IEC 60947-2 |
| Range | ComPacT |
| Thermal memory | 20 minutes before and after tripping |
| Trip unit name | MicroLogic 2.3 |
| Number of slots | 6 slot(s) |
| Local signalling | Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload |
| Neutral position | Left |
| Trip unit rating | 630 A at 40 °C |
| Device short name | NSX630H |
| Device application | Distribution |
| Overvoltage category | III |
| Trip unit technology | Electronic |
| Earth-leakage protection | Without |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Neutral protection setting | 0.5 x Ir (3D + N/2) 1 x Ir (4D) No protection (3D) |
| Trip unit protection functions | LSoI |
| Zone selective interlocking ZSI | Without |
| Ambient air temperature for storage | -50...85 °C |
| Ambient air temperature for operation | -25...70 °C |
| [Tr] Long-Time delay adjustment range | 400 s at 1.5 x Ir 16 s at 6 x Ir 11 s at 7.2 x Ir |
| [Ir] long-time protection pick-up adjustment range | 250...630 A |
| [Isd] short-time protection pick-up adjustment range | 1.5...10 x Ir |
| [Ii] instantaneous protection pick-up adjustment range | 6900 A |
MPN
C63H42D630
