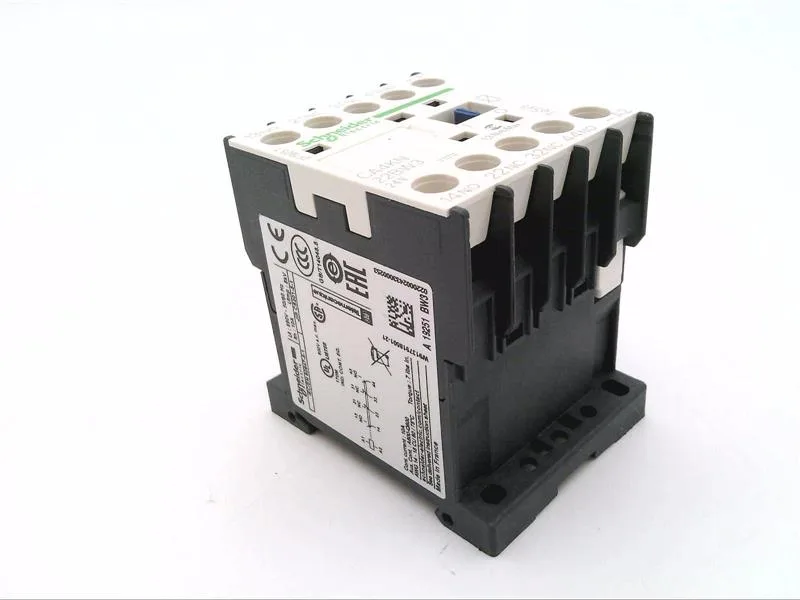

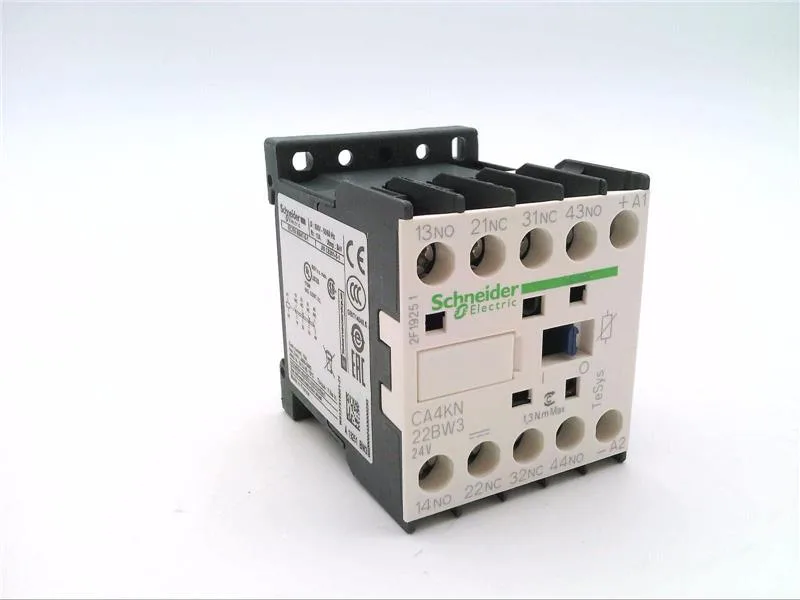

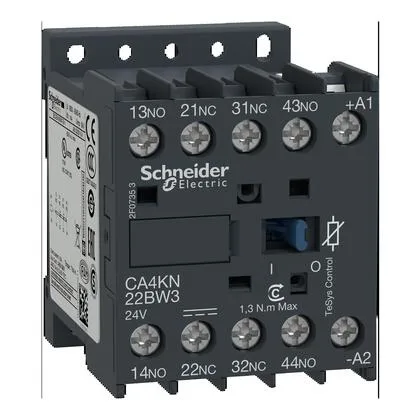

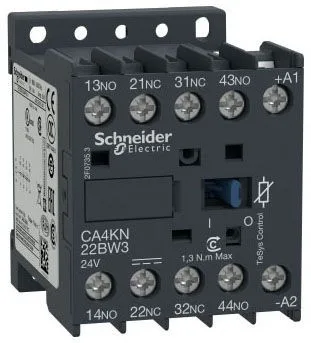

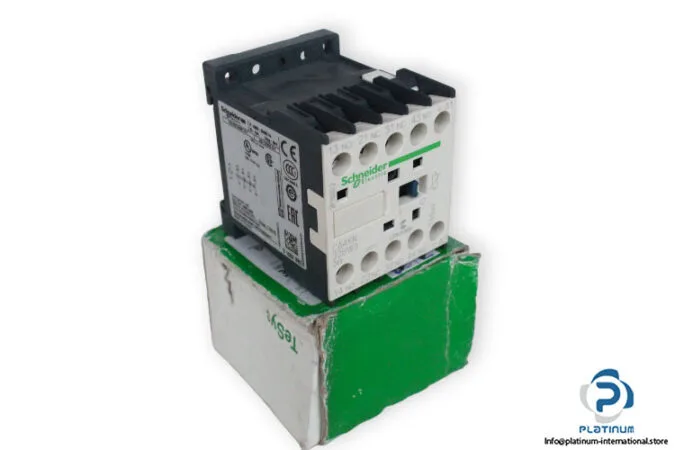

Schneider Electric CA4KN22BW3
MPNCA4KN22BW3
Active
Control Relay, TeSys K, 2NO - 2NC, lt or Equal to 690VAC, 24VDC Low Consumption Coil|Control Relay, TeSys K, 2 Normally Open - 2 Normally Closed, lt or Equal to 690 Volt AC, 24 Volt DC Low Consumption Coil
$21.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Control relay |
| [Ue] rated operational voltage | 10 MOhm |
| Pole contact composition | 2 NO + 2 NC |
| Utilisation category | DC-13 AC-15 |
| IP degree of protection | IP2X |
| Operating altitude | 6561.68 ft (2000 m) without derating |
| Depth | 2.2 in (57 mm) |
| Width | 1.8 in (45 mm) |
| Height | 2.3 in (58 mm) |
| Standards | EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1 |
| Range | TeSys |
| Category | US10I1222371 |
All specifications
| Parameter | Value |
|---|---|
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Device short name | CA4K |
| Protective treatment | TC IEC 60068 |
| Contactor application | Control circuit |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Shocks contactor open10 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed15 Gn for 11 ms IEC 60068-2-27 |
| Ambient air temperature for storage | -58...176 °F (-50...80 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
MPN
CA4KN22BW3
