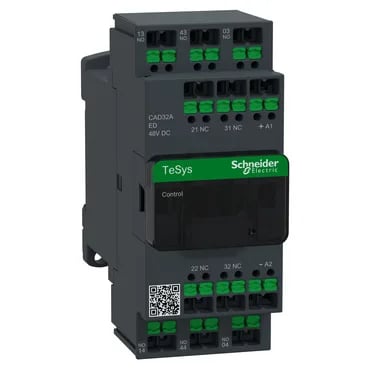

The Schneider CAD32AED is a TeSys Deca control relay with a 3NO+2NC pole contact composition, rated for control circuit applications up to 690V. Its 48V DC coil is the standard variant, and the snap-in terminals simplify panel wiring — no separate screw-clamp torque check needed on the relay side. The utilisation categories cover AC-15 (solenoid loads up to 720 VA make / 72 VA break at 240 V), AC-14 (contactor coils), and DC-13 (solenoid valves), so this relay handles the inductive kick typical of contactor and solenoid circuits in a control panel.
The relay carries certifications to EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, and JIS C8201-5-1, which covers acceptance in European, North American, Chinese, and Japanese markets. Protective treatment TH per IEC 60068 means it's suitable for tropical/humid environments.
The snap-in terminals accept the same ferrule sizes as the TeSys contactor range, so no change in wiring practice when pairing with a Deca contactor. Storage range extends from -60 to 80 °C. Altitude rating to 3000 m without derating.
