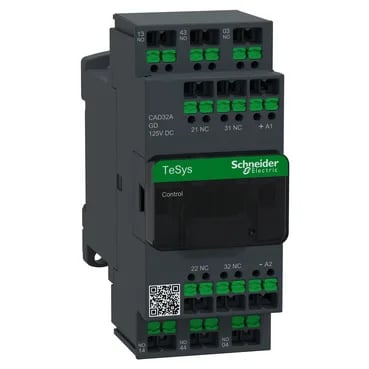

Rated for utilisation categories AC-15, AC-14, and DC-13, it handles the inrush and breaking demands of solenoid valves, contactor coils, and indicator loads common in motor control centres. The 125 VDC standard coil and snap-in terminals mean it drops into a DIN-rail enclosure without extra mounting hardware — a fast swap for a line-down MRO call.
Fit and integration notes
Dimensions of 107 mm high, 45 mm wide, and 93 mm deep fit a standard 45 mm DIN-rail footprint; the IP2X front face (conforming to VDE 0106) allows finger-safe access in open panels. Rated operational voltage up to 690 V, with an operating temperature range of -40 to 60 °C (derated to 70 °C) and storage from -60 to 80 °C, so it handles both heated cabinet and cold warehouse conditions. Mechanical robustness includes shock survival at 10 Gn (relay open) and 15 Gn (relay closed), plus vibration resistance to 2 Gn open / 4 Gn closed across 5–300 Hz — enough for conveyor and pump applications.
Compliant with EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, and JIS C8201-5-1, covering control circuit devices for global panel builds. The TH protective treatment conforms to IEC 60068 for tropical environments, and the 0–3000 m operating altitude covers most installations without derating.
