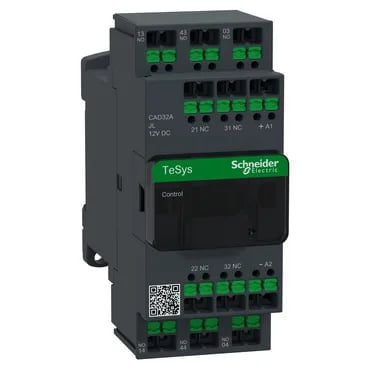

The Schneider Electric CAD32AJL is a TeSys Deca control relay with a 3 NO + 2 NC pole contact composition, rated for operational voltages up to 690 V and a 12 V DC low consumption coil. Rated for utilisation categories AC-15, AC-14, and DC-13 per EN/IEC 60947-5-1, this relay handles solenoid and contactor coil loads (AC-15) and resistive/inductive DC loads (DC-13) in control circuits. That means it's built for the dirty work of switching contactor coils, pilot lights, and small solenoid valves — not for power switching.
At 45 mm wide and 107 mm tall, it takes up one standard modular space. Depth of 93 mm leaves clearance for wiring in a shallow enclosure — no need to oversized the gland plate just for this relay. Rated for ambient operation from -40 °C to 60 °C, with derating up to 70 °C. That covers unheated electrical rooms and outdoor cabinets in most climates. Shock-rated at 10 Gn for 11 ms (relay open) and 15 Gn (relay closed), and vibration-rated at 2 Gn (open) and 4 Gn (closed) across 5–300 Hz. That's enough to hold contact on a conveyor line or near a pump — I've buried plenty of relays that couldn't take that kind of shaking.
Compliant with EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, and JIS C8201-5-1. That covers the major markets — Europe, North America, China, Japan — so it's a single part number for global panel builds. Protective treatment TH per IEC 60068 handles tropical humidity.
