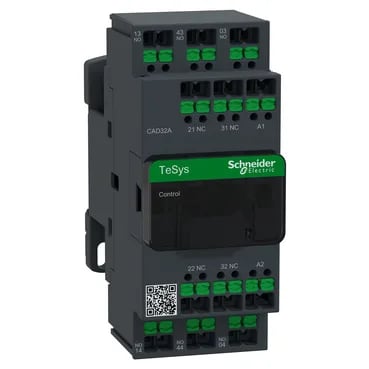

It carries a 200 V AC standard coil and terminates via snap-in terminals — no screwdriver needed for the coil or auxiliary wiring, which speeds panel assembly. The utilisation categories AC-15, AC-14, and DC-13 tell you exactly what loads it can switch: AC-15 covers solenoid valves and electromagnetic brakes above 72 VA, AC-14 handles small electromagnetic loads below 72 VA, and DC-13 governs DC solenoids and contactors. That means this relay is sized for pilot-duty switching inside a control panel, not for powering motors directly.
Operating temperature range is -40 to 60 °C, with derating allowed up to 70 °C; storage range is -60 to 80 °C. The TH protective treatment per IEC 60068 means the coil and contacts are tropicalised against humidity and condensation — relevant for unheated enclosures or washdown-adjacent areas.
The relay is certified to EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, and JIS C8201-5-1. That covers the main industrial control-gear standards for North America, Europe, China, and Japan — so it passes inspection for panels built to any of those codes. Mechanical robustness is rated for 10 Gn shocks (open contacts) and 15 Gn (closed), plus vibration resistance at 2 to 4 Gn over 5 to 300 Hz, all per IEC 60068-2-27 and -2-6. Operating altitude is 0 to 3000 m without derating.
