It's built for control-circuit switching, not motor starting — the utilisation categories AC-15, AC-14, and DC-13 tell you it's rated for solenoid, electromagnetic, and resistive loads typical in PLC output isolation, valve control, and interposing relay panels. The 415 V AC standard coil on this variant pulls straight from the line-to-neutral or phase-to-phase control transformer without a separate DC supply. Snap-in terminals clip onto a DIN rail with captive wiring terminals.
Dimensions are 45 mm wide, 107 mm tall, 93 mm deep. The IP2X front face protection (conforming to VDE 0106) means finger-safe from the front but not sealed. Operating temperature spans -40 to 60 °C, with derating allowed up to 70 °C. Storage range is -60 to 80 °C. Altitude is rated to 3000 m without derating — fine for most industrial sites outside high-mountain installations. The TH protective treatment (conforming to IEC 60068) adds tropicalisation for humid or condensation-prone environments. Mechanical robustness is specified: shocks up to 10 Gn for 11 ms (relay open) and 15 Gn (relay closed), vibrations at 2 Gn open and 4 Gn closed across 5-300 Hz. That's enough for most conveyor, pump, and compressor applications but not extreme off-road or marine deck mounting without additional isolation.

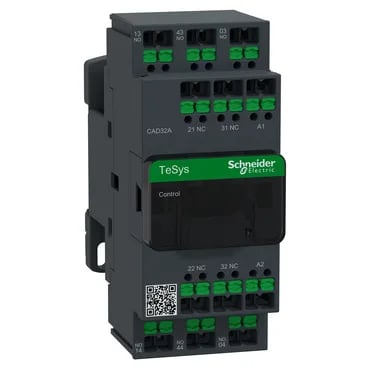

The CAD32AN7 carries approvals under EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, and JIS C8201-5-1. No separate marine or ATEX listing in the evidence.
