Schneider Electric CCT15492
MPNCCT15492
Obsolete

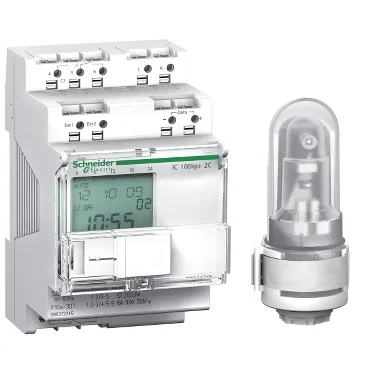

Acti9 - IC100kp+ - 2C prog twilight switch w. time sw. function - 1...99000 lux
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Load type | 20 x 58 W dual mounted fluorescent tube with conventional ballast 10 x 100 W non-corrected fluorescent tube with conventional ballast 10 x 100 W serial-corrected fluorescent tube with conventional ballast 2 x 100 W parallel-corrected fluorescent tube with conventional ballast 20 x 58 W non-corrected fluorescent tube with conventional ballast 20 x 58 W serial-corrected fluorescent tube with conventional ballast 26 x 36 W non-corrected fluorescent tube with conventional ballast 26 x 36 W serial-corrected fluorescent tube with conventional ballast 26 x 36 W dual mounted fluorescent tube with conventional ballast 10 x 100 W dual mounted fluorescent tube with conventional ballast 6 x 58 W parallel-corrected fluorescent tube with conventional ballast 230 V AC halogen lamp: 2600 W 230 V AC incandescent lamp: 2600 W 26 x 36 W parallel-corrected fluorescent tube with conventional ballast 18 x 11 W fluocompact lamp with electronic ballast 16 x 15 W fluocompact lamp with electronic ballast 16 x 20 W fluocompact lamp with electronic ballast 14 x 23 W fluocompact lamp with electronic ballast 22 x 7 W fluocompact lamp with electronic ballast fluorescent tube with electronic ballast: 650 VA motor: 2300 VA parallel-corrected mercury and sodium vapour lamps: 800 VA |
| Battery type | Lithium |
| Control type | By brightness detection |
| Display type | Backlit LCD |
| Type of setting | Weekly programming |
| Range of product | Acti9 |
| Product or component type | Programmable twilight switch with time switch function |
| [Ue] rated operational voltage | 100...240 V AC +10 % -15 % at 50/60 Hz |
| Maximum switching current | 10 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1 |
| Power reserve | 10 years |
| Power consumption in | 3 VA |
| IP degree of protection | IP20C Sensor: IP55 |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | DIN rail |
| Cable stiffness | Flexible Rigid |
| Connections - terminals | 2 x 2.5 mm² screwless terminals |
| Depth | 69 mm |
| Width | 54 mm |
| Height | 90 mm |
| Standards | EN 60529 |
| 9 mm pitches | 6 |
| User language | Spanish Czech Romanian Bulgarian English French Portuguese Greek Slovene Polish Serbian Hungarian Croatian Slovak |
| Time delay range | <= 60 s (on contact breaking) |
| Device short name | IC100k |
| Compatibility code | IC100kp |
| Device application | Building |
| Channels | 2 |
| Provided equipment | digital switchboard cell programming kit for PC digital wall-mounted cell memory key |
| Light intensity adjustment | 1...99000 lux |
| Electrical insulation class | Class II |
| Maximum number of programming range | 84 |
| Ambient air temperature for operation | -30...50 °C |
| Minimum interval duration between 2 cycles | 1 min |
MPN
CCT15492
