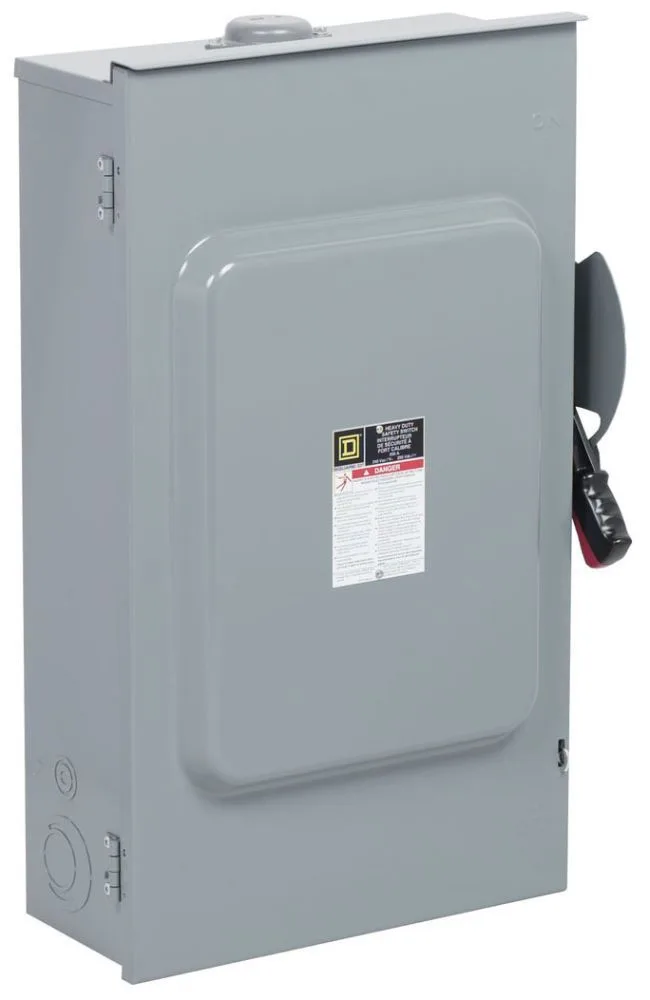

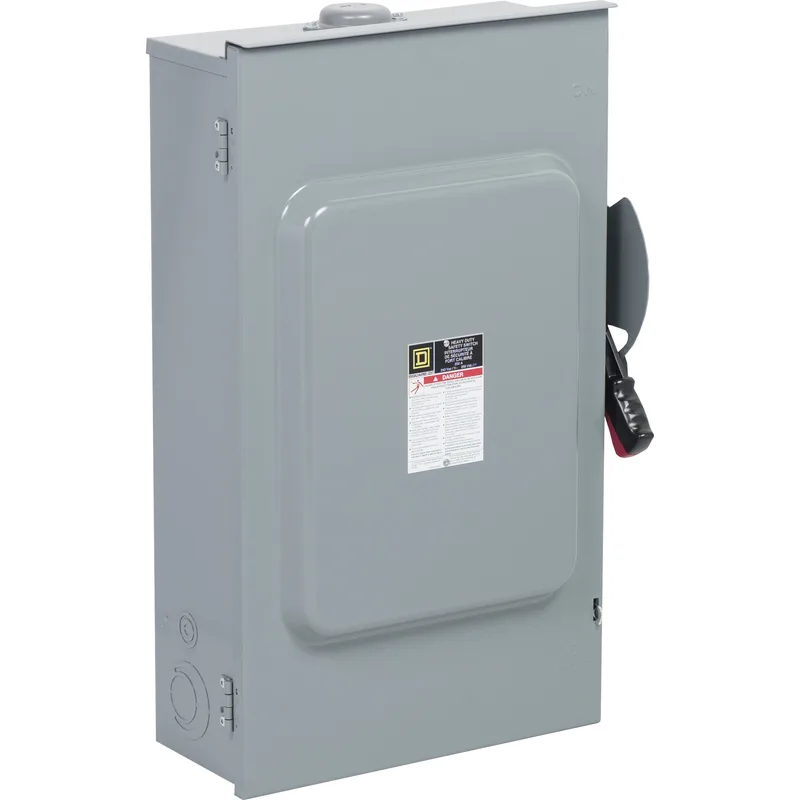

Schneider Electric CH224NRB

Schneider CH224NRB heavy duty safety switch, 200 A, 60 hp, discontinued

MPNCH224NRB
Obsolete

Schneider CH224NRB Dual Element Fuses — now discontinued, supplied from remaining surplus and broker stock.

$1,585.00Ref. price · indicative, final on quote
Schneider Electric CH224NRB datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

CH224NRB specifications
ParameterValue
MountingSurface
Disconnect typeFusible disconnect
Voltage rating240 V DC 250 V AC
Line rated current200 A
Standard motor power rating15 hp at 240 V AC 50-60 Hz for 1 phase motors 25 hp at 240 V AC 50...60 kHz for 3 phase motors 60 hp at 240 V AC 50...60 kHz for 3 phase motors 40 hp at 250 V DC
Poles2
Duty ratingHeavy duty
IP ratingNEMA 3R galvannealed steel
Wire AWGAWG 6...250 kcmil copper or aluminium
Electrical connectionLugs
Depth8.5 in (215.9 mm)
Width17.13 in (435.10 mm)
Height29.25 in (742.95 mm)
CertificationsCSA
ProductSingle Throw Safety Switch
CategoryUS10DE100153
Tightening torque275 lbf.in (31.07 N.m) 0.02...0.2 in² (13.30...127 mm²) (AWG 6...250 kcmil)
Factory installed neutralNeutral (factory installed)

Product details

Overview

The CH224NRB is a Schneider heavy duty fusible safety switch rated 200 A at 240 VAC, 2-pole, 60 hp, in a NEMA 3R galvannealed steel enclosure with a factory-installed neutral and lugs for AWG 6 to 250 kcmil copper or aluminium.

An RFQ confirms available quantity and lead time for line-down or last-time-buy needs.

Comparison with CH222NRB

The CH224NRB switches 200 A at 60 hp, while the CH222NRB is rated 60 A at 15 hp — both 2-pole, 240 VAC, NEMA 3R. The CH224NRB handles four times the horsepower and over three times the current, so the CH222NRB is not a drop-in for the same load.

MPN
CH224NRB
