Schneider Electric CH323NRB
MPNCH323NRB
Obsolete

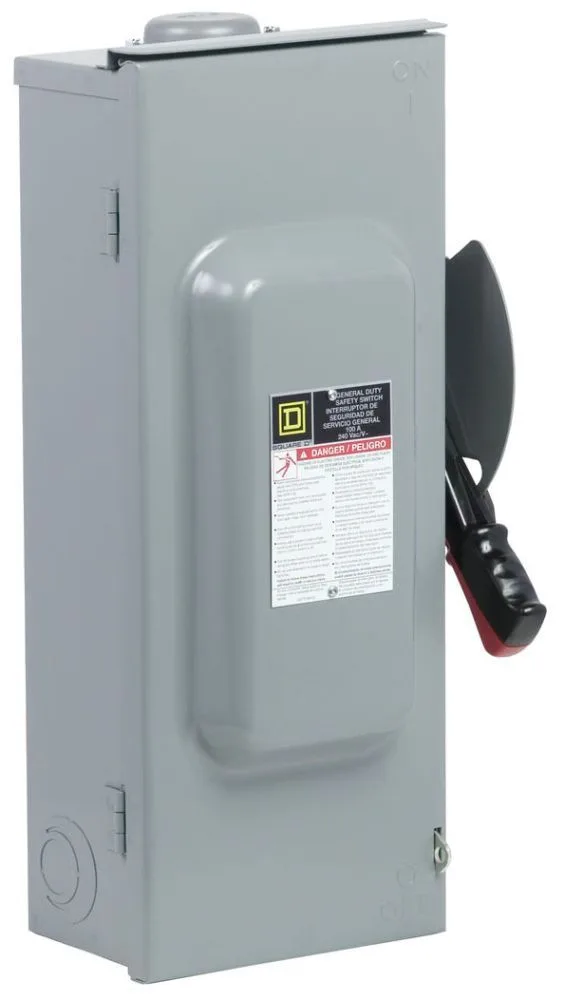

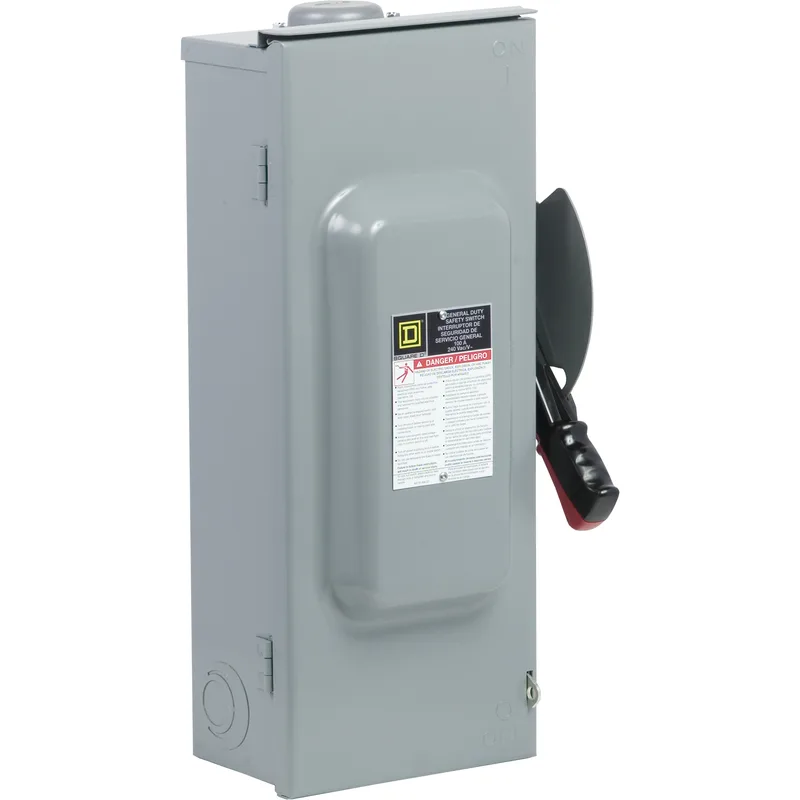

Square D CH323NRB Switch Fusible 240V 100A 3P Nema3R/Neutral|Square D CH323NRB Switch Fusible 240V 100A 3P Nema3R/Neutral
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface |
| Disconnect type | Fusible disconnect |
| Voltage rating | 240 V DC 250 V AC |
| Line rated current | 100 A |
| Standard motor power rating | 7.5 hp at 240 V AC 50-60 Hz for 1 phase motors 15 hp at 240 V AC 50...60 kHz for 3 phase motors 15 hp at 240 V AC 50...60 kHz for 1 phase motors 30 hp at 240 V AC 50...60 kHz for 3 phase motors 20 hp at 250 V DC |
| Poles | 3 |
| Duty rating | Heavy duty |
| IP rating | NEMA 3R galvannealed steel |
| Wire AWG | AWG 12...AWG 1/0 aluminium AWG 14...AWG 1/0 copper |
| Electrical connection | Lugs |
| Depth | 6.38 in (162.05 mm) |
| Width | 8.5 in (215.9 mm) |
| Height | 21.25 in (539.75 mm) |
| Certifications | CSA |
| Product | Single Throw Safety Switch |
| Category | US10DE100153 |
| Tightening torque | 50 lbf.in (5.6 N.m) (AWG 3...AWG 1) 45 lbf.in (5.08 N.m) (AWG 6...AWG 4) 40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8) 40 lbf.in (4.5 N.m) (AWG 8) 35 lbf.in (4.0 N.m) 0.003...0.008 in² (2.06...5.261 mm²) (AWG 14...AWG 10) 35 lbf.in (4.0 N.m) (AWG 14...AWG 10) |
| Factory installed neutral | Neutral (factory installed) |
MPN
CH323NRB
