Schneider Electric DF101N
MPNDF101N
Active

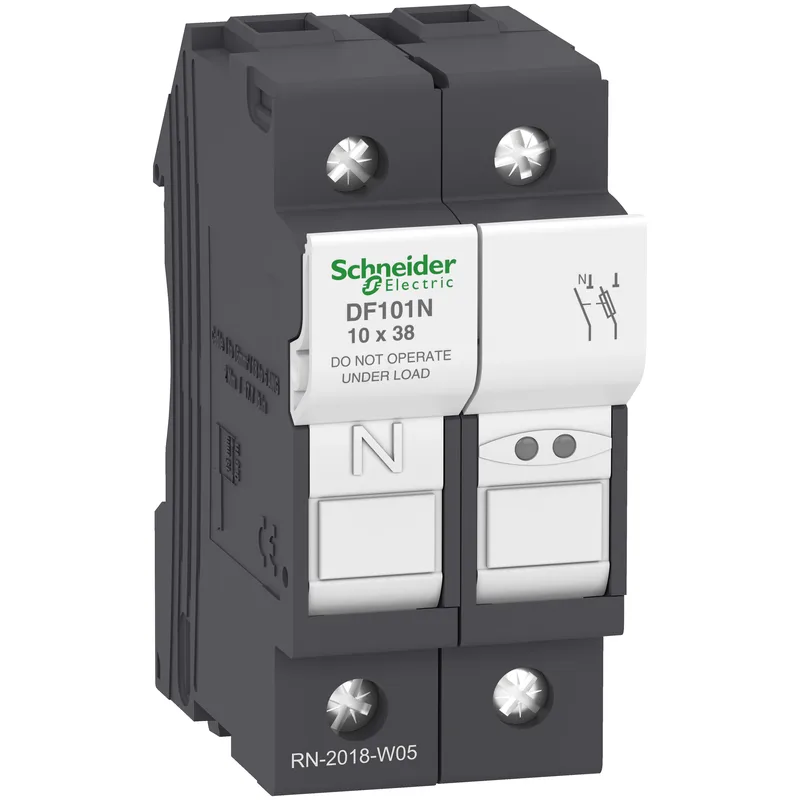

Square D DF101N Fuseholder 600V 30Amp 1/Npoles 10X28mm
$3.91Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse type | 0...32 A, aM 0...32 A, gG |
| Control type | Toggle padlockable |
| Product or component type | Fuse carrier |
| Short-circuit withstand | 120 kA 400 V IEC 60947-3 120 kA 500 V IEC 60947-3 |
| Voltage | 690 V AC |
| [Ue] rated operational voltage | 690 V AC 690 V DC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ie] rated operational current | 32 A 400 V AC |
| [Ith] conventional free air thermal current | 32 A 68 °F (20 °C) |
| Power dissipation in | 3 W maximum power dissipation by fuse |
| Poles description | 1P + N |
| Utilisation category | AC-20B IEC 60947-3 DC-20B IEC 60947-3 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 |
| Mounting support | 35 mm symmetrical DIN rail |
| Mounting position | Vertical +/- 23°) |
| Connections - terminals | screw clamp terminals 1 0.002...0.02 in² (1...16 mm²)rigid screw clamp terminals 2 0.002...0.009 in² (1...6 mm²)rigid screw clamp terminals 1 0.002...0.02 in² (1...16 mm²)flexible with or without screw clamp terminals 2 0.002...0.009 in² (1...6 mm²)flexible with or without |
| Pollution degree | 3 |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Depth | 2.4 in (61 mm) |
| Width | 1.4 in (35 mm) |
| Height | 3.1 in (79.5 mm) |
| Standards | EN/IEC 60947-3 EN/IEC 60269-2 UL 4248-1 CSA C22.2 No 4248-1 EN 45545-2: R22 HL2 |
| Range | TeSys |
| Category | US10CP121714 |
| Fuse size | 10 x 38 mm |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Quantity per set | Set of 6 |
| Device short name | DF10 |
| Tightening torque | 19.5 lbf.in (2.2 N.m) PZ2 19.5 lbf.in (2.2 N.m) flat Ø 5.5 mm |
| Compatibility code | DF10 |
| Device composition | tubular link locked in Neutral pole |
| Overvoltage category | III |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) with derating above 20°C |
