Schneider Electric DF221V

Schneider Electric DF221V

MPNDF221V
Obsolete

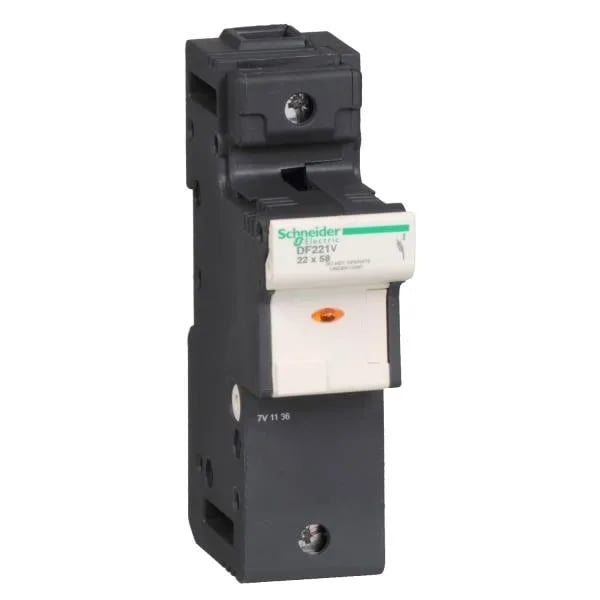

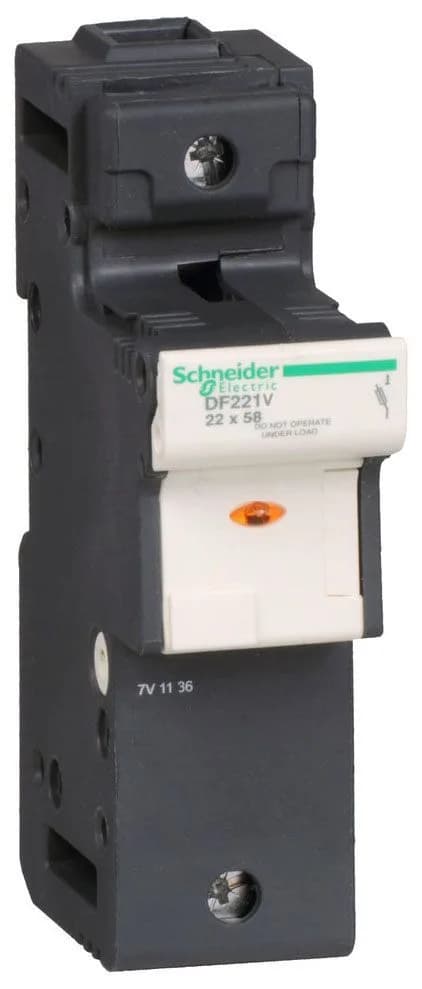

SQD DF221V FUSEHOLDER 600V 125AMP 1|SQD DF221V FUSEHOLDER 600V 125AMP 1 POLE 22X58MM

$30.48 – $54.59Ref. price · indicative, final on quote
Schneider Electric DF221V datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

DF221V key specifications
ParameterValue
Fuse type, gG , aM
Control typeToggle
Product or component typeFuse carrier
Short-circuit withstand120 kA 400 V IEC 60947-3 120 kA 500 V IEC 60947-3 80 kA 690 V IEC 60947-3
Voltage690 V AC
[Ue] rated operational voltage690 V AC 690 V DC
[Ipk] rated peak withstand current19 kA with tubular links IEC 60269-1
[Uimp] rated impulse withstand voltage8 kV
[Ie] rated operational current125 A
Poles description1P
IP degree of protectionIP20 conforming to IEC 60529
Mounting support35 mm symmetrical DIN rail

All specifications

DF221V additional specifications
ParameterValue
Mounting positionVertical +/- 23°)
Connections - terminalsscrew clamp terminals 1 0.004...0.05 in² (2.5...35 mm²)rigid screw clamp terminals 2 0.004...0.04 in² (2.5...25 mm²)rigid screw clamp terminals 1 0.004...0.05 in² (2.5...35 mm²)flexible with or without screw clamp terminals 2 0.004...0.04 in² (2.5...25 mm²)flexible with or without
Depth3.01 in (76.5 mm)
Width1.4 in (35 mm)
Height5.02 in (127.5 mm)
StandardsEN/IEC 60947-3 EN/IEC 60269-2 UL 4248-1 CSA C22.2 No 4248-1
RangeTeSys
CategoryUS10CP121714
Fuse size22 x 58 mm
Fire resistance1760 °F (960 °C) IEC 60695-2-1
Local signallingBlown fuse indication
Quantity per setSet of 6
Device short nameDF22
Tightening torque35.4 lbf.in (4 N.m)
Compatibility codeDF22
Protective treatmentTH
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C) with derating above 20°C
MPN
DF221V
