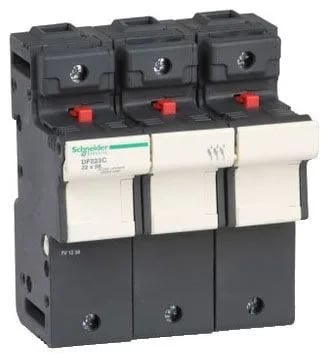

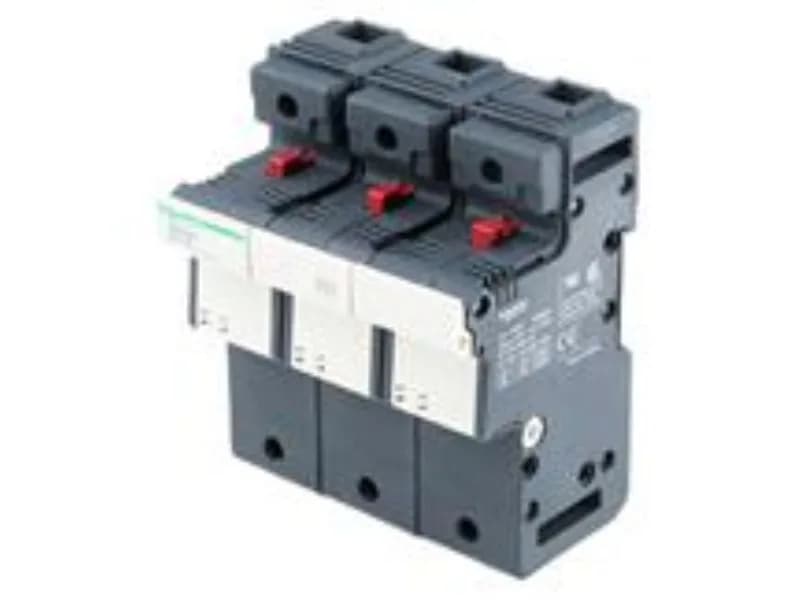

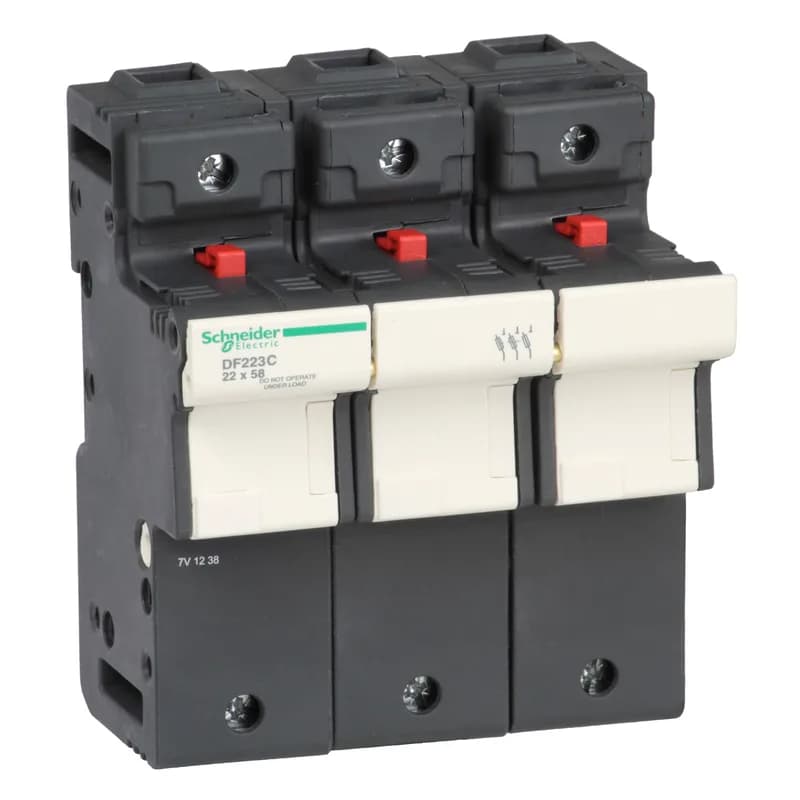

Schneider Electric DF223C

Schneider DF223C TeSys DF 3P Fuse Carrier, 125 A, 690 V

MPNDF223C
Active

Schneider Electric TeSys DF 3-pole fuse carrier, DF223C, rated 125 A at 690 V AC/DC, 22 x 58 mm fuse size, 120 kA SCCR at 400 V.

$26.75Ref. price · indicative, final on quote
Schneider Electric DF223C datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

DF223C key specifications
ParameterValue
Fuse type0...100 A, gG 0...125 A, aM
Control typeToggle
Product or component typeFuse carrier
Short-circuit withstand120 kA 400 V IEC 60947-3 120 kA 500 V IEC 60947-3 80 kA 690 V IEC 60947-3
Voltage690 V AC
[Ue] rated operational voltage690 V AC 690 V DC
[Ipk] rated peak withstand current19 kA with tubular links IEC 60269-1
[Uimp] rated impulse withstand voltage8 kV
[Ie] rated operational current125 A
Poles description3P
IP degree of protectionIP20 conforming to IEC 60529
Mounting support35 mm symmetrical DIN rail

All specifications

DF223C additional specifications
ParameterValue
Mounting positionVertical +/- 23°)
Connections - terminalsscrew clamp terminals 1 0.004...0.05 in² (2.5...35 mm²)rigid screw clamp terminals 2 0.004...0.04 in² (2.5...25 mm²)rigid screw clamp terminals 1 0.004...0.05 in² (2.5...35 mm²)flexible with or without screw clamp terminals 2 0.004...0.04 in² (2.5...25 mm²)flexible with or without
Depth3.01 in (76.5 mm)
Width4.1 in (105 mm)
Height5.02 in (127.5 mm)
StandardsEN/IEC 60947-3 EN/IEC 60269-2 UL 4248-1 CSA C22.2 No 4248-1
RangeTeSys
CategoryUS10CP121714
Fuse size22 x 58 mm
Fire resistance1760 °F (960 °C) IEC 60695-2-1
Quantity per setSet of 2
Device short nameDF22
Tightening torque35.4 lbf.in (4 N.m)
Compatibility codeDF22
Protective treatmentTH
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C) with derating above 20°C

Product details

Ratings that matter for coordination

The DF223C: The 120 kA short-circuit withstand at 400 V per IEC 60947-3 is the number to take into selectivity studies — it clears high fault currents when paired with gG fuse links up to 125 A or aM types. Rated impulse withstand is 8 kV, and the operational voltage covers both AC and DC circuits up to 690 V. Ambient derating starts above 20 °C; full 125 A is available up to that point.

Snaps onto 35 mm symmetrical DIN rail, vertical ±23° orientation allowed. Screw-clamp terminals accept 2.5 to 35 mm² solid or flexible (ferruled) conductors; tighten to 4 Nm. The IP20 finger-safe enclosure means it's serviceable without additional shrouding as long as the panel door is closed.

Compliance documentation

Meets EN/IEC 60947-3 for switch-disconnectors, EN/IEC 60269-2 for fuse bases, and UL 4248-1 / CSA C22.2 No 4248-1. Glow-wire tested to 960 °C per IEC 60695-2-1. RoHS and REACH declarations are available with the shipment.

Frequently asked questions

What is the depth of DF223C?

The listed depth is 3.01 inches (76.5 mm).

What range does the DF223C belong to?

It is part of the TeSys range from Schneider Electric.

What compliance documentation does Schneider provide for DF223C?

The holder is certified to EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, and CSA C22.2 No 4248-1. It also meets glow-wire test at 960 °C.
