DF223NVC
MPNDF223NVC
Active

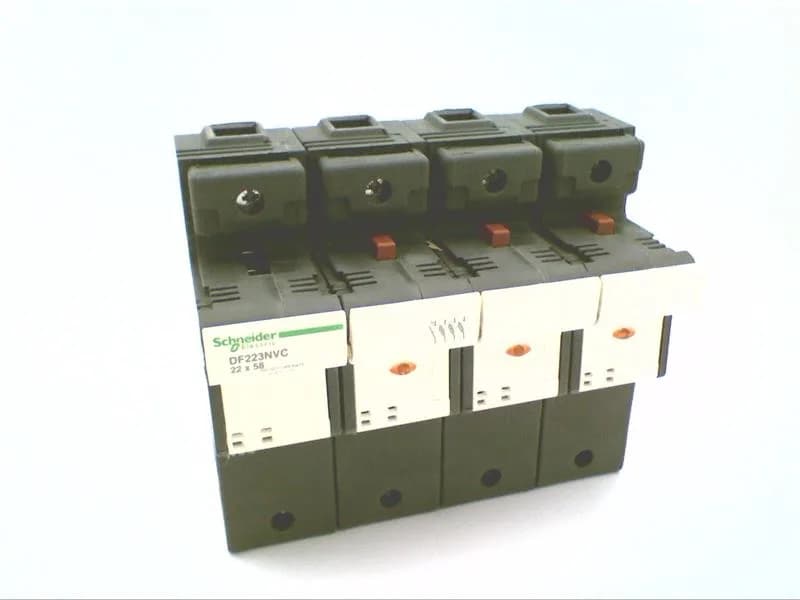

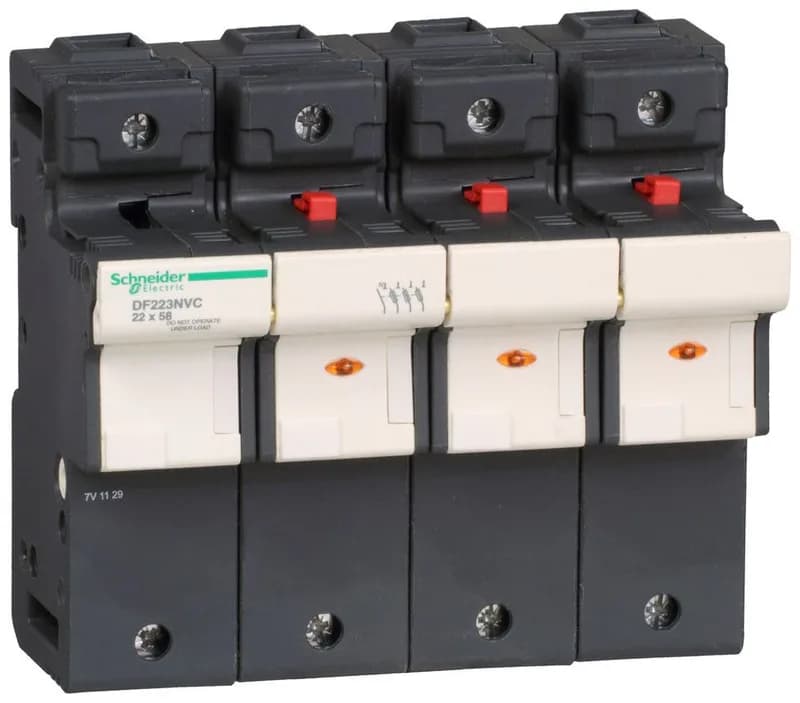

Square D DF223NVC Fuse Carrier|Square D DF223NVC Fuse Carrier
$36.83Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Fuse type | 0...100 A, gG 0...125 A, aM |
| Control type | Toggle |
| Product or component type | Fuse carrier |
| Short-circuit withstand | 120 kA 400 V IEC 60947-3 120 kA 500 V IEC 60947-3 80 kA 690 V IEC 60947-3 |
| Voltage | 690 V AC |
| [Ue] rated operational voltage | 690 V AC 690 V DC |
| [Ipk] rated peak withstand current | 19 kA with tubular links IEC 60269-1 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 125 A |
| Poles description | 3P + N |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting support | 35 mm symmetrical DIN rail |
All specifications
| Parameter | Value |
|---|---|
| Mounting position | Vertical +/- 23°) |
| Connections - terminals | screw clamp terminals 1 0.004...0.05 in² (2.5...35 mm²)rigid screw clamp terminals 2 0.004...0.04 in² (2.5...25 mm²)rigid screw clamp terminals 1 0.004...0.05 in² (2.5...35 mm²)flexible with or without screw clamp terminals 2 0.004...0.04 in² (2.5...25 mm²)flexible with or without |
| Depth | 3.01 in (76.5 mm) |
| Width | 5.5 in (140 mm) |
| Height | 5.02 in (127.5 mm) |
| Standards | EN/IEC 60947-3 EN/IEC 60269-2 UL 4248-1 CSA C22.2 No 4248-1 |
| Range | TeSys |
| Category | US10CP121714 |
| Fuse size | 22 x 58 mm |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Local signalling | Blown fuse indication |
| Quantity per set | Set of 1 |
| Device short name | DF22 |
| Tightening torque | 35.4 lbf.in (4 N.m) |
| Compatibility code | DF22 |
| Device composition | tubular link locked in Neutral pole |
| Protective treatment | TH |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) with derating above 20°C |
