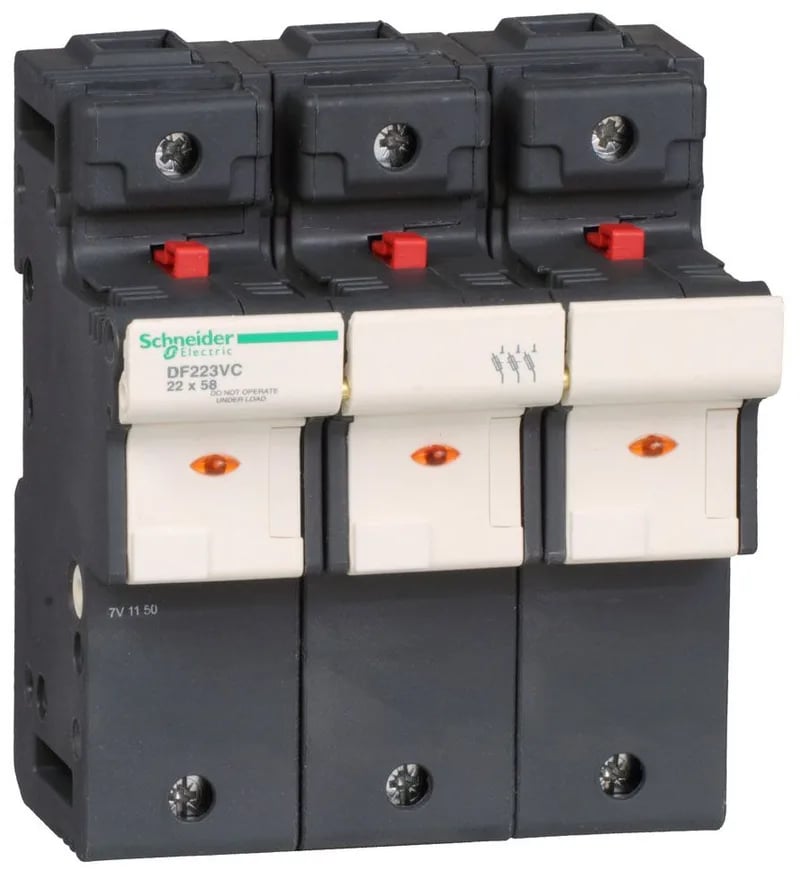

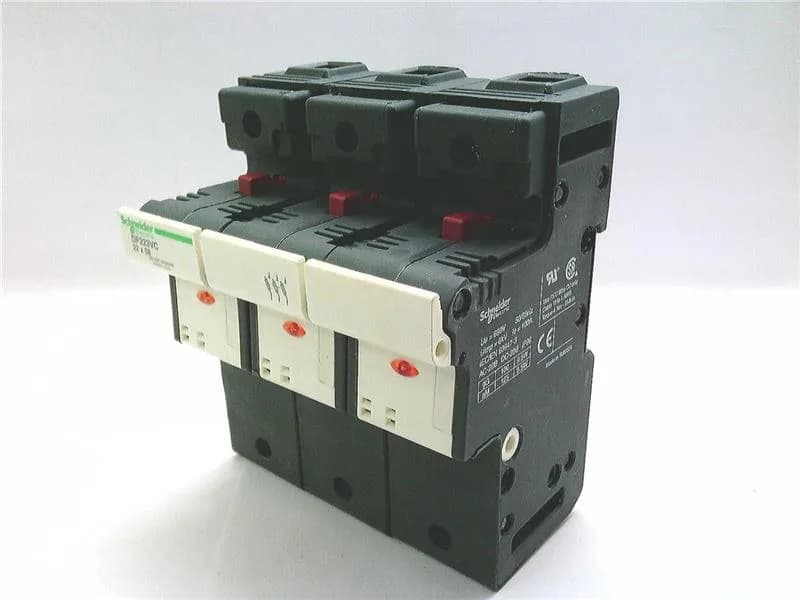

Square D DF223VC TeSys DF 3-Pole Fuse Carrier, 125 A Rated Current, 690 V AC/DC, 120 kA SCCR, Set of 2.
| Parameter | Value |
|---|---|
| Fuse type | 0...100 A, gG 0...125 A, aM |
| Control type | Toggle |
| Product or component type | Fuse carrier |
| Short-circuit withstand | 120 kA 400 V IEC 60947-3 120 kA 500 V IEC 60947-3 80 kA 690 V IEC 60947-3 |
| Voltage | 690 V AC |
| [Ue] rated operational voltage | 690 V AC 690 V DC |
| [Ipk] rated peak withstand current | 19 kA with tubular links IEC 60269-1 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 125 A |
| Poles description | 3P |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting support | 35 mm symmetrical DIN rail |
| Parameter | Value |
|---|---|
| Mounting position | Vertical +/- 23°) |
| Connections - terminals | screw clamp terminals 1 0.004...0.05 in² (2.5...35 mm²)rigid screw clamp terminals 2 0.004...0.04 in² (2.5...25 mm²)rigid screw clamp terminals 1 0.004...0.05 in² (2.5...35 mm²)flexible with or without screw clamp terminals 2 0.004...0.04 in² (2.5...25 mm²)flexible with or without |
| Depth | 3.01 in (76.5 mm) |
| Width | 4.1 in (105 mm) |
| Height | 5.02 in (127.5 mm) |
| Standards | EN/IEC 60947-3 EN/IEC 60269-2 UL 4248-1 CSA C22.2 No 4248-1 |
| Range | TeSys |
| Category | US10CP121714 |
| Fuse size | 22 x 58 mm |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Local signalling | Blown fuse indication |
| Quantity per set | Set of 2 |
| Device short name | DF22 |
| Tightening torque | 35.4 lbf.in (4 N.m) |
| Compatibility code | DF22 |
| Protective treatment | TH |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) with derating above 20°C |
The Square D DF223VC is an active-production TeSys DF 3-pole fuse carrier rated for 125 A continuous at 690 V AC or DC. It accepts 22 x 58 mm fuse links up to 125 A gG or 125 A aM, and ships as a set of two carriers. Short-circuit withstand reaches 120 kA at 400 V and 80 kA at 690 V. IP20 enclosure and TH tropicalization treatment suit indoor control panels in conditioned or high-humidity environments.
125 A rated current, 690 V AC/DC operational voltage, and 120 kA short-circuit withstand at 400 V.
Meets EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, and CSA C22.2 No 4248-1.
