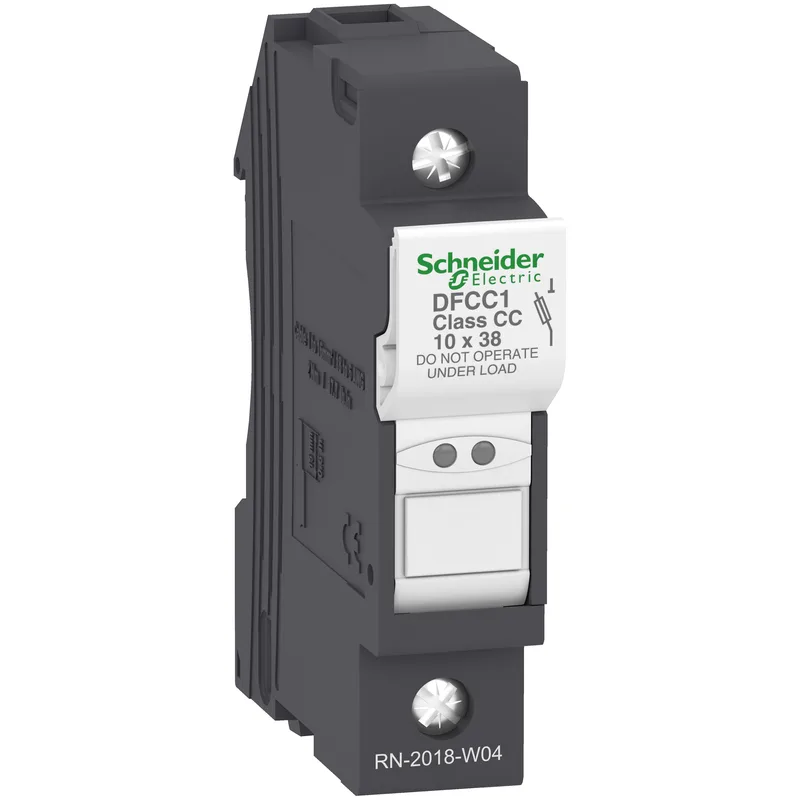

Schneider Electric DFCC1
MPNDFCC1
Active
FUSEHOLDER 600V 30AMP|SQD DFCC1 FUSEHOLDER 600V 30AMP
$4.83Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse type | , CC |
| Control type | Toggle padlockable |
| Product or component type | Fuse carrier |
| Short-circuit withstand | 200 kA 600 V UL 512 |
| Voltage | 600 V AC |
| [Ue] rated operational voltage | 600 V AC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ie] rated operational current | 30 A |
| Power dissipation in | 3 W maximum power dissipation by fuse |
| Poles description | 1P |
| Utilisation category | AC-20B IEC 60947-3 |
| IP degree of protection | IP20 |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | 35 mm symmetrical DIN rail |
| Mounting position | Vertical +/- 23°) |
| Connections - terminals | screw clamp terminals 1 0.002...0.02 in² (1...16 mm²)rigid screw clamp terminals 2 0.002...0.009 in² (1...6 mm²)rigid screw clamp terminals 1 0.002...0.02 in² (1...16 mm²)flexible with or without screw clamp terminals 2 0.002...0.009 in² (1...6 mm²)flexible with or without |
| Pollution degree | 3 |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating |
| Depth | 2.4 in (61 mm) |
| Width | 0.7 in (17.5 mm) |
| Height | 3.1 in (79.5 mm) |
| Standards | UL 4248-1 UL 4248-4 CSA C22.2 No 4248-1 CSA C22.2 No 4248-4 |
| Range | TeSys |
| Category | US10CP121714 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Quantity per set | Set of 12 |
| Device short name | DFCC |
| Tightening torque | 17.7 lbf.in (2 N.m) PZ2 17.7 lbf.in (2 N.m) flat Ø 5.5 mm |
| Compatibility code | DFCC |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) with derating above 20°C |
MPN
DFCC1
