Schneider Electric DPE25B7
MPNDPE25B7
Active

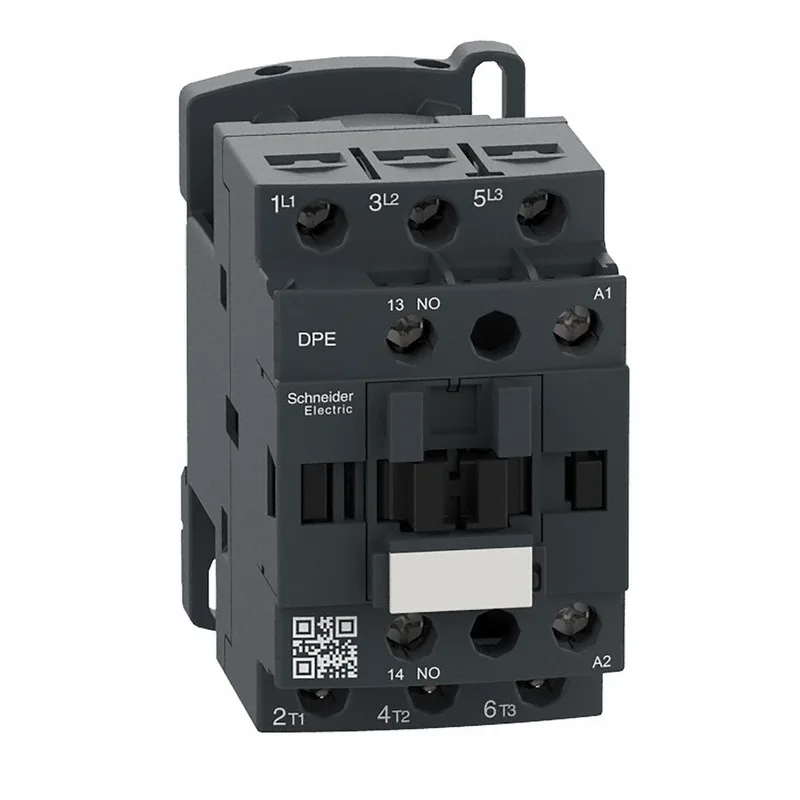

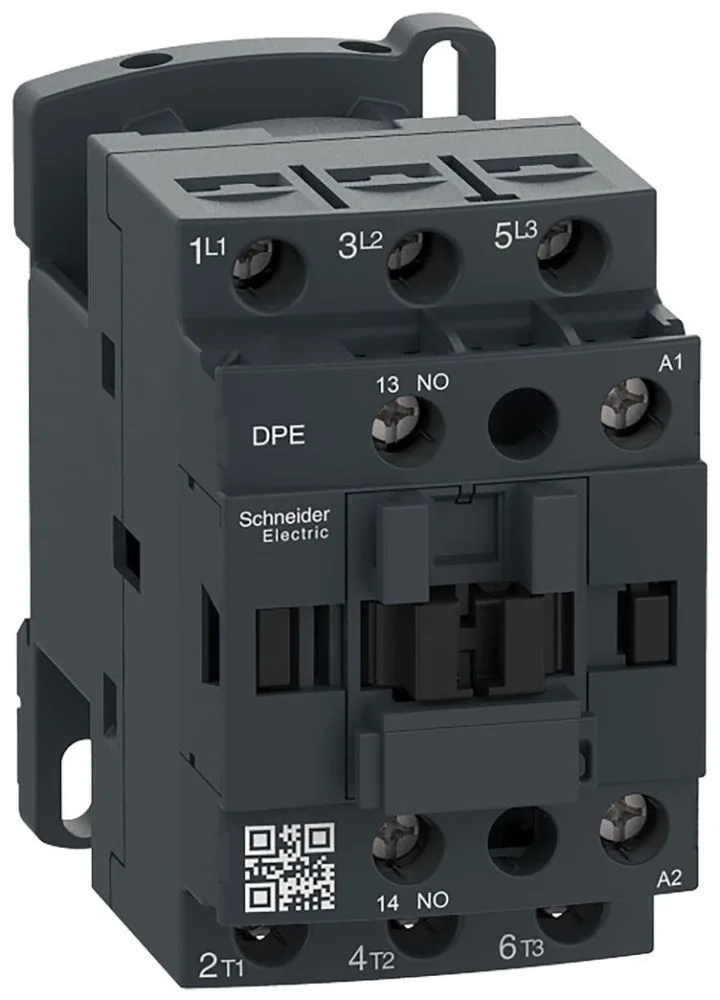

Square D DPE25B7 25A Iec Contactor|Square D DPE25B7 25A Iec Contactor
$45.39 – $59.25Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Contactor |
| [Ui] rated insulation voltage (Conforming to UL,CSA) | 600 V |
| [Ue] rated operational voltage (Conforming to UL,CSA) | 115 V single phase 230...240 V single phase 200...208 V 3-phase 230...240 V 3-phase 460...480 V 3-phase 575...600 V 3-phase |
| Continuous current (Conforming to UL,CSA) | 32 A |
| Motor power HP (Conforming to UL,CSA) | 1 hp at 115 V AC 50/60 Hz for 1 phase motors 3 hp at 230...240 V AC 50/60 Hz for 1 phase motors 5 hp at 200...208 V AC 50/60 Hz for 3 phase motors 5 hp at 230...240 V AC 50/60 Hz for 3 phase motors 10 hp at 460...480 V AC 50/60 Hz for 3 phase motors 15 hp at 575...600 V AC 50/60 Hz for 3 phase motors |
| Signalling circuit frequency | 25...400 Hz |
| Poles description | 3P |
| Pole contact composition | 3 NO |
| Utilisation category | AC-3 AC-1 AC-4 |
| Mounting support | Rail Plate |
| Connections - terminals | Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 0.002...0.009 in² (1.5...6 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 0.002...0.009 in² (1.5...6 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 0.002...0.009 in² (1...6 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 0.002...0.009 in² (1.5...6 mm²) - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 0.002...0.009 in² (1.5...6 mm²) - cable stiffness: solid without cable end |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
All specifications
| Parameter | Value |
|---|---|
| Depth | 3.4 in (86 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.03 in (77 mm) |
| Standards | UL 60947-1 UL 60947-4-1 CSA C22.2 No 60947-1 CSA C22.2 No 60947-4-1 EN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.4 GB/T 14048.5 |
| Flame resistance (Conforming to UL,CSA) | V1 conforming to UL 94 |
| Range | Easy TeSys |
| Category | US10I1322362 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Device short name | DPE |
| Tightening torque | Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 |
| Contactor application | Resistive load Motor control |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor open 10 Gn for 11 ms) Shocks contactor closed 15 Gn for 11 ms) |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...140 °F (-40...60 °C) |
