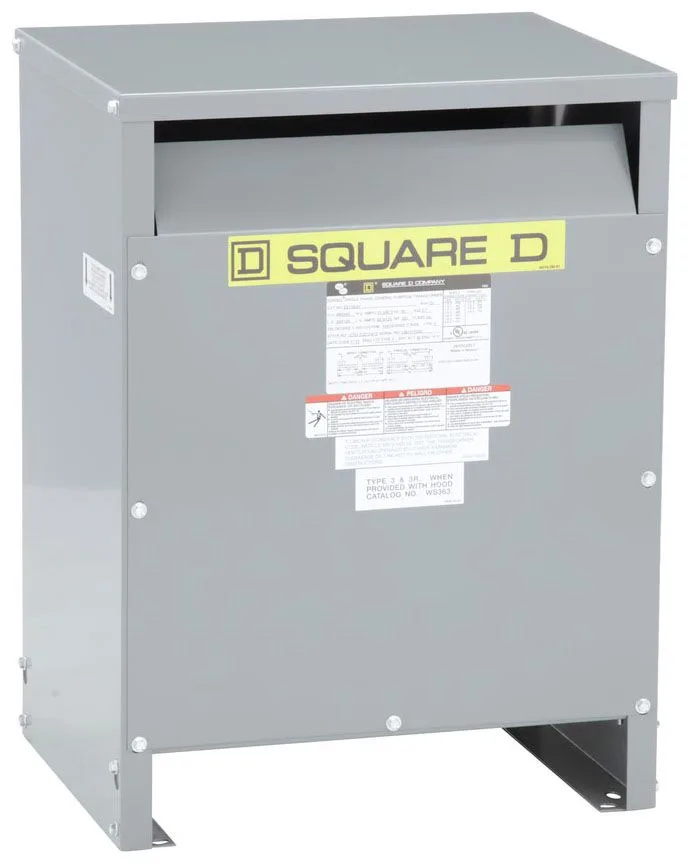

Schneider Electric EE15S3H
MPNEE15S3H
Active
TRFMR DRY 1PH 15KVA 240X480V-120/240V|Square D,TRFMR DRY 1PH 15KVA 240X480V-120/240V,1 phase,120/240VAC,15 kVA,150 Degrees C,220 ¦C,240 x 480VAC,Energy Efficient Transformer,Floor - Ceiling or Wall with mounting brackets Wall WMB361362 - Ceiling CMB363,NEMA 2,aluminium
$1,215.00 – $2,543.70Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Enclosure type | NEMA 2 |
| Primary voltage | 240 x 480 V |
| Secondary voltage | 120/240 V |
| Power rating | 15 kVA |
| Phases | 1 phase |
| Enclosure code | 17D |
| Depth | 16 in (406.4 mm) |
| Width | 20 in (508 mm) |
| Height | 27 in (685.8 mm) |
| Winding material | Aluminium |
| Product | Energy Efficient Transformer |
| Category | US1PE2E16284 |
| Temperature rise | 150 °C |
| Full capacity taps | 6 2.5 % 2+ 4- |
| Insulation temperature | 428 °F (220 °C) |
MPN
EE15S3H
