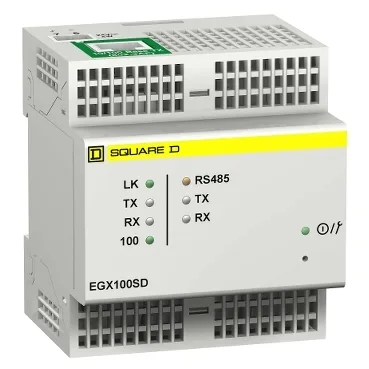

Schneider Electric EGX100
MPNEGX100
Obsolete
SEMS - Ethernet/field bus gateway
$1,757.97Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | By software |
| Range of product | SEMS Energy Awareness SEMS On-site SEMS Hosted |
| Product or component type | Gateway module |
| Communication network type | RS232/485, Modbus RTU and ASCII even/odd or none parity, at 38400/57600 bauds on SUB-D 9 RS232/485, PowerLogic (SY/MAX) even/odd or none parity, at 38400/57600 bauds on SUB-D 9 RS232/485, JBUS even/odd or none parity, at 38400/57600 bauds on SUB-D 9 Ethernet, HTTP on RJ45 Ethernet, Modbus TCP/IP on RJ45 Ethernet, FTP on RJ45 Ethernet, SNMP on RJ45 |
| Supply voltage | 24 V DC |
| Power consumption in | 4 W |
| IP degree of protection | IP30 |
| Communication gateway | Ethernet/fieldbus |
| Mounting mode | By clips |
| Mounting support | 35 mm DIN rail |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Depth | 65.8 mm |
All specifications
| Parameter | Value |
|---|---|
| Width | 72 mm |
| Height | 80.8 mm |
| Standards | EN 55022 UL 60950 AS/NZS 60950 EN 61000-4-8 EN 61000-4-5 EN 55011 EN 61000-4-2 EN 61000-4-6 EN 61000-4-4 EN 61000-4-3 EN 61000-6-2 EN/IEC 60950 |
| User language | French Spanish English German |
| Device short name | EGX100 |
| Device application | Gateway |
| Ambient air temperature for operation | -25...70 °C |
MPN
EGX100
