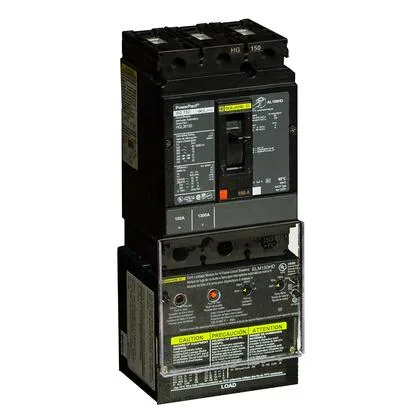

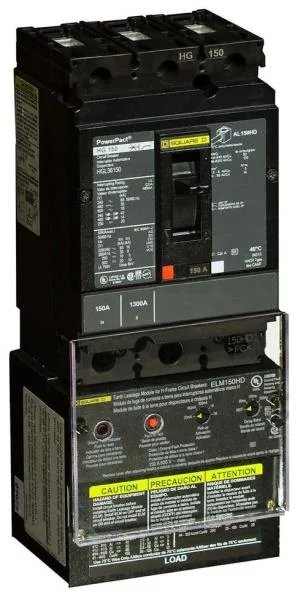

Schneider ELM150HD Earth Leakage Module
MPNELM150HD
Active
CIRCUIT BREAKER EARTH LEAKAGE MODULE|CIRCUIT BREAKER EARTH LEAKAGE MODULE
$1,057.91Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Range of product | PowerPact |
| Circuit breaker type | HJ HG HL HD |
| Product or component type | Earth leakage add-on block |
| [Ue] rated operational voltage | 240...600 V |
| Line rated current | 15...150 A |
| Electrical connection to MCB | Plug in |
| Category | US10DE200916 |
| Local signalling | Trip indicator |
| Tightening torque | 79.7 lbf.in (9 N.m) 0.004...0.08 in² (2.5...50 mm²) (AWG 14...AWG 1/0) 79.7 lbf.in (9 N.m) 0.004...0.08 in² (2.5...50 mm²) (AWG 12...AWG 1/0) 39.8 lbf.in (4.5 N.m) 0.004...0.08 in² (2.5...50 mm²) (AWG 12...AWG 10) 150.5 lbf.in (17 N.m) 0.08...0.2 in² (50...120 mm²) (AWG 4...AWG 1) |
| Earth-leakage sensitivity | 1000 mA 30 mA 3000 mA 300 mA 100 mA |
| Earth-leakage protection time delay | 500 ms Instantaneous |
MPN
ELM150HD
