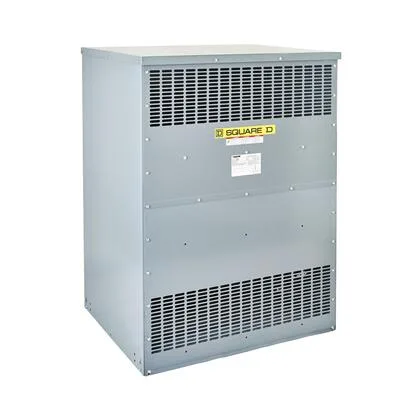

Schneider EX500T68H Dry-Type Transformer
MPNEX500T68H
Active
TRANSFORMER DRY TYPE 500KVVA 480D208Y|TRANSFORMER DRY TYPE 500KVVA 480D208Y
$24,524.79Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Natural convection |
| Range of product | Square D |
| Transformer type | Energy efficient |
| Product or component type | Transformer |
| Primary voltage | 480 V delta |
| Secondary voltage | 208Y/120 V |
| Let through current | 28.2 kA |
| Rated operational power in | 500 kVA |
| Network frequency | 60 Hz |
| Phases | 3 phase |
| IP rating | UL type 1 UL type 2, with 7400DS30J UL type 3R, with 7400WS30J |
| Mounting support | Floor Floor, with 7400FMB |
All specifications
| Parameter | Value |
|---|---|
| Electrical connection | 4 Hole Nema Pad primary 0.4 in (11.1 mm) 6 Hole Nema Pad secondary 0.4 in (11.1 mm) 8 Hole Nema Pad sec - XO 0.4 in (11.1 mm) |
| Depth | 37.9 in (963 mm) |
| Width | 48.3 in (1226 mm) |
| Height | 71.0 in (1803 mm) |
| Coil material | Aluminium |
| Standards | UL 1561 CSA C22.2 No 47 NEMA ST-20 |
| %IX | 0.0474 % |
| %IZ | 0.049 % |
| Category | US1PE2X16252 |
| X (R ratio) | 3.58 |
| Box number | 30J |
| Sound level | 6 dB NEMA ST-20 56 dB |
| DOE efficiency | 99.24 % at 35 % load factor , 167 °F (75.0 °C) |
| Temperature rise | 150 °C 220 °C insulated |
| Device short name | DOE 2016 |
| Device application | Low voltage electrical distribution |
| Number of tap-offs | 2 2.5 % FCAN 2 2.5 % FCBN |
| Transformer BTU (HR) | 2915.122749427384 16.6 % 3704.0933998749997 25 % 7937.4953275 50 % 14993.165206874999 75 % 24871.103037999997 100 % |
| Transformer losses | 672.0 no load (core loss) 6617.0 load loss (coil loss) |
| Basic IMP level | 10 kV |
| Ambient air temperature for operation | 104 °F (40 °C) |
| Average ambient air temperature for operation | 30 °C |
MPN
EX500T68H
